Data Sheet
AD8541/AD8542/AD8544
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. H | 8 of 18

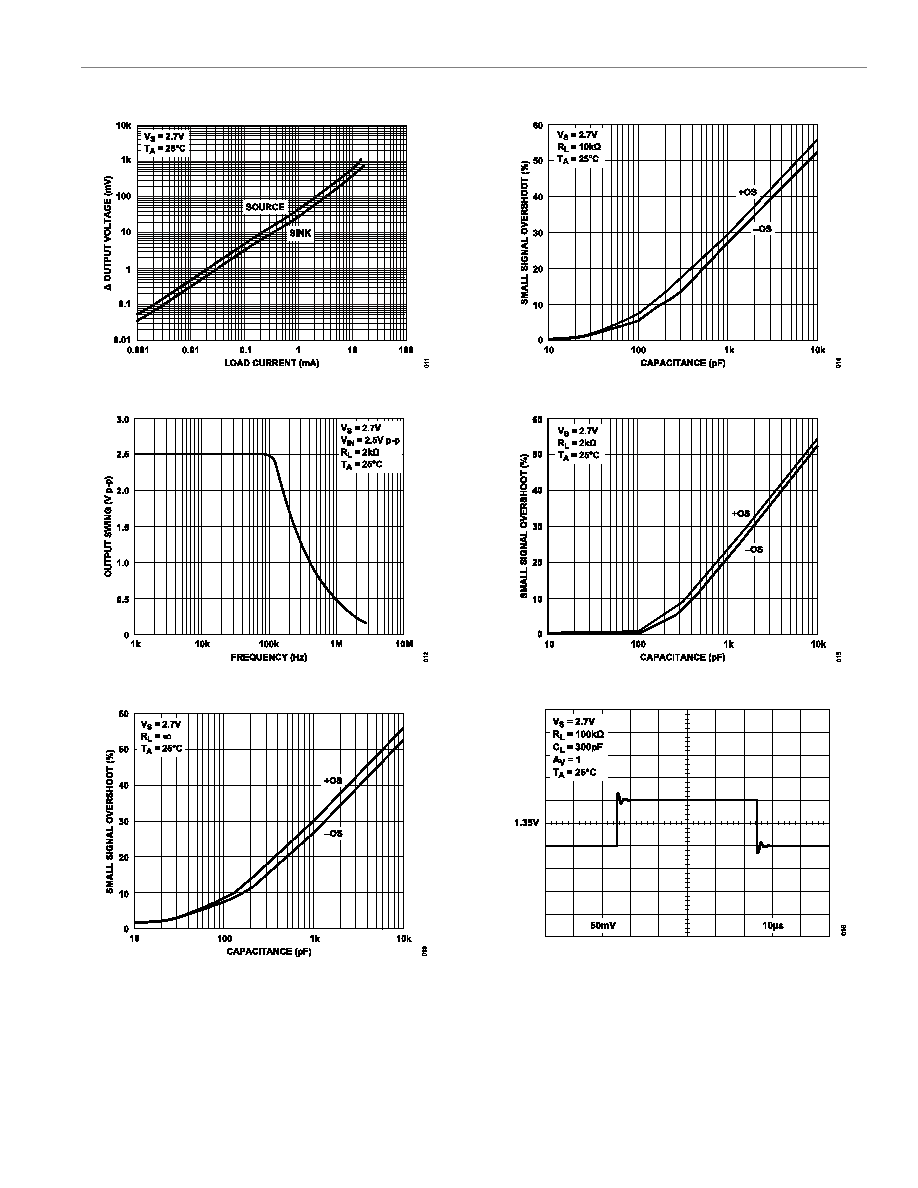

Figure 11. Output Voltage to Supply Rail vs. Load Current
Figure 12. Closed-Loop Output Voltage Swing vs. Frequency
Figure 13. Small Signal Overshoot vs. Load Capacitance
Figure 14. Small Signal Overshoot vs. Load Capacitance
Figure 15. Small Signal Overshoot vs. Load Capacitance
Figure 16. Small Signal Transient Response
