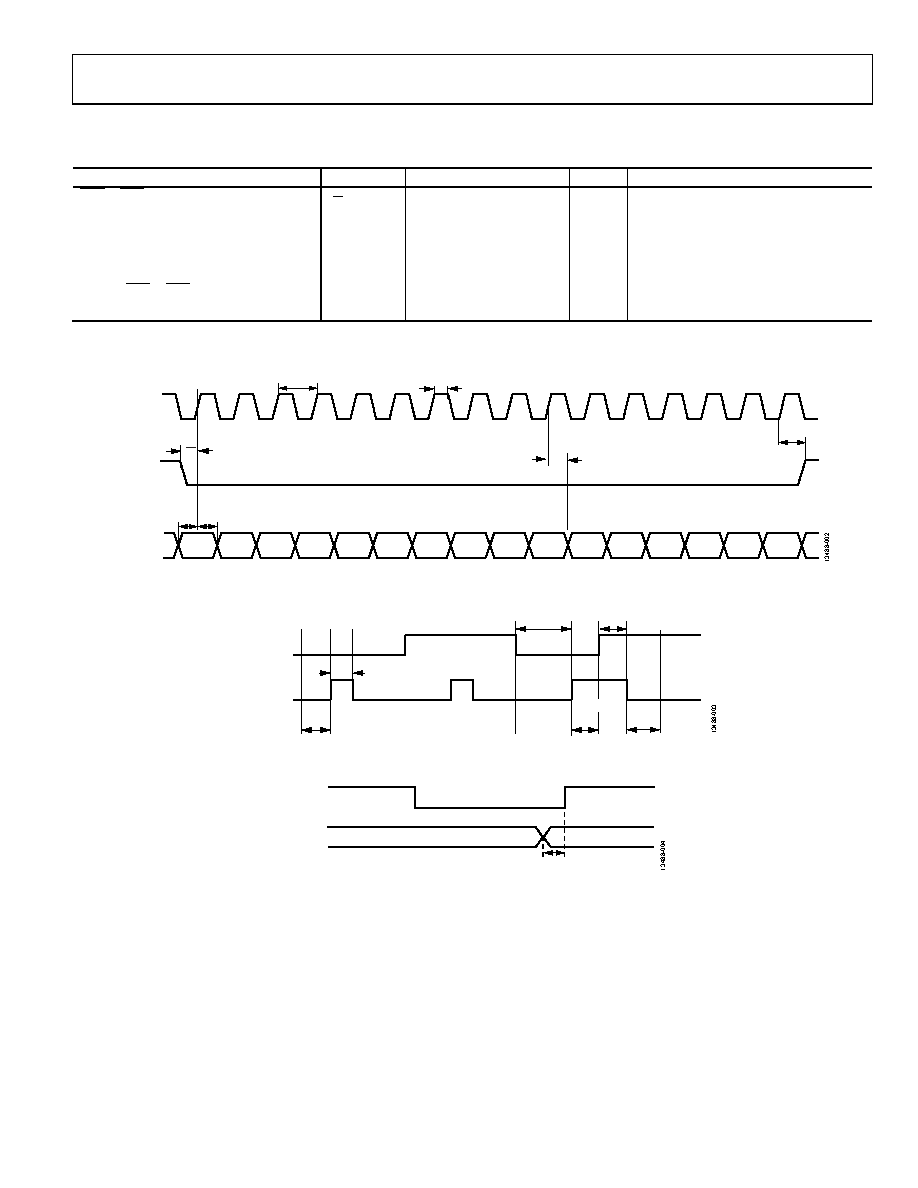

5 / 31 page  Data Sheet ADL5205 Rev. A | Page 5 of 31 TIMING SPECIFICATIONS Table 2. SPI Timing Parameters Parameter Symbol Min Typ Max Unit Test Conditions/Comments CSA or CSB to SCLK Setup Time t CS 20 ns SDIO to SCLK Setup Time tDS 10 ns SCLK to SDIO Hold Time tDH 10 ns SCLK Pulse Width tPW 25 ns SCLK Cycle Time tSCLK 50 ns SCLK to CSA or CSB Setup Time tCH 10 ns SCLK to SDIO Output Valid Delay tDV 20 ns During readback Timing Diagrams SCLK ___ ___ CSA, CSB SDIO tSCLK tCS tDS tDH tPW tCH DNC DNC DNC DNC DNC DNC DNC R/W FA1 FA0 D5 D4 D3 D2 D1 D0 tDV Figure 2. SPI Interface Read/Write Mode Timing Diagram UPDN_DAT_x UPDN_CLK_x UP tPW tDS tDH tDH tDS tDS DOWN RESET Figure 3. Up/Down Gain Control Timing Diagram LATCHA, LATCHB A5 TO A0 B5 TO B0 tDH Figure 4. Parallel Mode Timing Diagram |
|
