Data Sheet

ADA4077-1/ADA4077-2/ADA4077-4

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

analog.com

Rev. F | 9 of 25

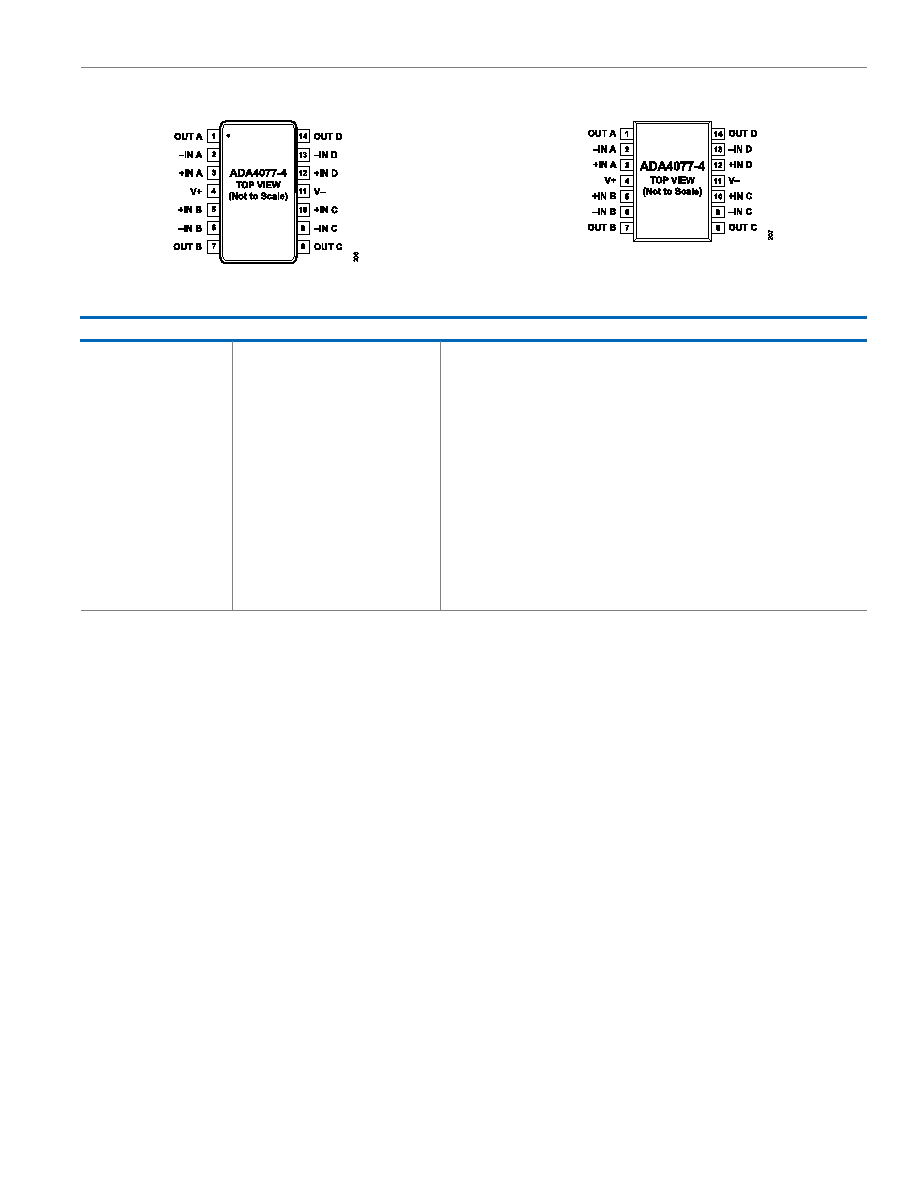

Figure 8. ADA4077-4 Pin Configuration, 14-Lead TSSOP

Figure 9. ADA4077-4 Pin Configuration, 14-Lead SOIC

Table 8. ADA4077-4 Pin Function Descriptions, 14-Lead TSSOP and 14-Lead SOIC

Pin No.

Mnemonic

Description

1

OUT A

Output Channel A.

2

−IN A

Negative Input Channel A.

3

+IN A

Positive Input Channel A.

4

V+

Positive Supply Voltage.

5

+IN B

Positive Input Channel B.

6

−IN B

Negative Input Channel B.

7

OUT B

Output Channel B.

8

OUT C

Output Channel C.

9

−IN C

Negative Input Channel C.

10

+IN C

Positive Input Channel C.

11

V−

Negative Supply Voltage.

12

+IN D

Positive Input Channel D.

13

−IN D

Negative Input Channel D.

14

OUT D

Output Channel D.
