Data Sheet
ADA4530-1
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. C | 20 of 52
MAIN AMPLIFIER, AC PERFORMANCE
VSY = 4.5 V to 16 V, data taken at VSY = 10 V, TA = 25°C, unless otherwise noted.

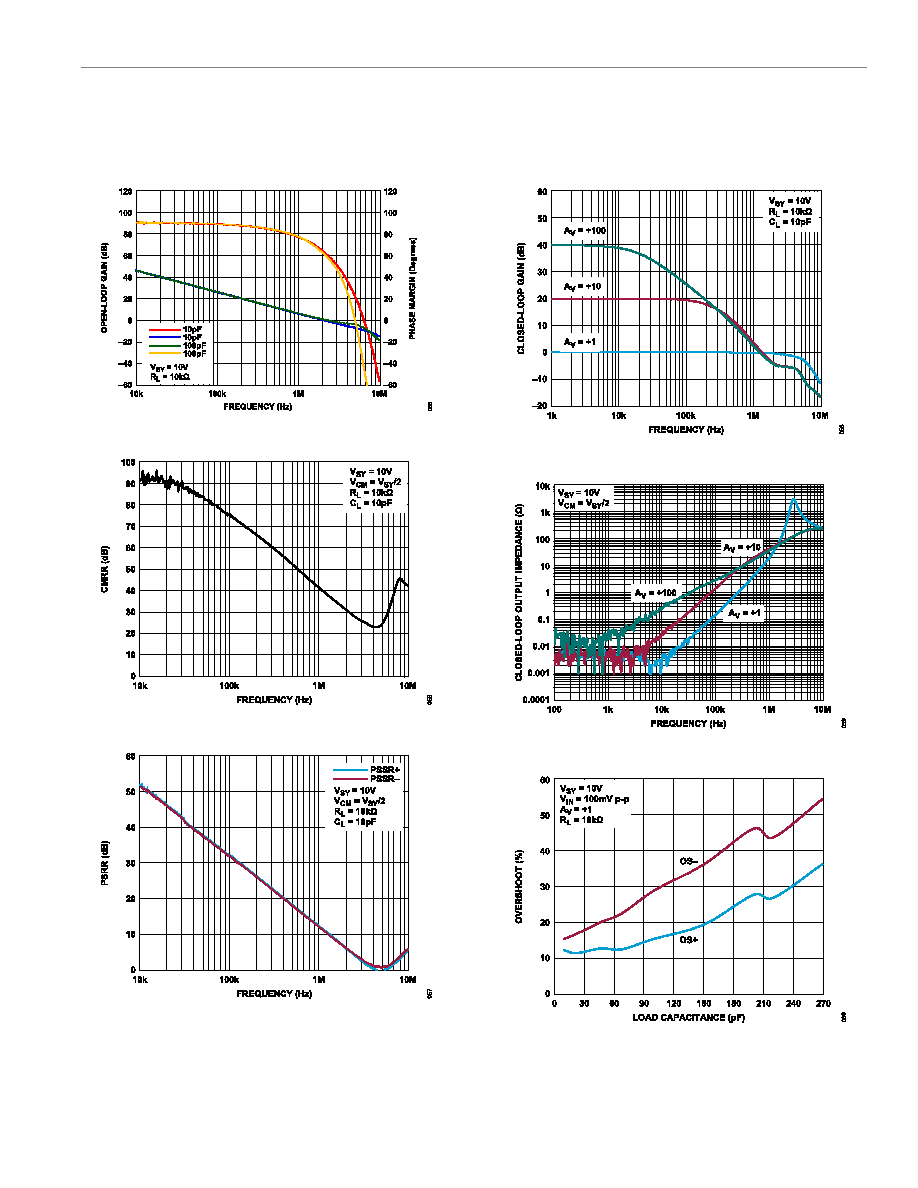

Figure 55. Open-Loop Gain and Phase Margin vs. Frequency
Figure 56. CMRR vs. Frequency
Figure 57. PSRR vs. Frequency
Figure 58. Closed-Loop Gain vs. Frequency
Figure 59. Closed-Loop Output Impedance vs. Frequency
Figure 60. Small Signal Overshoot vs. Load Capacitance
