Data Sheet

ADA4932-1/ADA4932-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. F | 9 of 27

TA = 25°C, +VS = 5 V, −VS = −5 V, VOCM = 0 V, RG = 499 Ω, RF = 499 Ω, RT = 53.6 Ω (when used), RL, dm = 1 kΩ, unless otherwise noted. Refer

to Figure 51 for test setup. Refer to Figure 54 for signal definitions.

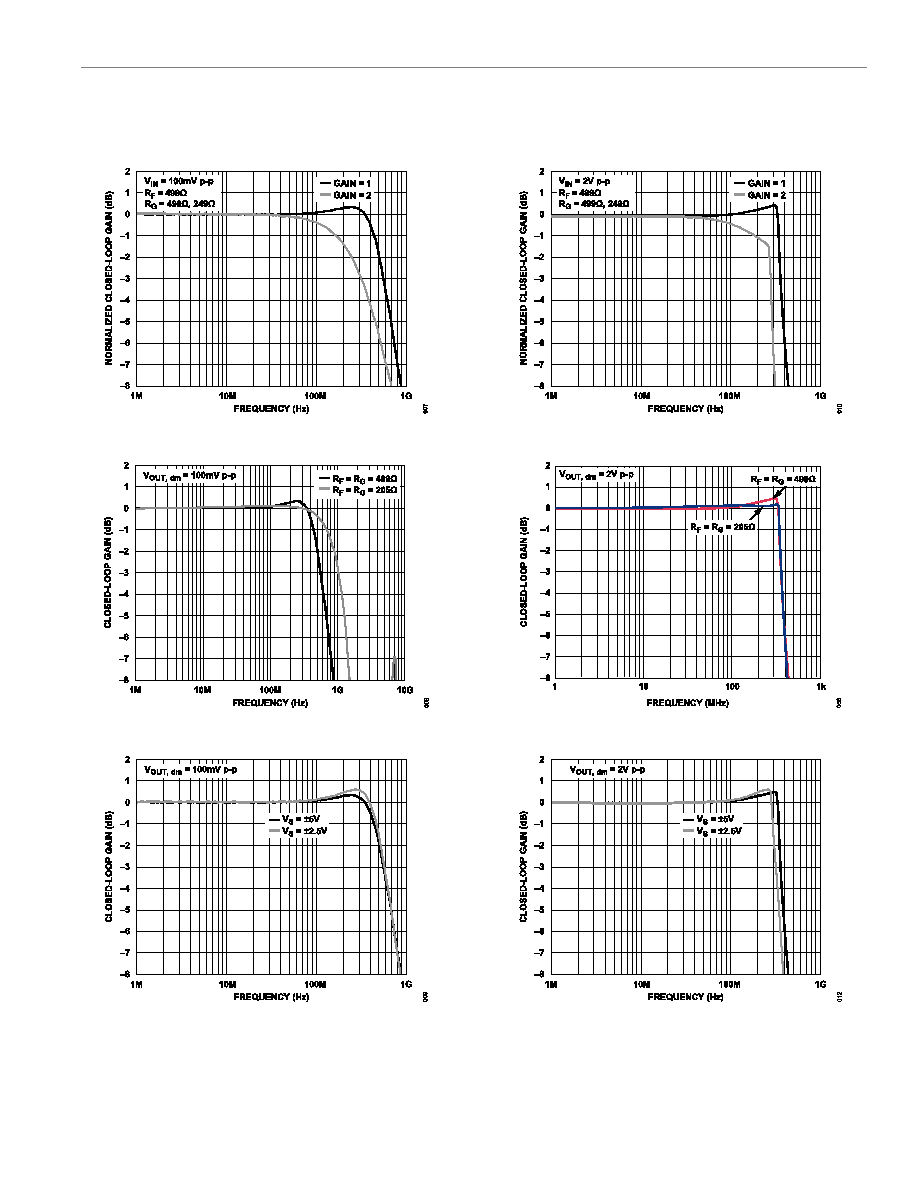

Figure 6. Small Signal Frequency Response for Various Gains

Figure 7. Small Signal Frequency Response for Various RF and RG

Figure 8. Small Signal Frequency Response for Various Supplies

Figure 9. Large Signal Frequency Response for Various Gains

Figure 10. Large Signal Frequency Response for Various RF and RG

Figure 11. Large Signal Frequency Response for Various Supplies
