ADA4500-2

Data Sheet

Rev. B | Page 8 of 24

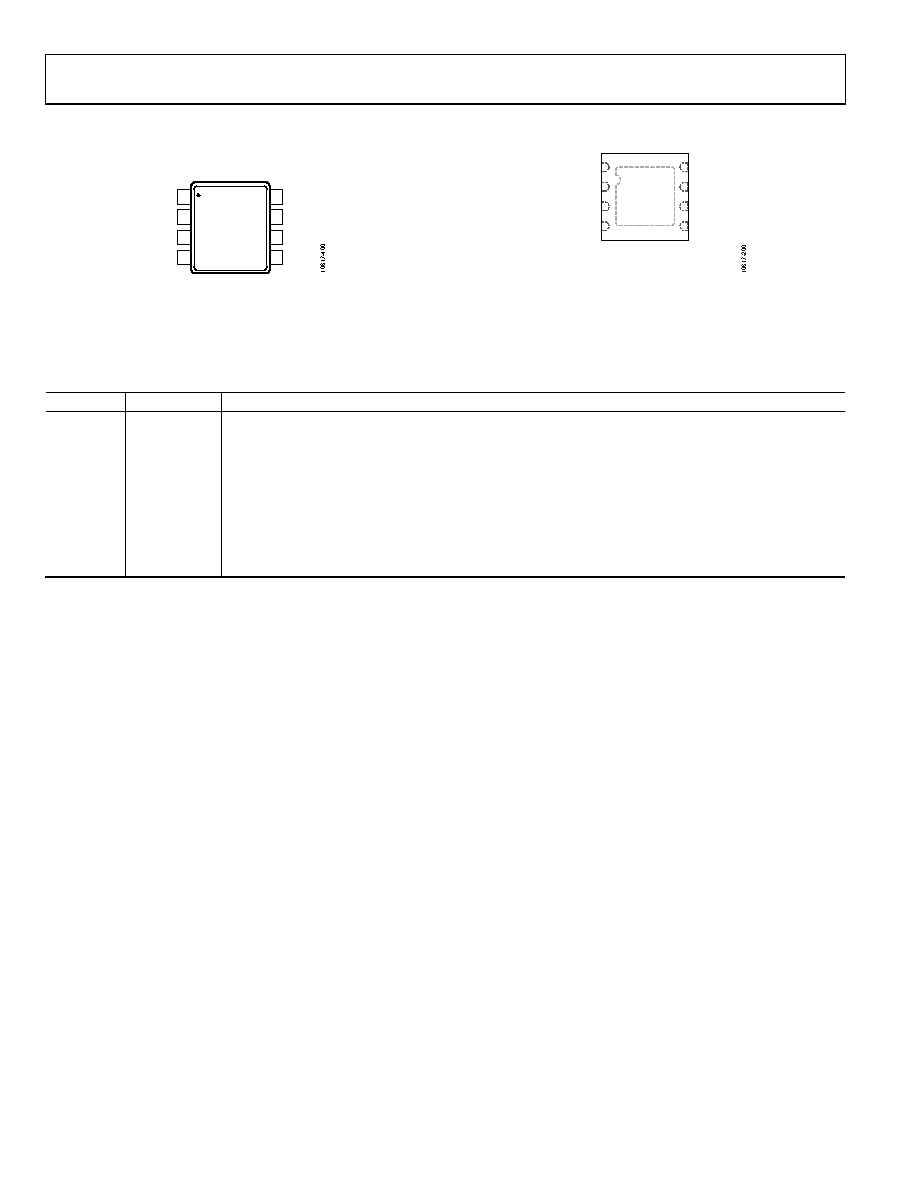

PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

OUT A 1

–IN A 2

+IN A 3

V– 4

V+

8

OUT B

7

–IN B

6

+IN B

5

ADA4500-2

TOP VIEW

(Not to Scale)

Figure 3. 8-Lead MSOP Pin Configuration

3

+IN A

4

V–

1

OUT A

2

–IN A

6 –IN B

5+IN B

8V+

7OUT B

ADA4500-2

TOP VIEW

(Not to Scale)

NOTES

1. CONNECT THE EXPOSED PAD TO V–

OR LEAVE IT UNCONNECTED.

Figure 4. 8-Lead LFCSP Pin Configuration

Table 5. 8-Lead MSOP and 8-Lead LFCSP Pin Function Descriptions

Pin No.

Mnemonic

Description

1

OUT A

Output, Channel A.

2

−IN A

Inverting Input, Channel A.

3

+IN A

Noninverting Input, Channel A.

4

V−

Negative Supply Voltage.

5

+IN B

Noninverting Input, Channel B.

6

−IN B

Inverting Input, Channel B.

7

OUT B

Output, Channel B.

8

V+

Positive Supply Voltage.

EPAD

For the LFCSP package only, connect the exposed pad to V− or leave it unconnected.
