PA2423L
RangeCharger
TM 2.4 GHz Power Amplifier IC
Final
13-DST-01 Rev 4.0 Jun-14-2006
2 of 10
QA061406

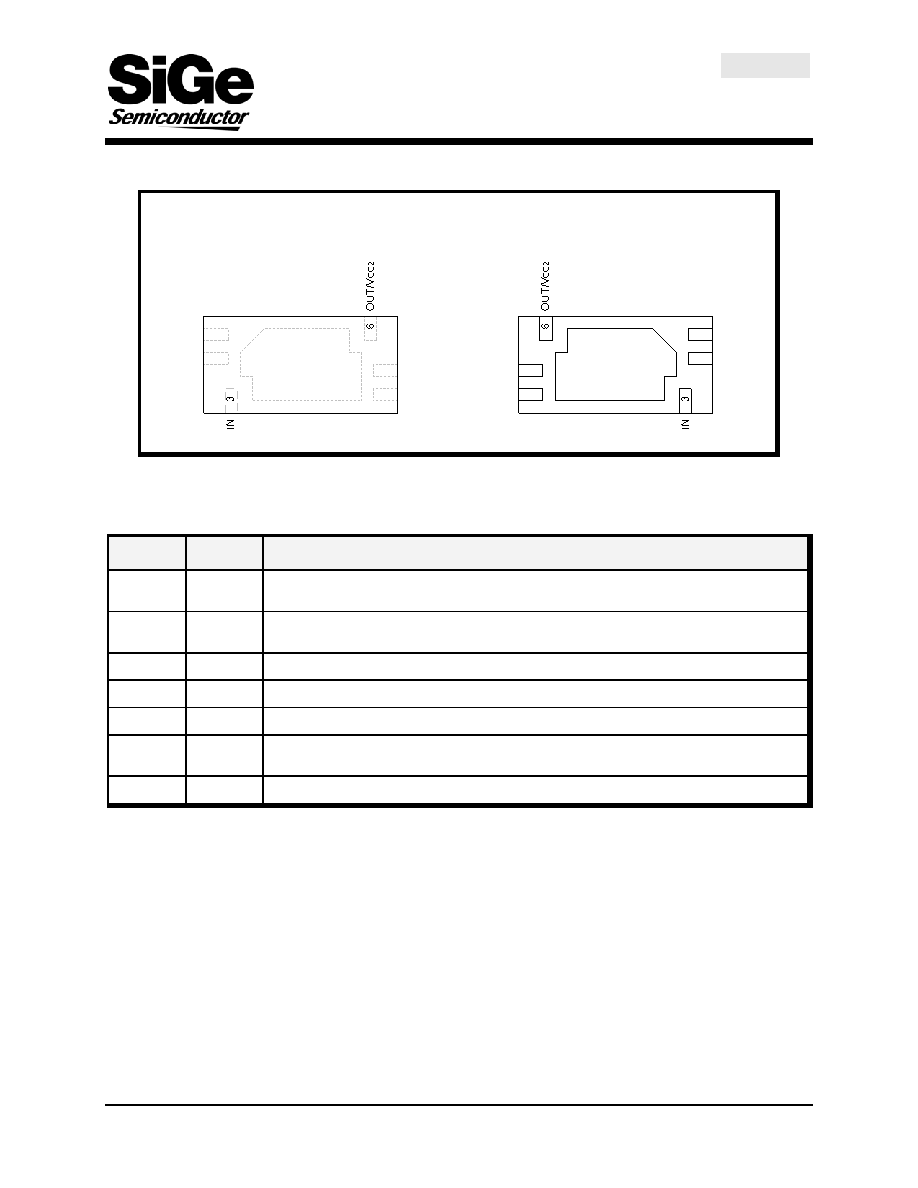

Pin Out Diagram
4
5
2
1
Die Pad
VCTL
VRAMP
VCC0
VCC1
PA2423L
Bottom View
4
5
2
1
VCTL
VRAMP
VCC0
VCC1
PA2423L
Top View
Figure 2: PA2423L Pin-Out Diagram
Pin Out Description
Pin No.
Name
Description
1
VCTL
Controls the output level of the power amplifier. An analog control signal between 0V
and VCC varies the PA output power between minimum and maximum values
2
VRAMP
Power Amplifier Enable pin. A digital control signal with logic high (power up) and logic
low (power down) is used to turn the device on and off.
3
IN
Power amplifier RF input, external input matching network with DC blocking is required
4
VCC0
Bias supply voltage
5
VCC1
Stage 1 collector supply voltage, external inter-stage matching network is required
6
OUT/VCC2
PA Output and Stage2 collector supply voltage, external output matching network with
DC blocking is required
Die Pad
GND
Heatslug Die Pad is ground
