Temperature Controller

E5C2

I-7

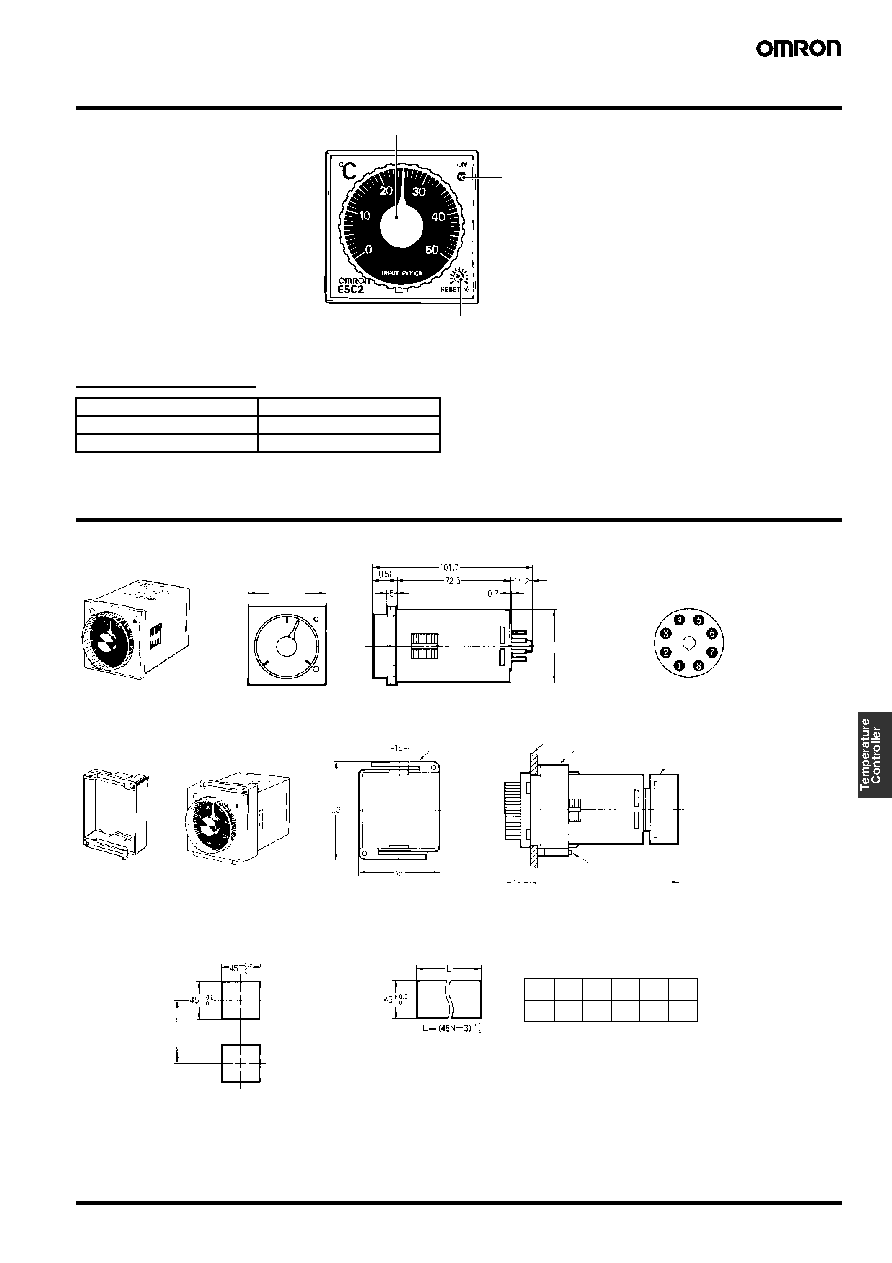

Nomenclature

Operation Indicator

Dimensions

Note: All units are in millimeters unless otherwise indicated.

Temperature setting knob

Operation indicator

RESET adjustment shaft

No reset function is incorporated by any

E5C2 model with ON/OFF control.

Indicator

Output

Red

Lit

ON

Not lit

OFF

93

+1

0

141

+1

0

189

+1

0

237

+1

0

285

+1

0

N

2

3

456

L

48 x 48

44.8 x 44.8

Panel Cutout

Note: 1. Recommended panel thickness is 1 to 4 mm.

2. Close side-by-side mounting is possible (in a single direction).

Panel

Y92F-30 Flush-mounting adapter

Tightening screw

(96) (see note)

Note: 109 mm for US08 Back Connecting Socket

Terminal Arrangement

(Bottom View)

Dimensions with Flush-mounting Adapter (Accessory),

and Back Connecting Socket (Sold Separately)

Flush-mounting

adapter

P3G-08 Back con-

necting socket

Side-by-side Mounting

of N Controllers

60 min.
