AD8211

Rev. 0 | Page 8 of 16

TIME (1µs/DIV)

200mV/DIV

OUTPUT

2V/DIV

INPUT

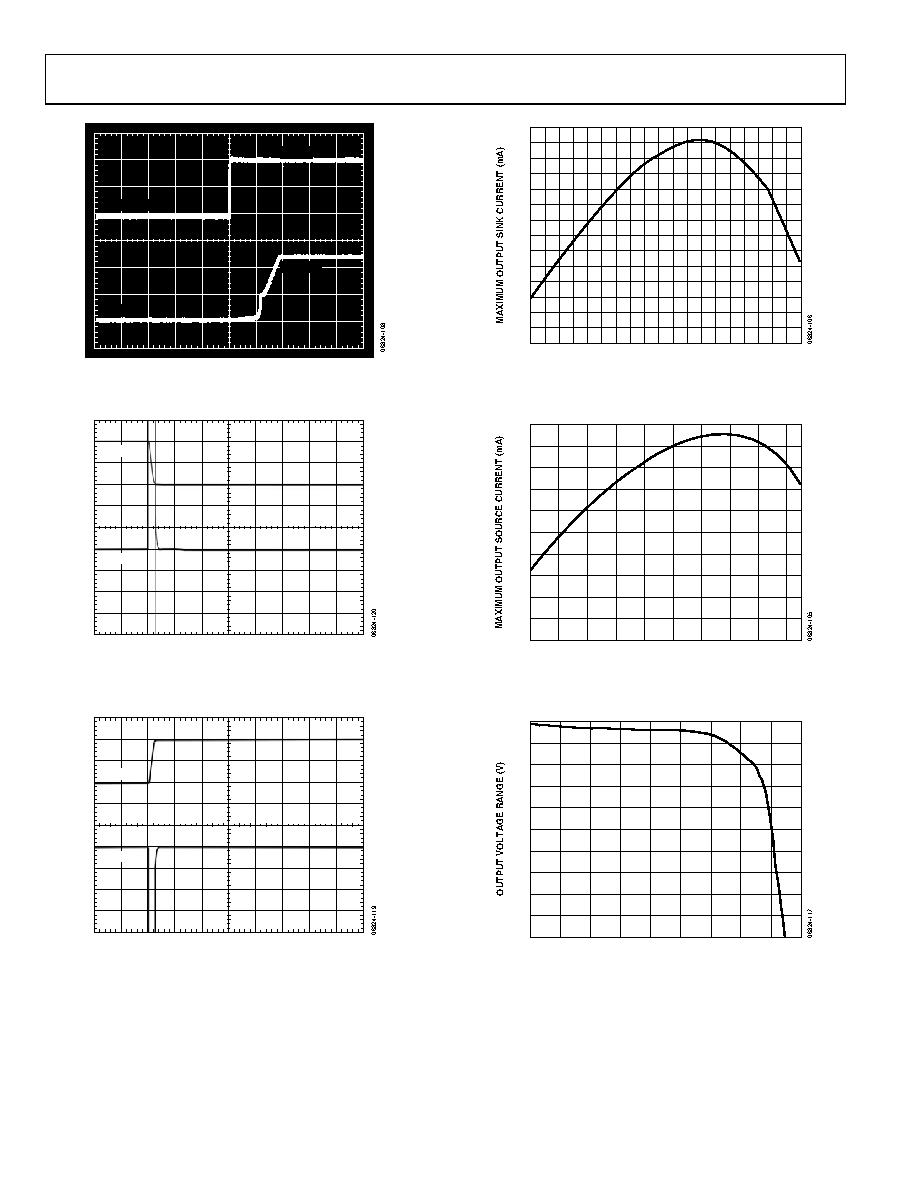

Figure 16. Differential Overload Recovery (Rising)

TIME 5µs/DIV)

2V/DIV

0.01/DIV

Figure 17. Settling Time (Falling)

TIME 5µs/DIV)

2V/DIV

0.01/DIV

Figure 18. Settling Time (Rising)

12.0

5.0

–40

TEMPERATURE (°C)

–20

0

20

40

60

80

100

120

140

–30

–10

10

30

50

70

90

110

130

150

8.5

8.0

7.5

7.0

6.5

11.0

11.5

10.5

10.0

9.5

9.0

6.0

5.5

Figure 19. Maximum Output Sink Current vs. Temperature

9.0

4.0

–40

TEMPERATURE (°C)

–20

0

20

40

60

80

100

120

140

8.5

8.0

7.5

7.0

6.5

6.0

5.5

5.0

4.5

Figure 20. Maximum Output Source Current vs. Temperature

5.0

1.0

0

OUTPUT SOURCE CURRENT (mA)

9

4.6

4.2

3.8

3.4

3.0

2.6

2.2

1.8

1.4

12

345

67

8

Figure 21. Output Voltage Range vs. Output Source Current
