Data Sheet
ADL8106
THEORY OF OPERATION
analog.com
Rev. B | 22 of 26
The ADL8106 is a wideband GaAs, pHEMT, low noise amplifier with
integrated decoupling components. Figure 87 shows a simplified
block diagram. The drain current is set by the negative voltage
applied to the VGG1 pin. The drain bias voltage is applied through
the VDD1 and VDD2 pins with the current split evenly between
the two pins. Bias inductors and 0.1 μF and 100 pF decoupling
capacitors are integrated.
The RFIN and RFOUT pins are ac-coupled and matched to 50 Ω.
However, if these pins are connecting to devices with bias levels
that are not equal to 0 V, externally ac-couple the RFIN and RFOUT
pins.

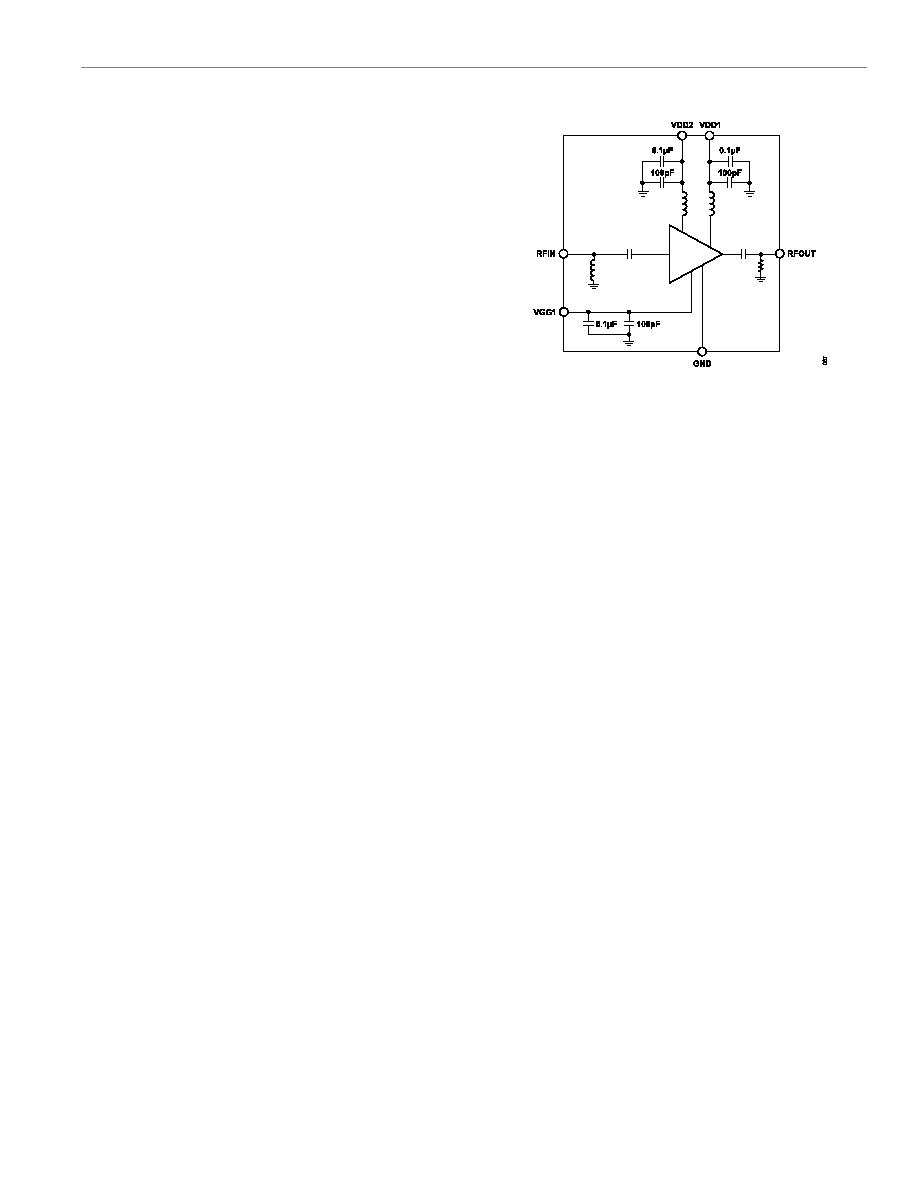

Figure 87. Simplified Block Diagram
