Data Sheet

ADL5961

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 13 of 34

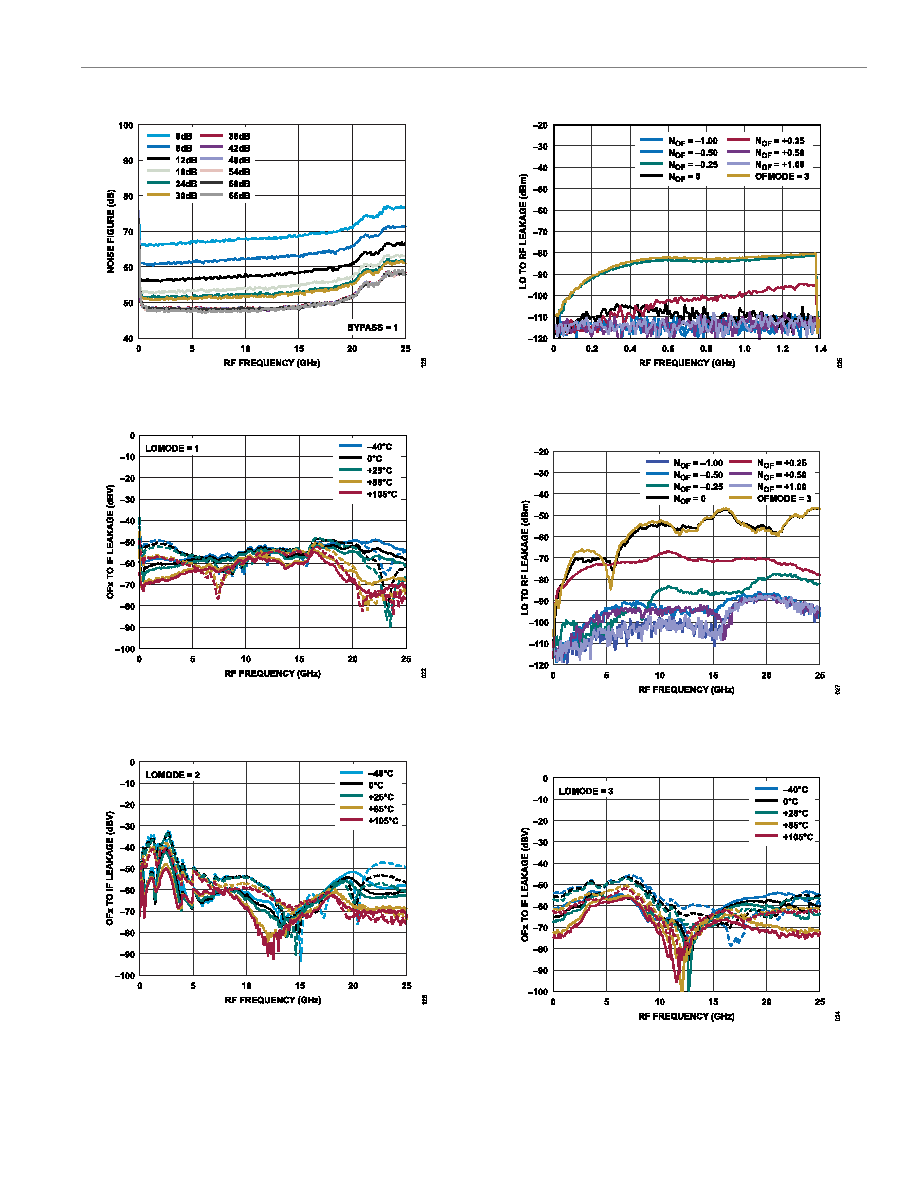

Figure 26. Noise Figure vs. RF Frequency for

Various IF Gain Settings, BYPASS = 1

Figure 27. OFx to IF Leakage vs. RF Frequency for Various Temperatures,

LOMODE = 1, OFMODE = 2, Solid Lines: Forward Channel, and Dashed

Lines: Reverse Channel

Figure 28. OFx to IF Leakage vs. RF Frequency for Various Temperatures,

LOMODE = 2, OFMODE = 2, Solid Lines: Forward Channel, and Dashed

Lines: Reverse Channel

Figure 29. LO to RF Leakage vs. RF Frequency for LOMODE = 0,

Measurement Frequency = fRF + NOF × fOF for OFMODE = 2 and fRF + fIF

for OFMODE = 3

Figure 30. LO to RF Leakage vs. RF Frequency for LOMODE = 1,

Measurement Frequency = fRF + NOF × fOF for OFMODE = 2 and fRF + fIF

for OFMODE = 3

Figure 31. OFx to IF Leakage vs. RF Frequency at Various Temperatures,

LOMODE = 3, OFMODE = 2, Solid Lines: Forward Channel, Dashed Lines:

Reverse Channel
