PS21661-RZ 데이터시트(PDF) 5 Page - Mitsubishi Electric Semiconductor

부품명 PS21661-RZ
상세설명  AC100V~200V, three-phase inverter drive for small power motor control.
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  MITSUBISHI [Mitsubishi Electric Semiconductor]
홈페이지  http://www.mitsubishichips.com
Logo MITSUBISHI - Mitsubishi Electric Semiconductor

PS21661-RZ 데이터시트(HTML) 5 Page - Mitsubishi Electric Semiconductor

  PS21661-RZ Datasheet HTML 1Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 2Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 3Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 4Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 5Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 6Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 7Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 8Page - Mitsubishi Electric Semiconductor PS21661-RZ Datasheet HTML 9Page - Mitsubishi Electric Semiconductor Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 10 page
background image
MITSUBISHI SEMICONDUCTOR <Single-In-Line Package Intelligent Power Module>
PS21661-RZ/FR
TRANSFER-MOLD TYPE
INSULATED TYPE
Mar. 2004
Fo
CIN
UP
UN
VN1
VUFB
U(VUFS)
VP
VN
VN1
VVFB
V(VVFS)
WP
WN
VN1
VNC
VWFB
W(VWFS)
SIP-IPM
HO
LO
VNO
COM
PIN
NIN
FO
CIN
VB
VS
VCC
P
N
HO
LO
VNO
COM
PIN
NIN
FO
CIN
VB
VS
VCC
HO
LO
VNO
COM
PIN
NIN
FO
CIN
VB
VS
VCC

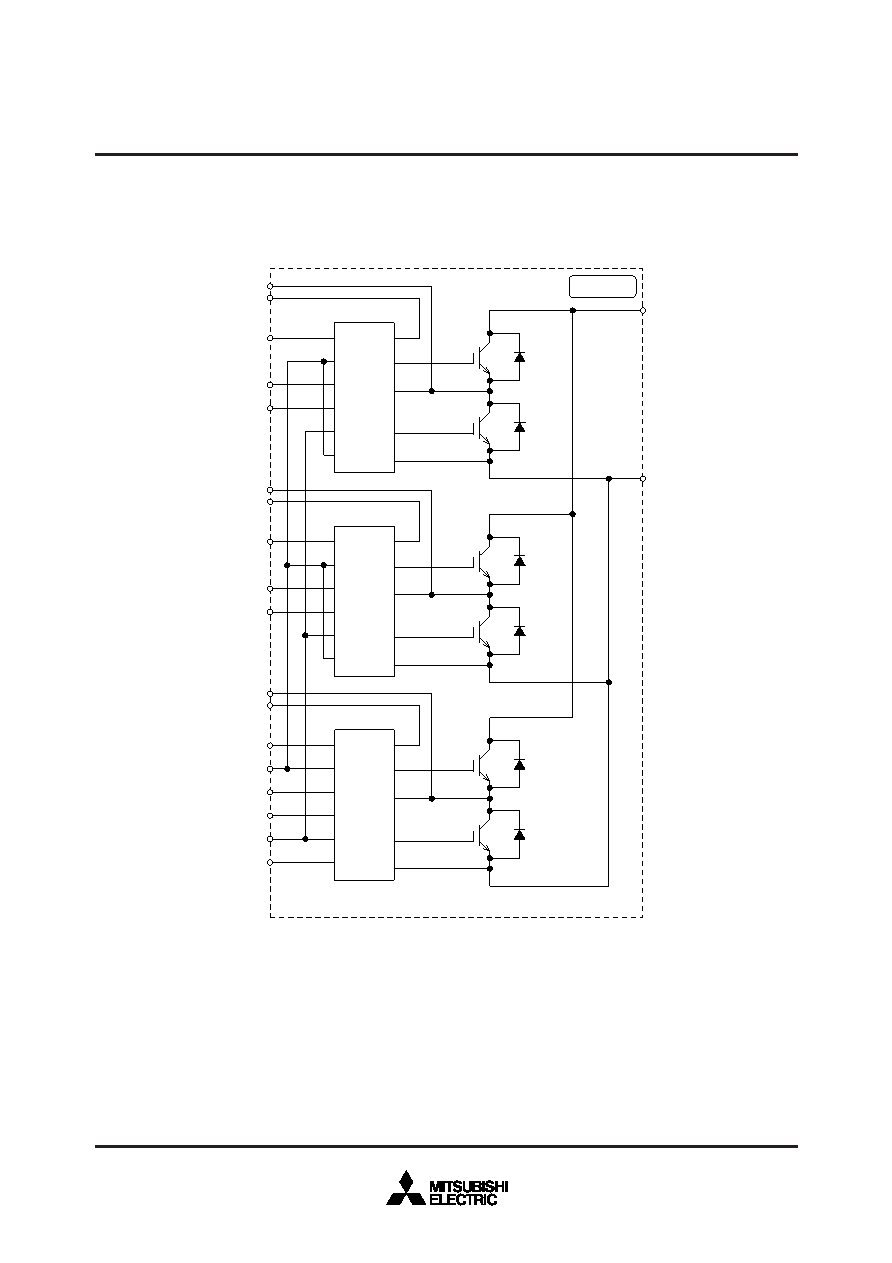

Fig. 3 THE SIP-IPM INTERNAL CIRCUIT
