STTH12010TV2 데이터시트(PDF) 1 Page - STMicroelectronics

부품명 STTH12010TV2
상세설명  Ultrafast recovery - high voltage diode
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STTH12010TV2 데이터시트(HTML) 1 Page - STMicroelectronics

  STTH12010TV2 Datasheet HTML 1Page - STMicroelectronics STTH12010TV2 Datasheet HTML 2Page - STMicroelectronics STTH12010TV2 Datasheet HTML 3Page - STMicroelectronics STTH12010TV2 Datasheet HTML 4Page - STMicroelectronics STTH12010TV2 Datasheet HTML 5Page - STMicroelectronics STTH12010TV2 Datasheet HTML 6Page - STMicroelectronics STTH12010TV2 Datasheet HTML 7Page - STMicroelectronics STTH12010TV2 Datasheet HTML 8Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out

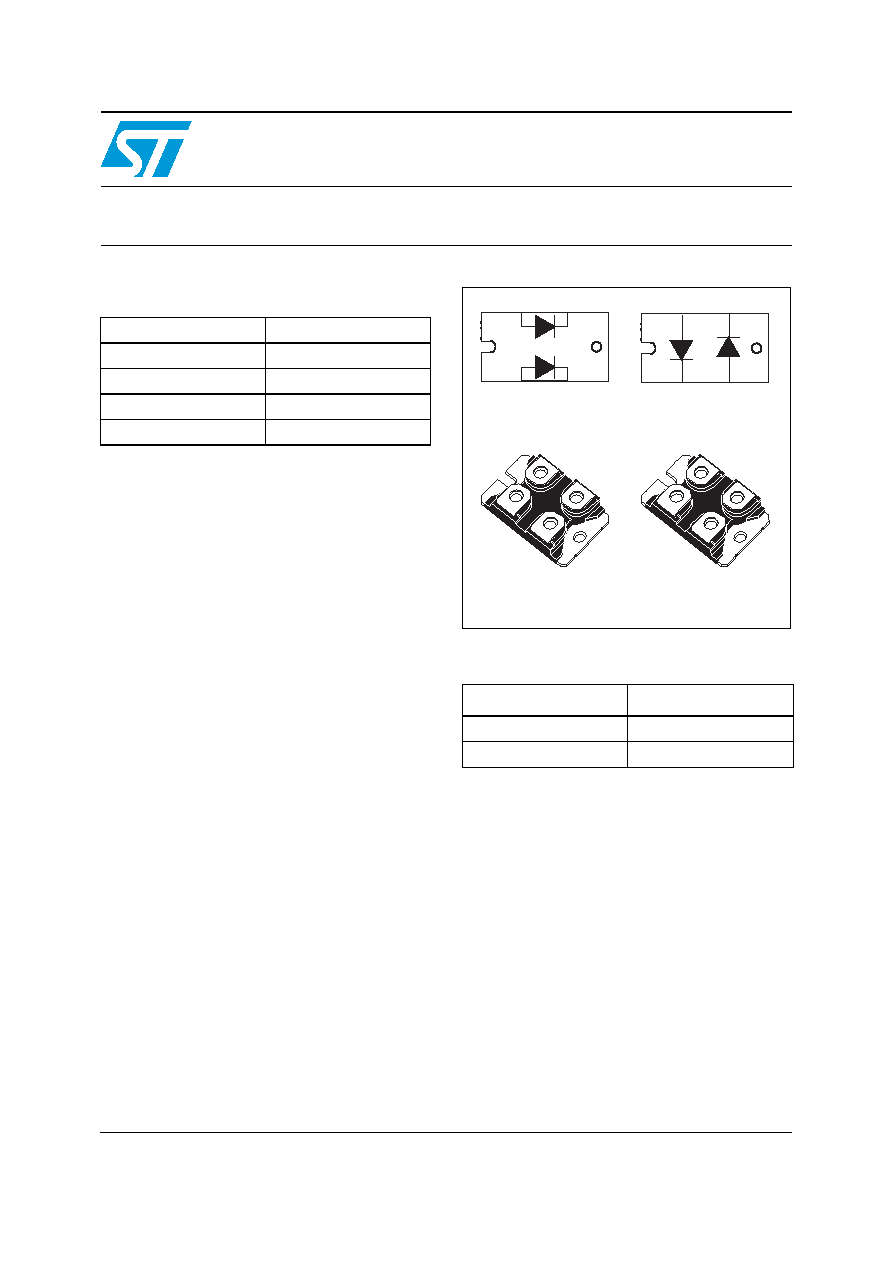

 1 / 8 page
background image
March 2006
Rev 1
1/8
8
STTH12010TV
Ultrafast recovery - high voltage diode
Main product characteristics
Features and benefits
■ Ultrafast, soft recovery
■ Very low conduction and switching losses
■ High frequency and/or high pulsed current
operation
■ High reverse voltage capability
■ High junction temperature
■ Insulated package
– Electrical insulation = 2500 VRMS
Capacitance = 45 pF
Description
The compromise-free, high quality design of this
diode has produced a device with low leakage
current, regularly reproducible characteristics and
intrinsic ruggedness. These characteristics make
it ideal for heavy duty applications that demand
long term reliability.
These demanding applications include industrial
power supplies, motor control, and similar
industrial systems that require rectification and
freewheeling. These diodes also fit into auxiliary
functions such as snubber, bootstrap, and
demagnetization applications.
The improved performance in low leakage
current, and therefore thermal runaway guard
band, is an immediate advantage for reducing
maintenance of the equipment
Order codes
IF(AV)
2 x 60 A
VRRM
1000 V
Tj
150° C
VF (typ)
1.30 V
trr (typ)
49 ns
Part Number
Marking
STTH12010TV1
STTH12010TV1
STTH12010TV2
STTH12010TV2
K2
K1
A2
A1
K2
K1
A2
A1
A1
A1
A2
A2
K1
K1
K2
K2
ISOTOP
STTH12010TV1
ISOTOP
STTH12010TV2
www.st.com
