Data Sheet

ADRF5062

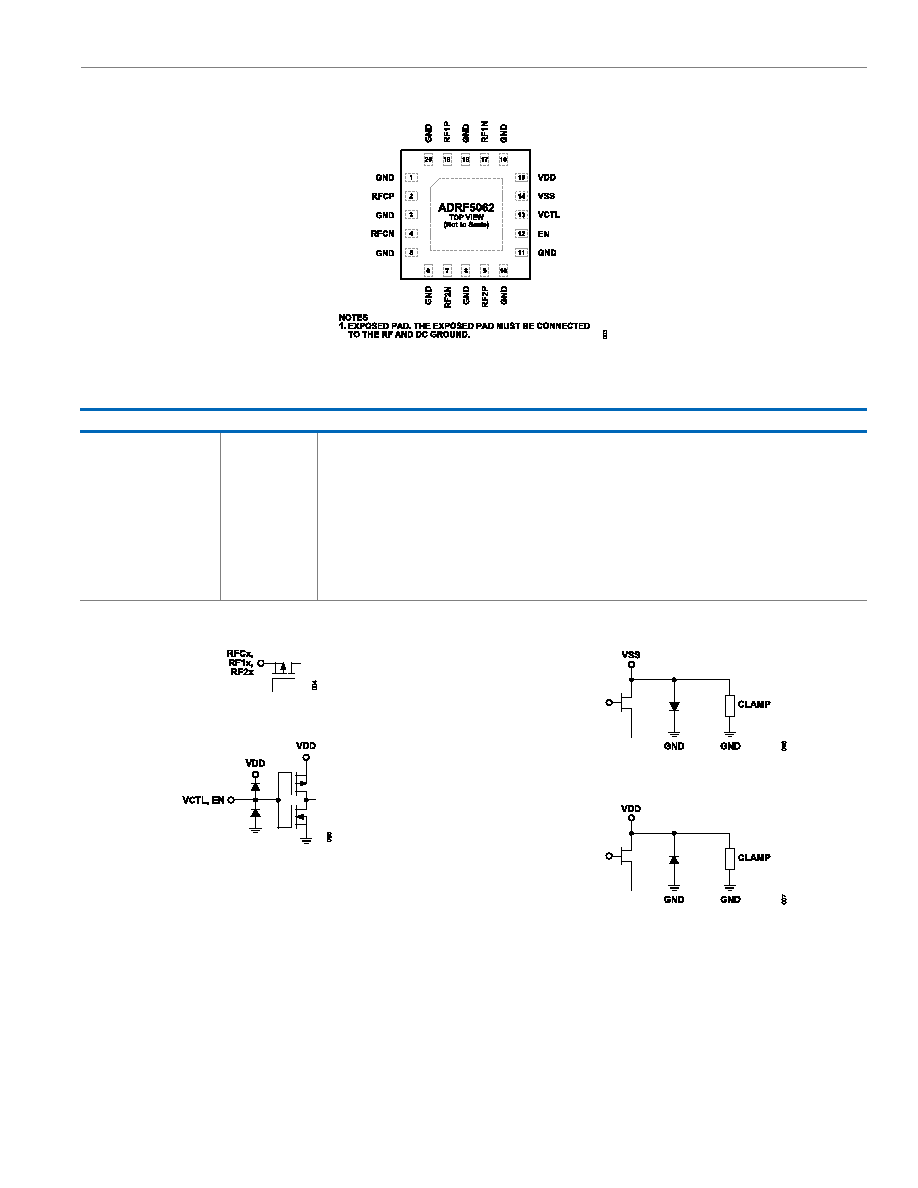

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

analog.com

Rev. A | 6 of 11

Figure 3. Pin Configuration (Top View)

Table 6. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 3, 5, 6, 8, 10, 11, 16, 18, 20 GND

Ground. The GND pins must be connected to the RF and DC ground of the PCB.

2, 4, 7, 9, 17, 19

RFCP, RFCN,

RF2N, RF2P,

RF1N, RF1P

The RFCx, RF1x, and RF2x pins are DC-coupled to 0 V and RF matched to differential, 100 Ω impedance as differential

pairs. See Figure 4 for the interface schematic.

12

EN

Enable Input. See Table 7 for the truth table. See Figure 5 for the interface schematic.

13

VCTL

Control Input. See Table 7 for the truth table and Figure 5 for the interface schematic.

14

VSS

Negative Supply Voltage. See Figure 6 for the interface schematic.

15

VDD

Positive Supply Voltage. See Figure 7 for the interface schematic.

EPAD

Exposed Pad. The exposed pad must be connected to the RF and DC ground.

INTERFACE SCHEMATICS

Figure 4. RFCx, RF1x, and RF2x Interface Schematic

Figure 5. VCTL and EN Interface Schematic

Figure 6. VSS Interface Schematic

Figure 7. VDD Interface Schematic
