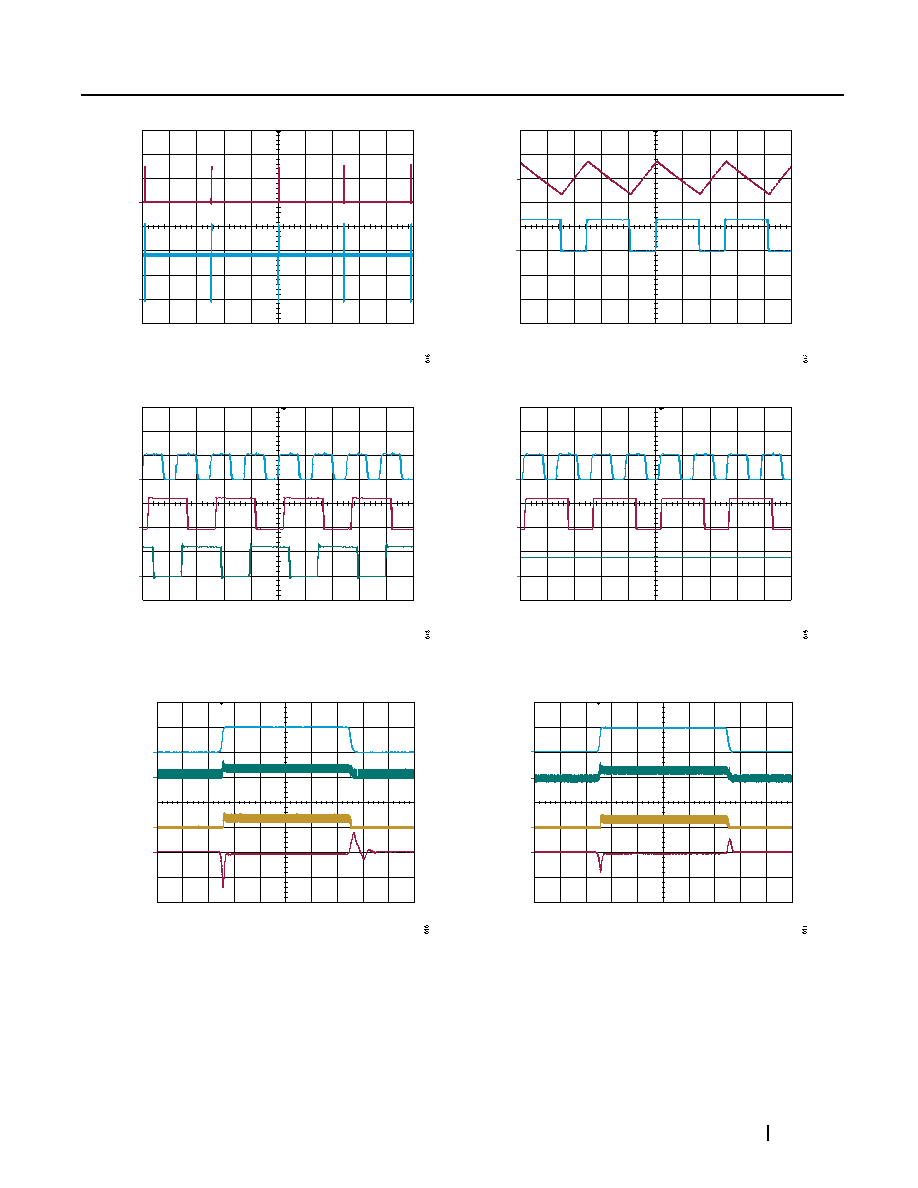

11 / 29 page  Data Sheet LT8349 analog.com Rev B 11 of 29 Figure 16.Switching Waveforms, Zero Load 1-Phase Burst Mode Operation (Reference to Page 26 Circuit) Figure 17. Switching Waveforms, Zero Load 1-Phase FCM Operation (Reference to Page 26 Circuit) Figure 18. Switching Waveforms, Heavy Load 2-Phase Operation with SYNC (Reference to Page 26 Circuit) Figure 19. Switching Waveforms, Light Load 1-Phase Operation with SYNC (Reference to Page 26 Circuit) Figure 20. Transient Response Burst Mode Operation (Reference to Page 26 Circuit) Figure 21. Transient Response FCM Mode Operation (Reference to Page 26 Circuit) VIN = 3.7V ILOAD = 0mA 20ms/DIV IL1 1A/DIV VSW1 2V/DIV VIN = 3.7V ILOAD = 0mA 200ns/DIV IL1 1A/DIV VSW1 5V/DIV VIN = 3.7V ILOAD = 4A 200ns/DIV VSW1 5V/DIV SYNC 2V/DIV VSW2 5V/DIV VIN = 3.7V ILOAD = 0.1A 200ns/DIV VSW1 5V/DIV SYNC 2V/DIV VSW2 5V/DIV VIN = 3.7V 200µs/DIV VOUT 200mV/DIV IOUT 2A/DIV IL1 5A/DIV IL2 5A/DIV VIN = 3.7V 200µs/DIV VOUT 200mV/DIV IOUT 2A/DIV IL1 5A/DIV IL2 5A/DIV |
|
|
