PowerPC 440SPe Embedded Processor

AMCC Proprietary

Revision 1.23 - Sept 21, 2006

Preliminary Data Sheet

DDR SDRAM Write Operation

The following timing chart shows the relationship between the signals involved in a DDR write operation.

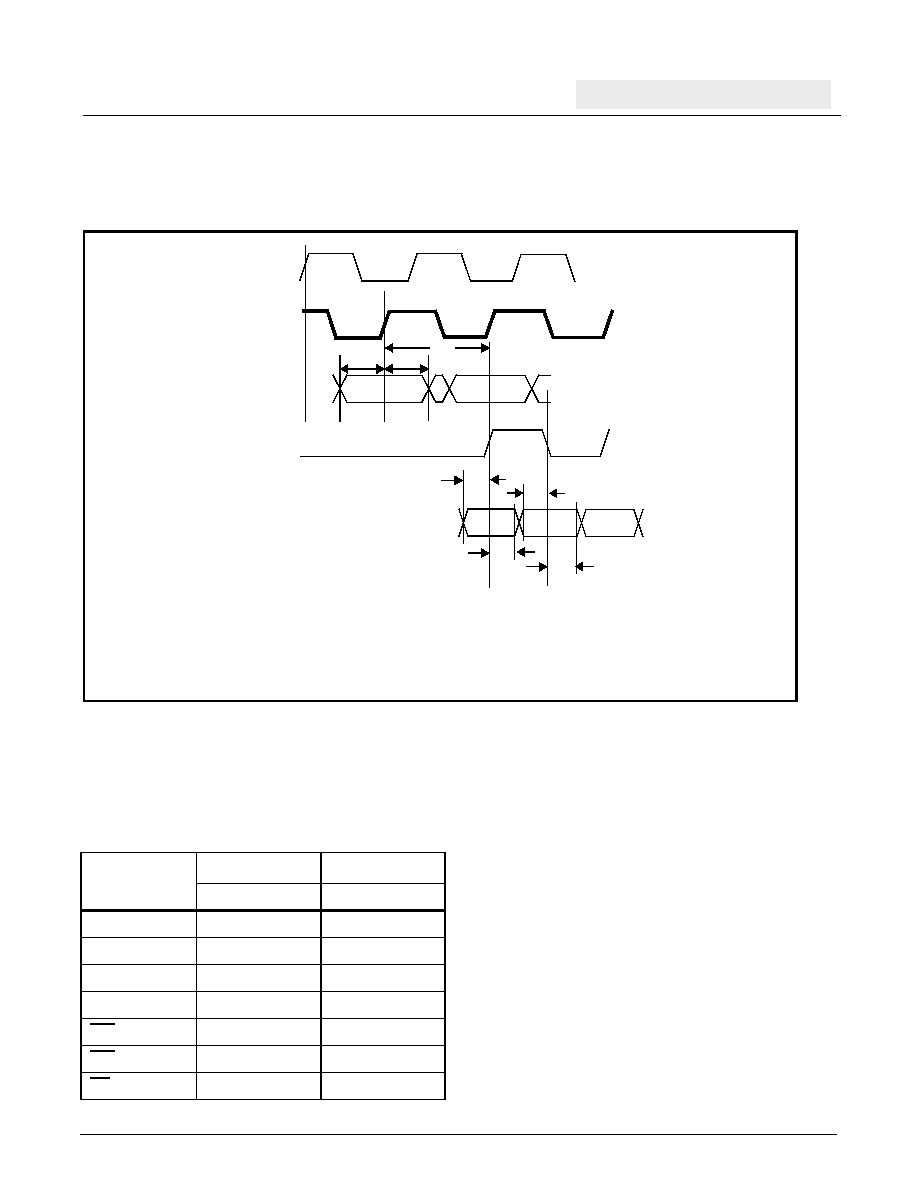

Figure 8. DDR SDRAM Write Cycle Timing

DDR SDRAM Read and Write I/O Timing—TSA and THA

Note 1: Clock speed is 333 MHz. TSA and THA are referenced to MemClkOut.

Note 2: Memory clock signal is shifted by 90

° from the internal clock.

Table 17. DDR SDRAM Read and Write I/O Timing—TSA and THA

Signal Name

TSA (ns)

THA (ns)

Minimum

MemAddr00:12

1.32

1.2

BA0:1

1.15

1.49

BankSel0:3

1.12

1.52

ClkEn0:3

1.29

1.45

CAS

1.24

1.14

RAS

1.29

1.48

1.35

1.43

DQS

MemData

PLB Clk

MemClkOut

Addr/Cmd

TSA

THA

TDS

TSD

THD

TSD

THD

TSA = Setup time for address and command signals to MemClkOut

THA = Hold time for address and command signals from MemClkOut

TDS = Delay from rising/falling edge of clock to the rising/falling edge of DQS

TSD = Setup time for data signals (minimum time data is valid before rising/falling edge of DSQ)

THD = Hold time for data signals (minimum time data is valid after rising/falling edge of DSQ)
