ADS103-R680IB datasheet(1/5 Pages) DFI

부품명	ADS103-R680IB

상세설명	14th/13th/12th Gen Intel® CoreTM Thin Mini-ITX

PDF	5 Pages

Scroll/Zoom	100%

제조업체	DFI [DFI Inc]

홈페이지	https://www.dfi.com/

Logo

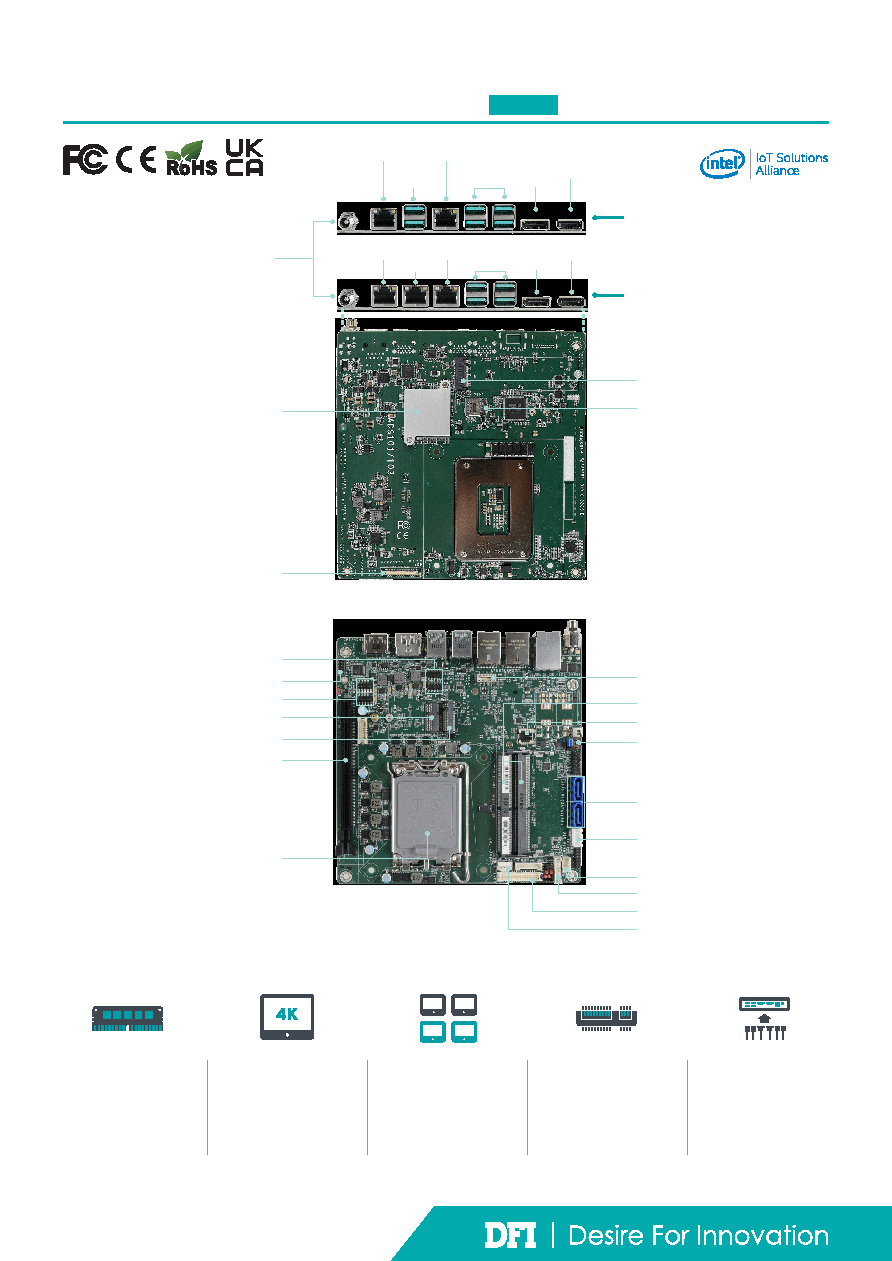

1 / 5 page

14th/13th/12th Gen Intel® CoreTM

Thin Mini-ITX

DDR4

4K High

Resolution

Quad

Displays

Multiple

Expansion

Rich I/O

2 DDR4 SODIMM 3200

MHz up to 64GB

Supports 4K/ 2K

resolution

1 DP++, 1 DP++/HDMI,

1 LVDS/eDP,

1 DFI display extension

port (DP/HDMI/VGA

available)

1 PCIe x16,

1 M.2 2230 E Key,

1 M.2 2280 M Key,

1 M.2 2242/3042/3052

B Key

1 Intel 2.5GbE, 2 COM,

up to 2 Intel GbE,

up to 6 USB 3.2 Gen2,

2 USB 3.2 Gen1,

4 USB 2.0, 2 SATA 3.0

Desktop

KEY FEATURES

2 LAN / 6 USB

3 LAN / 4 USB

ADS101/ADS103-R680E

ADS101/ADS103-Q670E

ADS101/ADS103-H610E

Top View

Bottom View

Intel® R680E/Q670E/

H610E Chipset

Nano SIM slot

eDP

M.2 M Key

USB 3.2

Gen2

COM1/2

Front Audio

PCIe x16 (Gen5)

M.2 2242/3042/3052 B Key

M.2 2230 E Key

USB 2.0

Intel® 14th/13th/12th Gen

Core i9/i7/i5/i3

SATA 3.0

System Fan

USB 3.2

LVDS

DDR4 SODIMM

SPI

SATA Power

CPU Fan

DIO

DIO Power

USB 3.2

Gen2

DP++

LAN1

LAN3

USB 3.2

Gen2

DP++/

HDMI

LAN1

LAN3

LAN2

DP++

DP++/

HDMI

ADS101: 12 VDC-in

ADS103: 15-36 VDC-in
