RPS100-R680EDB 데이터시트(PDF) 2 Page - DFI Inc |
|
|
|||||||||||||||||||||||||||||
RPS100-R680EDB 데이터시트(HTML) 2 Page - DFI Inc |
|
|

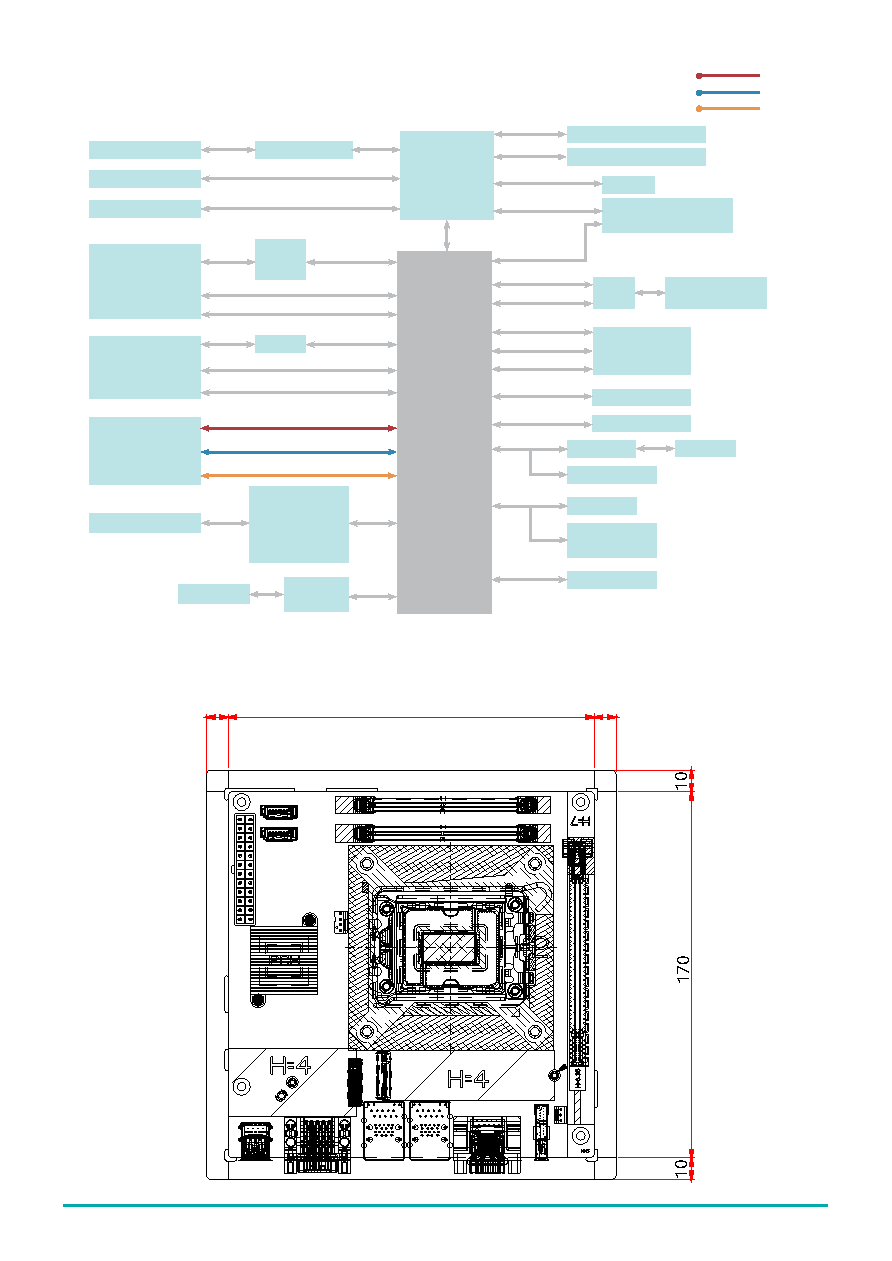

2 / 4 page  www.dfi.com MECHANICAL DRAWING BLOCK DIAGRAM Intel® R680E/ Q670E/ H610E Chipset Channel A SATA 3.0 SMBus SPI eSPI DDI Re-driver DDI DDI HDA Front Audio DDR5 4800MHz SODIMM SATA 2x 8-bit DIO TCA6408A SPI BIOS 80 port Header SMBus Header TPM 2.0 NPCT750AAD IT6516 VGA HDMI DP++ Realtek ALC888 Super IO with WDT Fan Control Case Open H/W Monitor DMI 4.0 Intel® 14th/13th/12th Gen LGA 1700 Channel B DDR5 4800MHz SODIMM USB 3.2 Gen2 USB 3.2 Gen2 USB 3.2 Gen2 USB 3.2 Gen2 USB 2.0 USB 2.0 USB 2.0 RJ45 2.5G LAN 1 + USB 3.2 Gen1 2x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 2x RJ45 2.5G LAN 2 + USB 3.2 Gen1 2x PCIe Gen3x1 PCIe Gen3x1 eSPI I226LM I226LM I226V I226V MDI MDI USB 2.0 USB 2.0 2x PCIe Gen5 PCIe Gen3x4 CNVi SATA 3.0 PCIe Gen3x1 USB 2.0 DDI PCIe x16 MUX M.2 E Key 2230 M.2 M Key 2280 M.2A Key 3042 Display Card RS232/422/485 2x PCIe Gen3x1 Q670E Only R680E Only H610E Only 10 170 10 |
|
|
