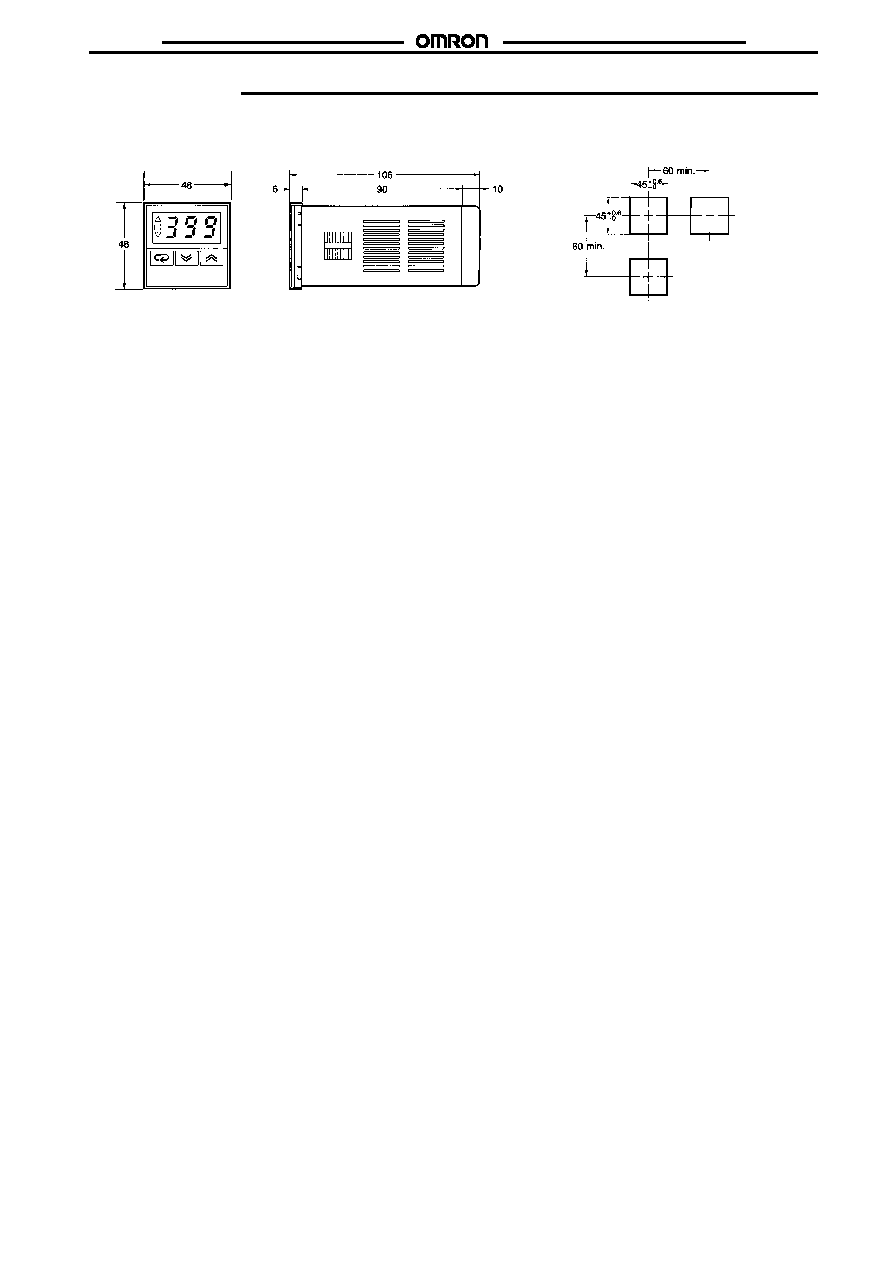

Dimensions

Note:

All units are in millimeters unless otherwise indicated.

Panel cutout

Note:

1. The recommended panel thickness is 1 to 4 mm.

2. The Temperature Controller is contained in a mount-

ing bracket, so close side-by-side Temperature

Controller mounting is possible. Provide a center-to-

center distance of at least 60 mm between two adja-

cent Temperature Controllers.
