SE2582L

RangeCharger™ 2.4 GHz Power Amplifier with Power Detector

212-DST-01 Rev 1.2 Mar-27-2007

Confidential

1 of 8

QA032707

Applications

DSSS 2.4 GHz WLAN (IEEE802.11b)

OFDM 2.4 GHz WLAN (IEEE802.11g)

Access Points, PCMCIA, PC cards

Features

Single 3.3 V Supply Operation

Integrated matching: Input, Interstage and Output

Buffered,

temperature

compensated

power

detector

17.5 dBm, EVM = 3 %, 802.11g, OFDM 54 Mbps

Low quiescent current of 48 mA

30 dB Gain

Lead Free and RoHS compliant package

16 pin 3 mm x 3 mm x 0.9 mm QFN

Ordering Information

Part Number

Package

Remark

SE2582L

16 Pin QFN

Samples

SE2582L-R

16 Pin QFN

Tape and Reel

SE2582L-EK1

Evaluation Kit

Standard

Product Description

The SE2582L is a 2.4 GHz power amplifier designed

for use in the 2.4 GHz ISM band for wireless LAN

applications.

The SE2582L is completely integrated including all

RF matching (input, output and interstage) as well as

a high performance power detector for closed loop

monitoring of the output power.

The SE2582L includes a digital enable control for

device on/off control. This functionality allows for a

seamless interface with CMOS transceivers, without

the use of external logic or reference voltages.

The SE2582L temperature compensated power

detector has is highly immune to mismatch at its

output with less than 1.5 dB of variation with a 2:1

mismatch.

The part operates at a low quiescent current making it

ideal for low power applications such as mobile phone

and PDA devices.

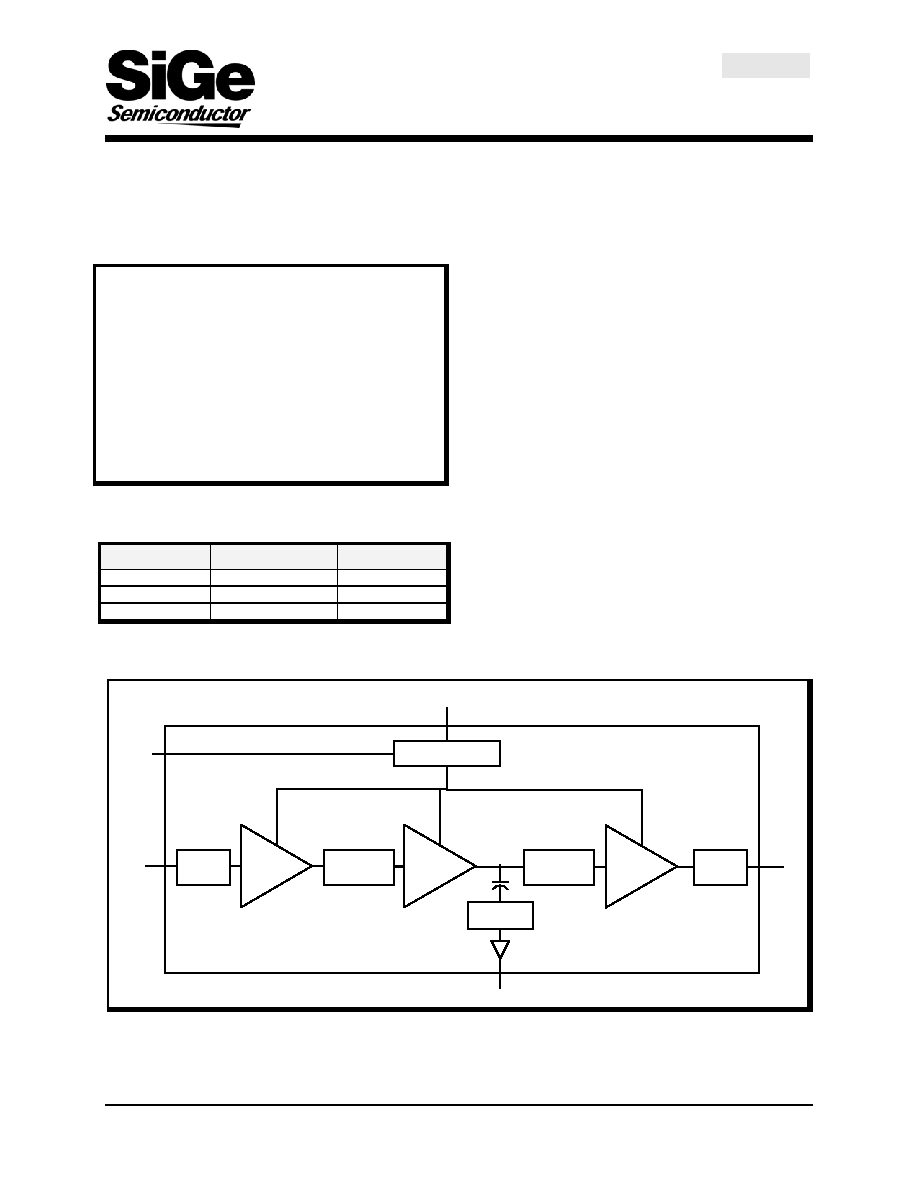

Functional Block Diagram

Vcc

Vdet OUT

RFout

RFin

Stage 2

Stage 1

Stage 3

Bias Generator

Detector

VEN

Input

Match

Output

Match

Interstage

Match

Interstage

Match

Figure 1: Functional Block Diagram
