DI2CSB 데이터시트(PDF) 2 Page - Digital Core Design

부품명 DI2CSB
상세설명  I2C Bus Interface Slave - Base version
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  DCD [Digital Core Design]
홈페이지  http://www.digitalcoredesign.com
Logo DCD - Digital Core Design

DI2CSB 데이터시트(HTML) 2 Page - Digital Core Design

  DI2CSB Datasheet HTML 1Page - Digital Core Design DI2CSB Datasheet HTML 2Page - Digital Core Design DI2CSB Datasheet HTML 3Page - Digital Core Design DI2CSB Datasheet HTML 4Page - Digital Core Design
Zoom Inzoom in Zoom Outzoom out
 2 / 4 page

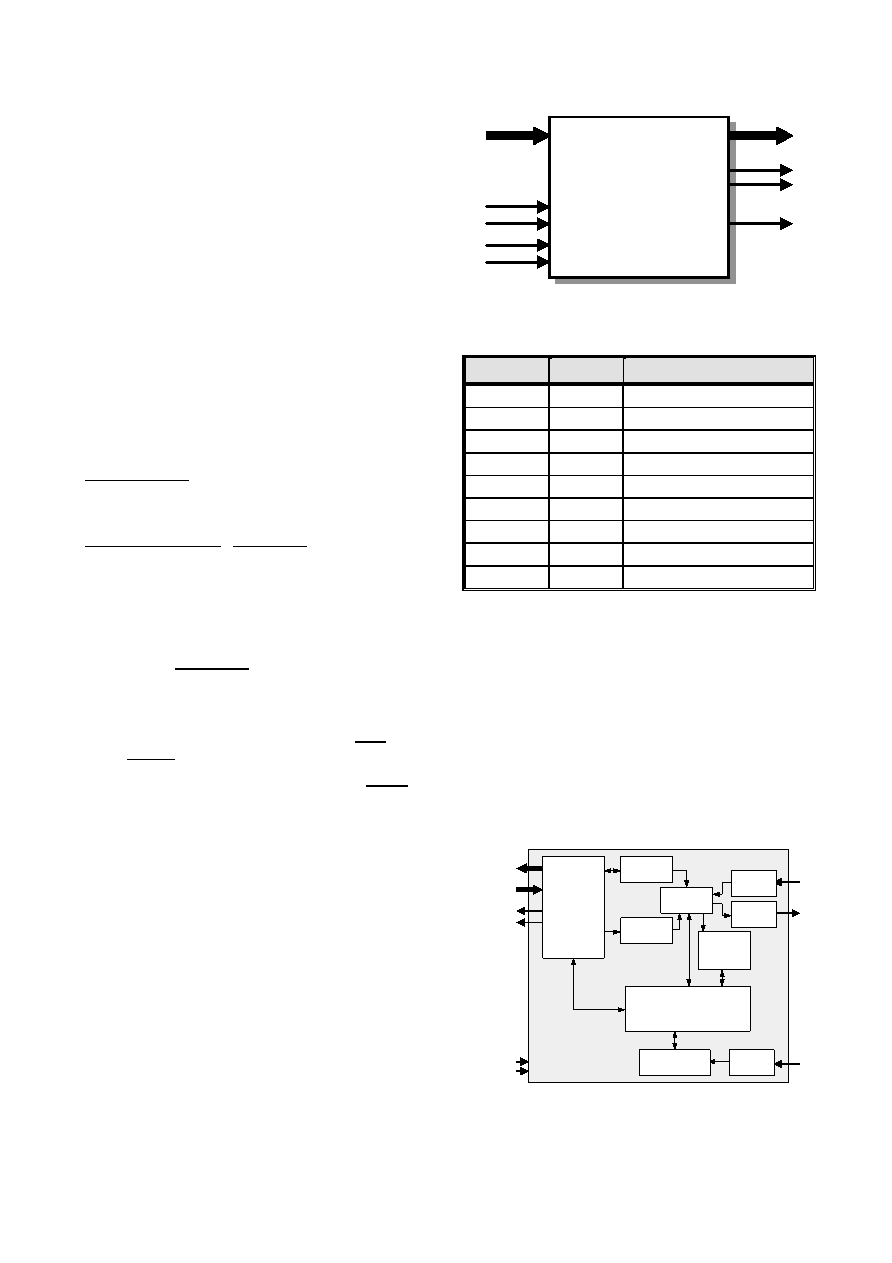

background image
All trademarks mentioned in this document
are trademarks of their respective owners.
Copyright 1999-2007 DCD – Digital Core Design. All Rights Reserved.
◊
♦
◊
◊
◊
♦
♦
♦
◊
◊
http://www.DigitalCoreDesign.com
http://www.dcd.pl
Tests with reference responses
Technical documentation
Installation notes
HDL core specification
Datasheet
Synthesis scripts
Example application
Technical support
IP Core implementation support
3 months maintenance
●
Delivery the IP Core updates, minor
and major versions changes
●
Delivery the documentation updates
●
Phone & email support
LICENSING
Comprehensible and clearly defined licensing
methods without royalty fees make using of
IP Core easy and simply.
Single Design
license allows use IP Core in
single FPGA bitstream and ASIC implemen-
tation.
Unlimited Designs, One Year
licenses allow
use IP Core in unlimited number of FPGA
bitstreams and ASIC implementations.
In all cases number of IP Core instantiations
within a design, and number of manufactured
chips are unlimited. There is no time restric-
tion except One Year license where time of
use is limited to 12 months.
●
○
Single Design license for
VHDL, Verilog source code called HDL
Source
○
Encrypted, or plain text EDIF called Netlist
●
○
●
○
○
●
○
○
One Year license for
Encrypted Netlist only
Unlimited Designs license for
HDL Source
Netlist
Upgrade from
HDL Source to Netlist
Single Design to Unlimited Designs
SYMBOL
datai(7:0)
rd
wr
clk
rst
scli
sdai
sdao
datao(7:0)
PINS DESCRIPTI O N
PIN
TYPE
DESCRIPTION
clk
input
Global clock
rst
input
Global reset
datai(7:0)
input
Data bus from target device
scli
input
I
2C bus clock line (input)
sdai
input
I
2C bus data line (input)
datao(7:0)
output
Data bus to target device
wr
output
Write strobe for target device
rd
output
Read strobe for target device
sdao
output
I
2C bus data line (output)
BLOCK DIAGRAM
Figure below shows the DI2CSB IP Core
block diagram.
Target device Interface
– Performs the inter-
face functions between DI2CSB internal
blocks and target device. Allows easy con-
nection of the core to a passive devices e.g.
memory, LCD display, pressure sensors, I/O
devices etc..
datai(7:0)
datao(7:0)
rd
we
rst
clk
Target device
Interface
sdai
sdao
scli
Input
Filter
Output
Register
Shift
Register
Input
Filter
Control
Logic
Synchronization
Logic
Send
Data
Receive
Data
Receive
Data
Own
address
detection
