2SD2353 데이터시트(PDF) 4 Page - Toshiba Semiconductor

부품명 2SD2353
상세설명  Silicon NPN Triple Diffused Type
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TOSHIBA [Toshiba Semiconductor]
홈페이지  http://www.semicon.toshiba.co.jp/eng
Logo TOSHIBA - Toshiba Semiconductor

2SD2353 데이터시트(HTML) 4 Page - Toshiba Semiconductor

  2SD2353_06 Datasheet HTML 1Page - Toshiba Semiconductor 2SD2353_06 Datasheet HTML 2Page - Toshiba Semiconductor 2SD2353_06 Datasheet HTML 3Page - Toshiba Semiconductor 2SD2353_06 Datasheet HTML 4Page - Toshiba Semiconductor 2SD2353_06 Datasheet HTML 5Page - Toshiba Semiconductor
Zoom Inzoom in Zoom Outzoom out
 4 / 5 page
background image
2SD2353
2006-11-21
4

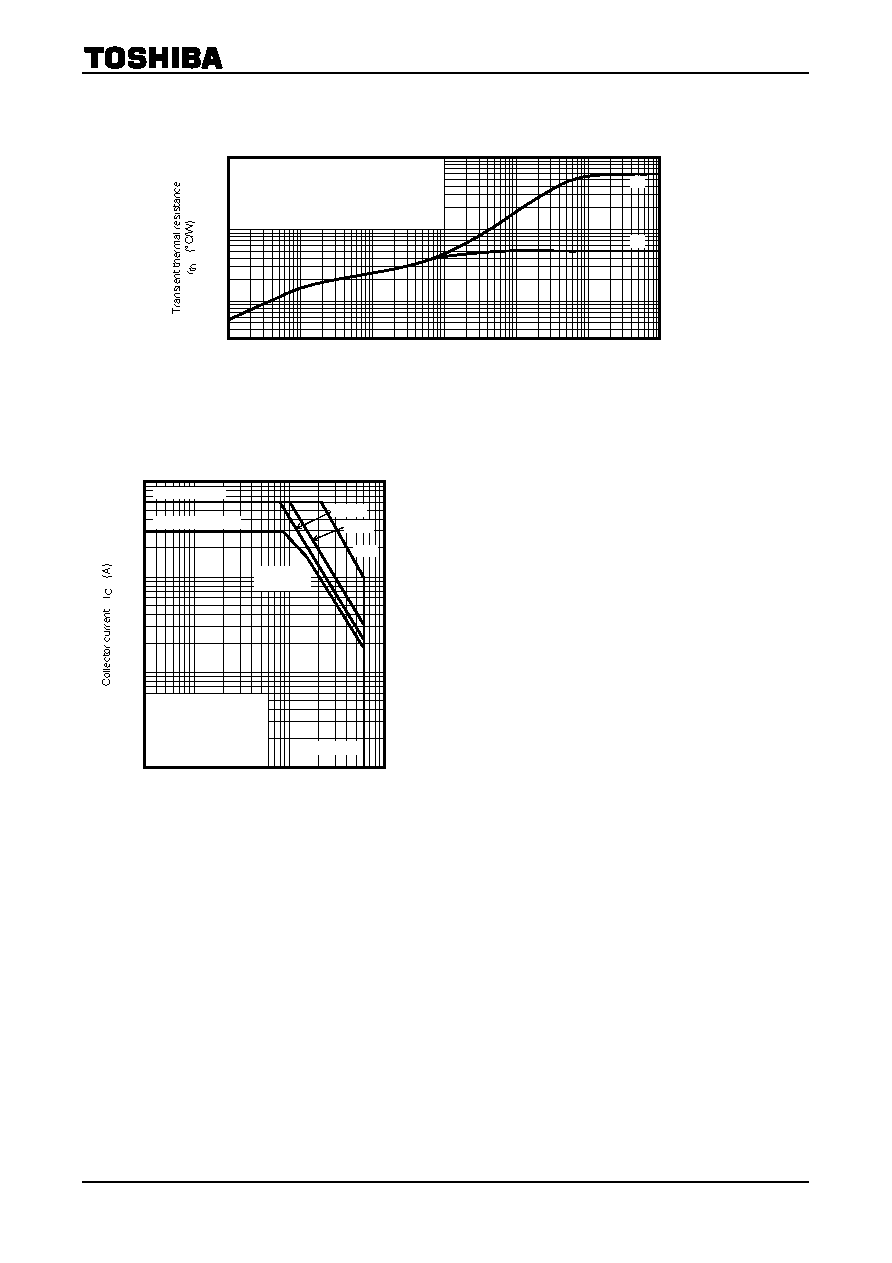

Collector-emitter voltage VCE (V)
Safe Operating Area
*: Single nonrepetitive
pulse Tc = 25°C
Curves must be derated
linearly with increase in
temperature.
IC max (continuous)
IC max (pulsed)*
0.3
1
3
10
30
100
0.03
0.01
1 ms*
10 ms*
100 ms*
VCEO max
0.3
0.1
3
10
1
DC operation
Tc = 25°C
0.05
0.5
5
Pulse width tw (s)
rth – tw
0.001
1000
0.01
0.1
100
10
1
100
3
30
10
1
0.3
Curves should be applied in thermal limited area.
(single nonrepetitive pulse)
(1) Infinite heat sink
(2) No heat sink
(1)
(2)
