UG-866

EV-RADAR-MMIC2 User Guide

Rev. B | Page 6 of 28

EVALUATION BOARD SOFTWARE

The control software for the EV-RADAR-MMIC2 accompanies

the EV-RADAR-MMIC2 on a CD. For the software installation

procedure, see the UG-476 user guide, PLL Software Installation

Guide.

To run the software, click the EV-RADAR-MMIC2 file on the

desktop or in the Start menu.

On the Select Device and Connection tab, select EV-RADAR-

MMIC2 (ADF5901, ADF5904, ADF4159) and click Connect.

Confirm that SDP connected displays at the bottom left of the

window on the status bar (see Figure 2). Otherwise, the software

has no connection to the evaluation board.

Note that, when connecting the evaluation board, it takes about

5 sec to 10 sec for the status label to change.

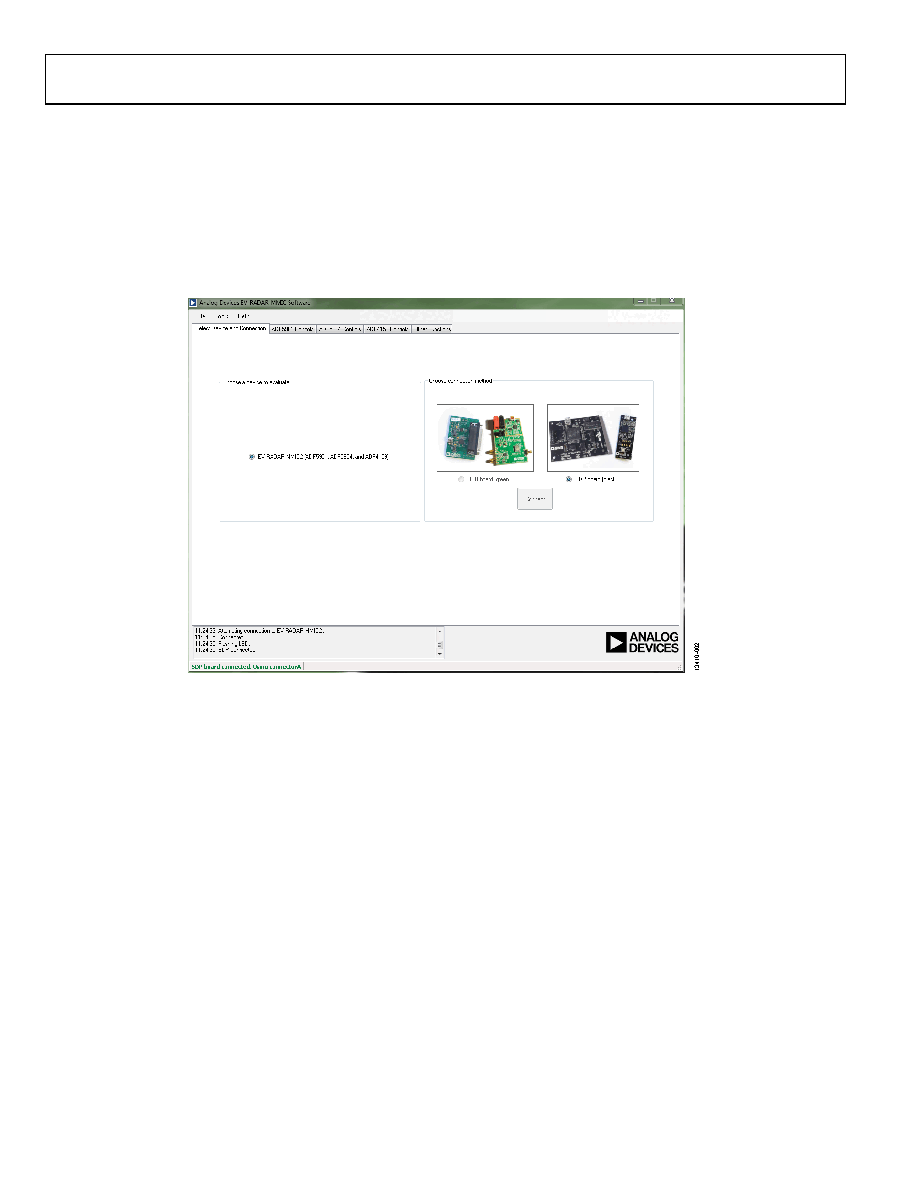

Figure 2. Select Device and Connection Tab
