Basic Switches

BZ/BA Series

Standard

Honeywell Sensing and Control

For application help: call 1-800-537-6945.

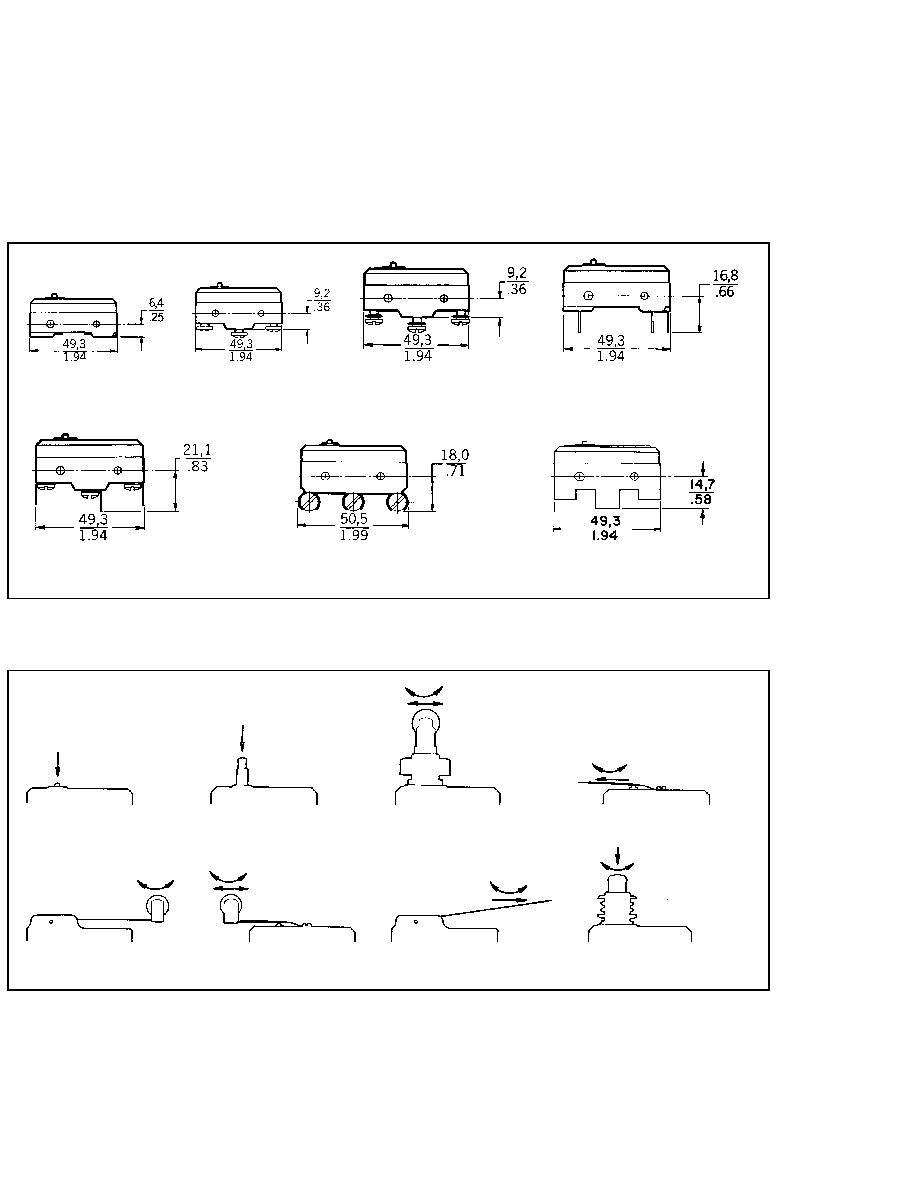

AVAILABLE TERMINALS

Most of the BZ/BA catalog listings have

A2 type terminals. Several other terminal

styles are shown and others are available.

Specific information should be requested

from the 800 number or local Authorized

Distributor.

Solder (No suffix)

Use up to #14 wire

Bottom facing 6-32 NC

× .218

screw with cup washers

(Same as A2 except #8 screws)

Bottom facing 6-32 NC

× .218 screw

with Sems lockwashers

.250 (6,35 mm) wide

× .030 (7,62) thick

quick-connect

.250 (6,35 mm) wide

× .032 (0,81 mm) thick

quick-connect

Side facing 8-32

× .218 screw with cup washers

PC2

Self lifting pressure plate terminals and plastic

barriers for added dielectric protection

ACTUATORS

BA, BE, BM and BZ standard basic

switches use the actuators described.

Pin plunger; in-line motion

Overtravel plunger; in-line

applications requiring additional

overtravel

Added overtravel in a panel mount

roller plunger; Actuation by cams

Leaf; Low-force, slow moving cams or

slides

Roller lever; Very low force, fast

moving cams

Roller leaf; Low-force, large

movement actuation

Lever; Very low force, slow cams and

slides

Added overtravel in a panel-mount

plunger; Heavy-duty in-line

applications or slow cams.

Cam rise should not exceed 30
