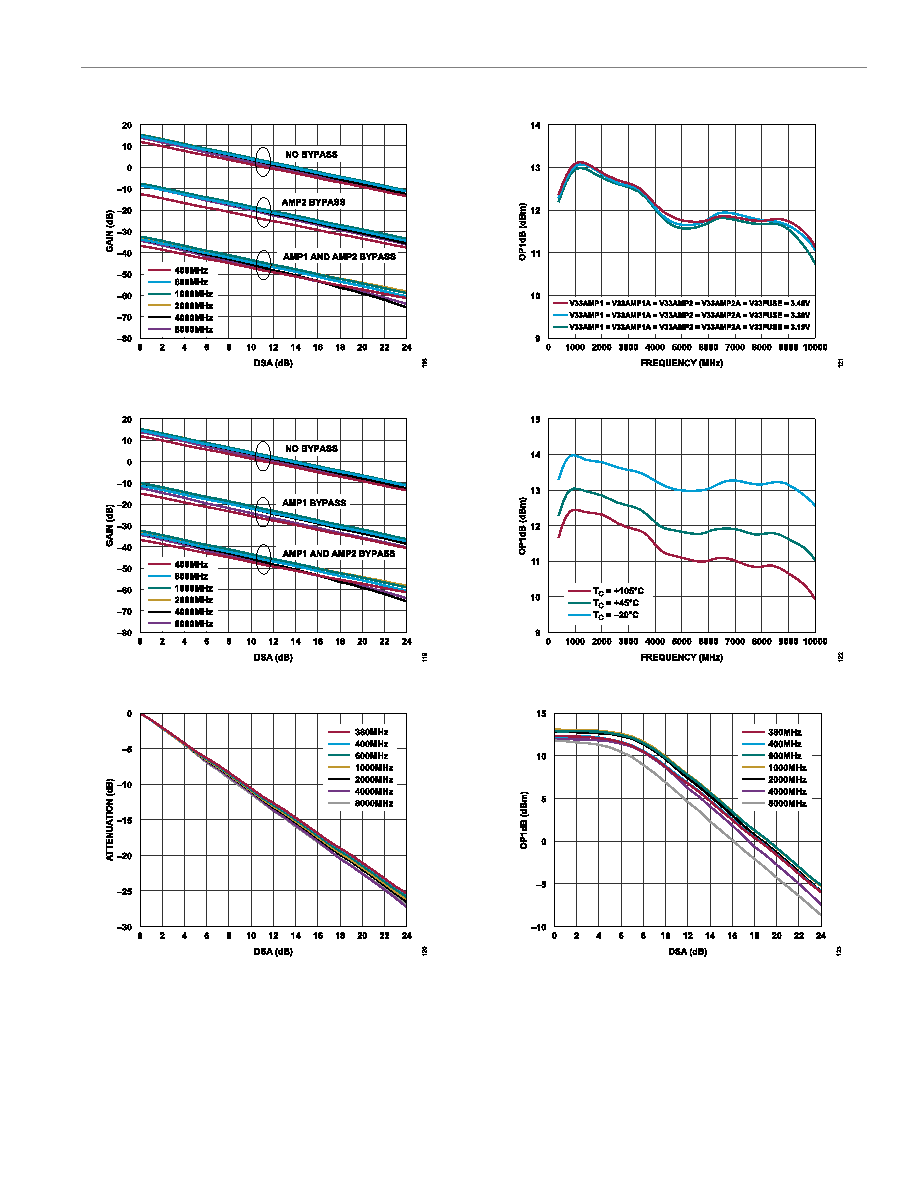

background image
Data Sheet
ADL6332
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 55
Figure 18. Gain vs. 1.0 dB DSA Steps for Various Frequencies, AMP2 Bypass
Figure 19. Gain vs. 1.0 dB DSA Steps for Various Frequencies, AMP1 Bypass
Figure 20. Attenuation vs. DSA for Various Frequencies
Figure 21. OP1dB vs. Frequency for Various Supplies
Figure 22. OP1dB vs. Frequency for Various Temperatures
Figure 23. OP1dB vs. 1.0 dB DSA Steps for Various Frequencies
