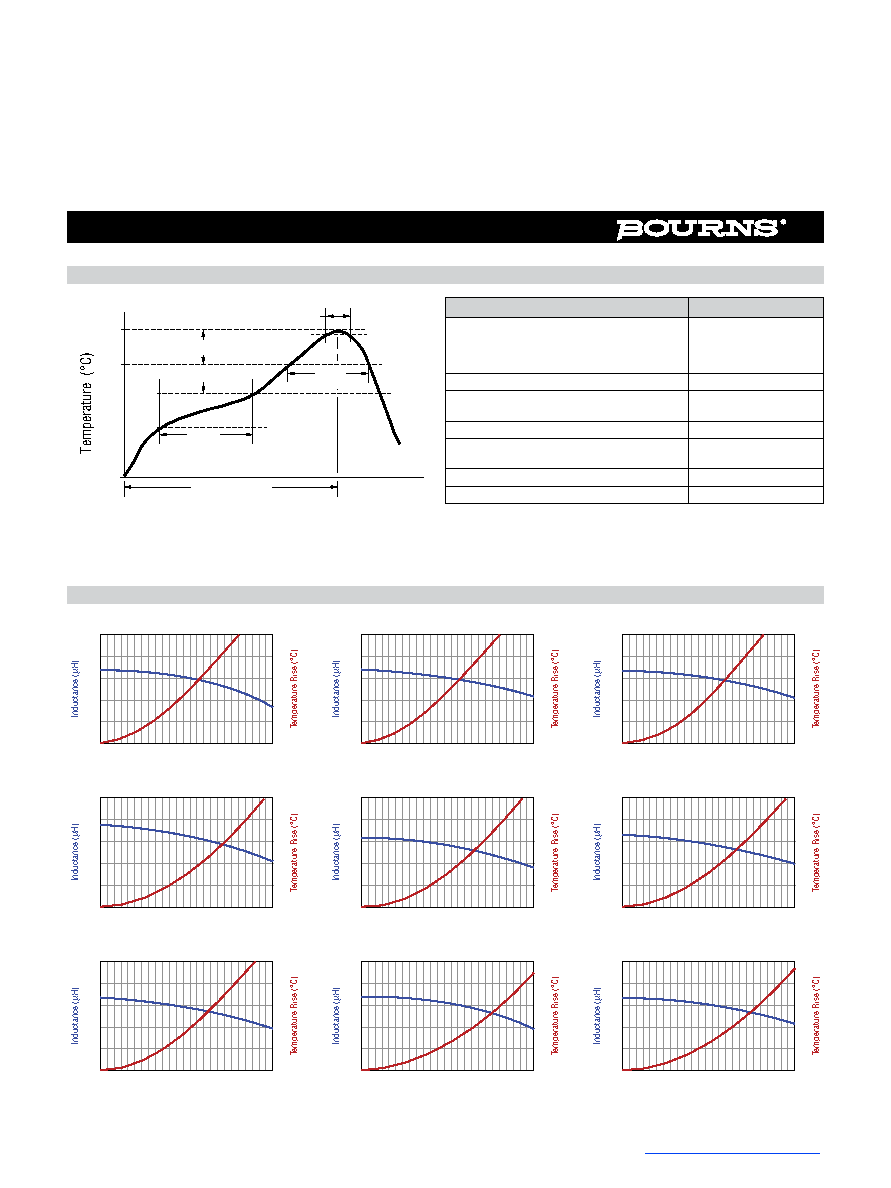

SRP0612F Series – Shielded Power Inductors
Soldering Profile
Profile Feature
Pb Free Assembly
Preheat
- Temperature Min� (Tsmin)
- Temperature Max� (Tsmax)
- Time(ts) from Tsmin to Tsmax
150 °C
200 °C
60-120 seconds
Ramp-up Rate (TL to Tp)
3 °C/second max�
Liquidous temperature (TL)
Time (tL) maintained above TL
217 °C
60-150 seconds
Peak package body temperature (Tp)
260 °C
Time within 5 °C of Actual Peak Temperature
(tp)
<30 seconds
Ramp-Down Rate (Tp to TL)
6 °C/second max�
Time 25 °C to Peak Temperature
8 minutes max�
25
260
Time (Seconds)
REFLOW TIMES: 3 TIMES MAX.
PREHEAT AREA
MAX. RAMP UP RATE = 3 °C/SEC.
MAX. RAMP DOWN RATE = 6 °C/SEC.
Time 25 °C to Peak
8 Minutes Max.
TC -5 °C
200 °C
60~150
Sec.
217
150°C
60~120
Sec.
20~30 Sec.
Inductance vs. IDC
1.00
0.80
0.60
0.40
0.20
0
0
3.4
6.8
10.2
13.6
17.0
DC Current (A)
100
80
60
40
20
0
2.00
1.60
1.20
0.80
0.40
0
0
2.2
4.4
6.6
8.8
11.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-1R5M
3.50
2.80
2.10
1.40
0.70
0
0
2.0
4.0
6.0
8.0
10.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-2R2M
5.00
4.00
3.00
2.00
1.00
0
0
1.8
3.6
5.4
7.2
9.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-3R3M
7.00
5.60
4.20
2.80
1.40
0
0
1.6
3.2
4.8
6.4
8.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-4R7M
10.00
8.00
6.00
4.00
2.00
0
0
1.1
2.2
3.3
4.4
5.5
DC Current (A)
100
80
60
40
20
0
SRP0612F-6R8M
15.00
12.00
9.00
6.00
3.00
0
0
0.9
1.8
2.7
3.6
4.5
DC Current (A)
100
80
60
40
20
0
SRP0612F-100M
SRP0612F-R68M
0.70
0.56
0.42
0.28
0.14
0
0
4.0
8.0
12.0
16.0
20.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-R47M
1.50
1.20
0.90
0.60
0.30
0
0
2.8
5.6
8.4
11.2
14.0
DC Current (A)
100
80
60
40
20
0
SRP0612F-1R0M
