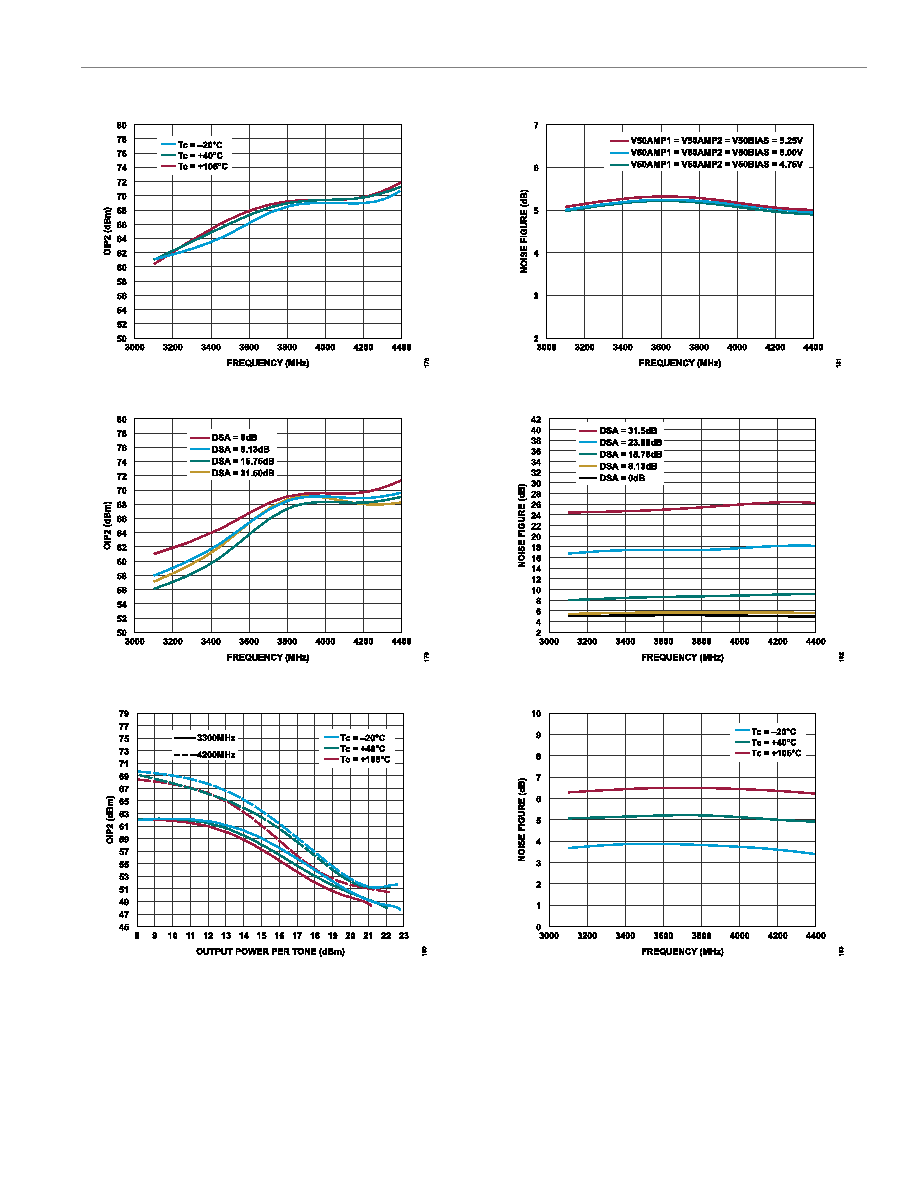

background image
Data Sheet
ADL6337
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 23 of 53
Figure 78. OIP2 vs. Frequency for Various Temperatures
Figure 79. OIP2 vs. Frequency at Various DSA Values
Figure 80. OIP2 vs. Output Power per Tone for Various Temperatures at 3300
MHz and 4200 MHz
Figure 81. Noise Figure vs. Frequency for Various Supplies
Figure 82. Noise Figure vs. Frequency at Various DSA Values
Figure 83. Noise Figure vs. Frequency for Various Temperatures
