Data Sheet
ADL6337

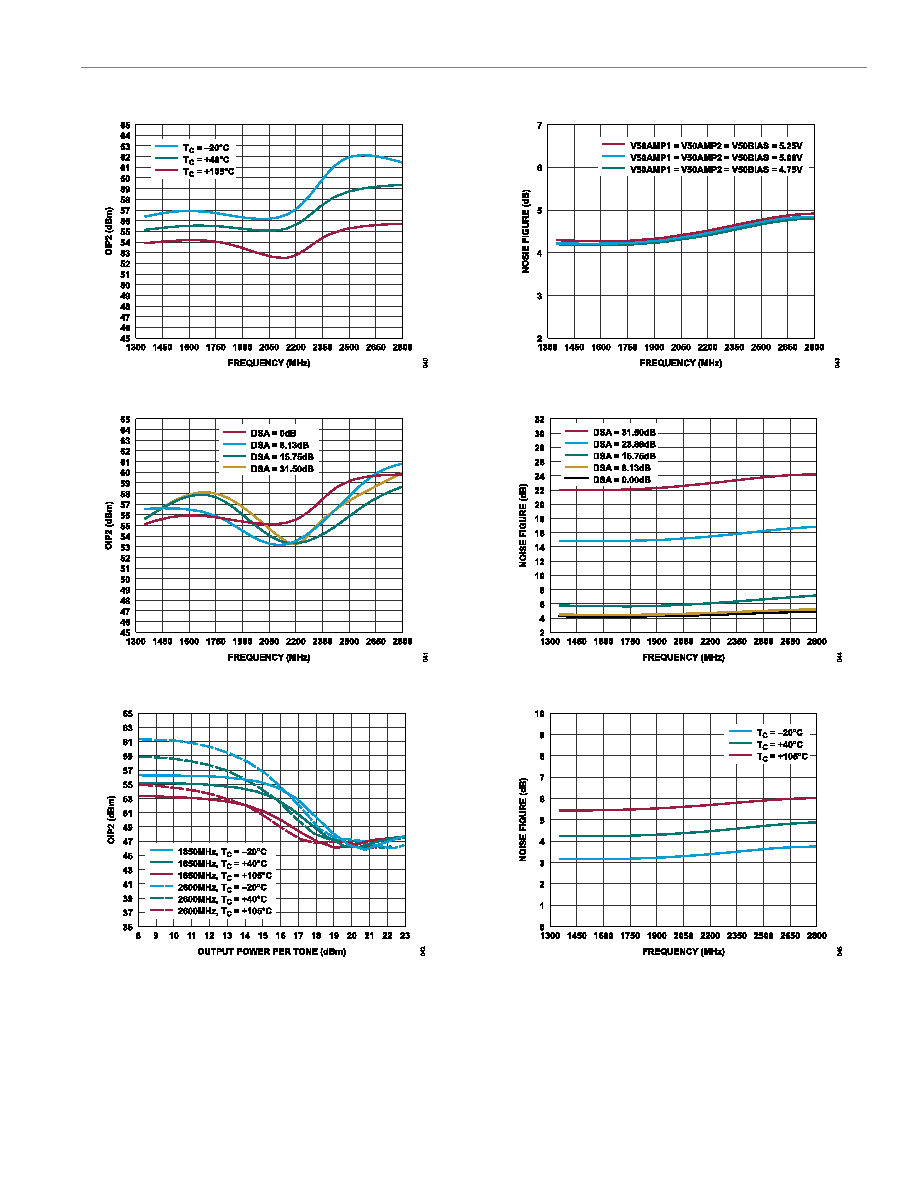

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 18 of 53
Figure 51. OIP2 vs. Frequency for Various Temperatures
Figure 52. OIP2 vs. Frequency at Various DSA Values
Figure 53. OIP2 vs. Output Power per Tone for Various Temperatures at 1850
MHz and 2600 MHz
Figure 54. Noise Figure vs. Frequency for Various Supplies
Figure 55. Noise Figure vs. Frequency at Various DSA Values
Figure 56. Noise Figure vs. Frequency for Various Temperatures
