Type 5HT / 5HTP

3 / 4

Bel Fuse Inc.

300 Executive Drive, Suite 300,

West Orange, NJ 07052 USA

+1 201.432.0463

Bel.US.CS@belf.com

belfuse.com/circuit-protection

© 2025 Bel Fuse, Inc.

Rev. 5HT Feb2025

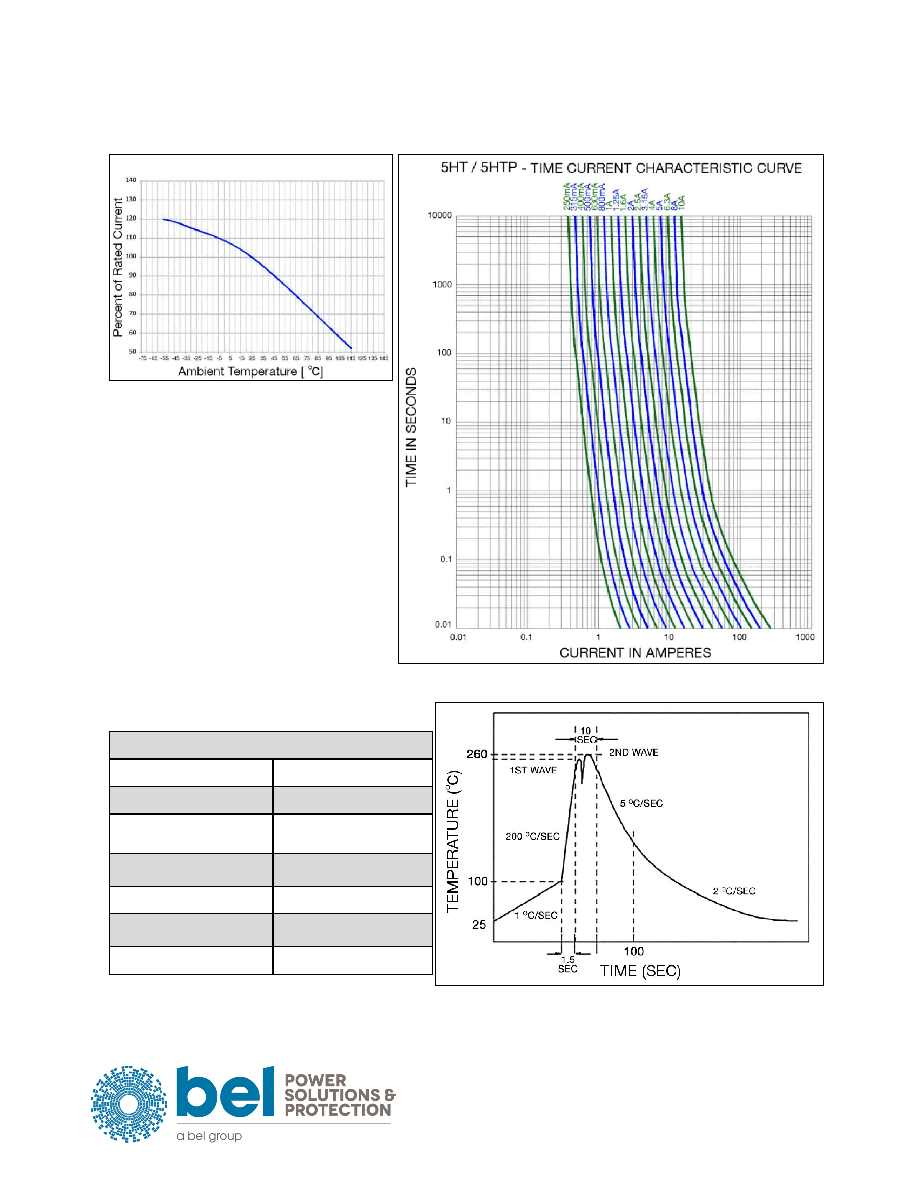

Temperature Derating Curve

Average Time Current Curve

Soldering Parameters

Lead-free Wave Soldering Profile

Wave Soldering Parameter

Average ramp-up rate

200

℃ / second

Heating rate during preheat

typical 1 - 2

℃ / second

Max 4

℃ / second

Final preheat temperature

within 125

℃ of soldering

temperature

Peak temperature Tp

260

℃

Time within +0

℃ / -5℃ of

actual peak temperature

10 seconds

Ramp-down rate

5

℃ / second max.

Specifications subject to change without notice
