General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

10

• 1 watt in a 2512 package size(2W @25°C)

• Available in 2 & 4 terminal (Kelvin) designs

• Very low resistance range (.0005Ω to .003Ω)

• High current handling capacity (45 amps continuous max)

• Low TCR (20 ppm/°C) resistor alloy

• ±5% & 1% Standard Tolerance (see note on 1% tolerance)

OPERATING CHARACTERISTICS:

• Load Life @ 70°C: 1% ∆ Max

• Moisture No Load: 1% ∆ Max

• Temp Cycle @ -40°C & +125°C: 1% ∆ Max

APPLICATIONS:

• Current Sensing

• Feed Back

• High Frequency

FEATURES:

• Low Inductance

• Rugged Construction

• Surface Mount

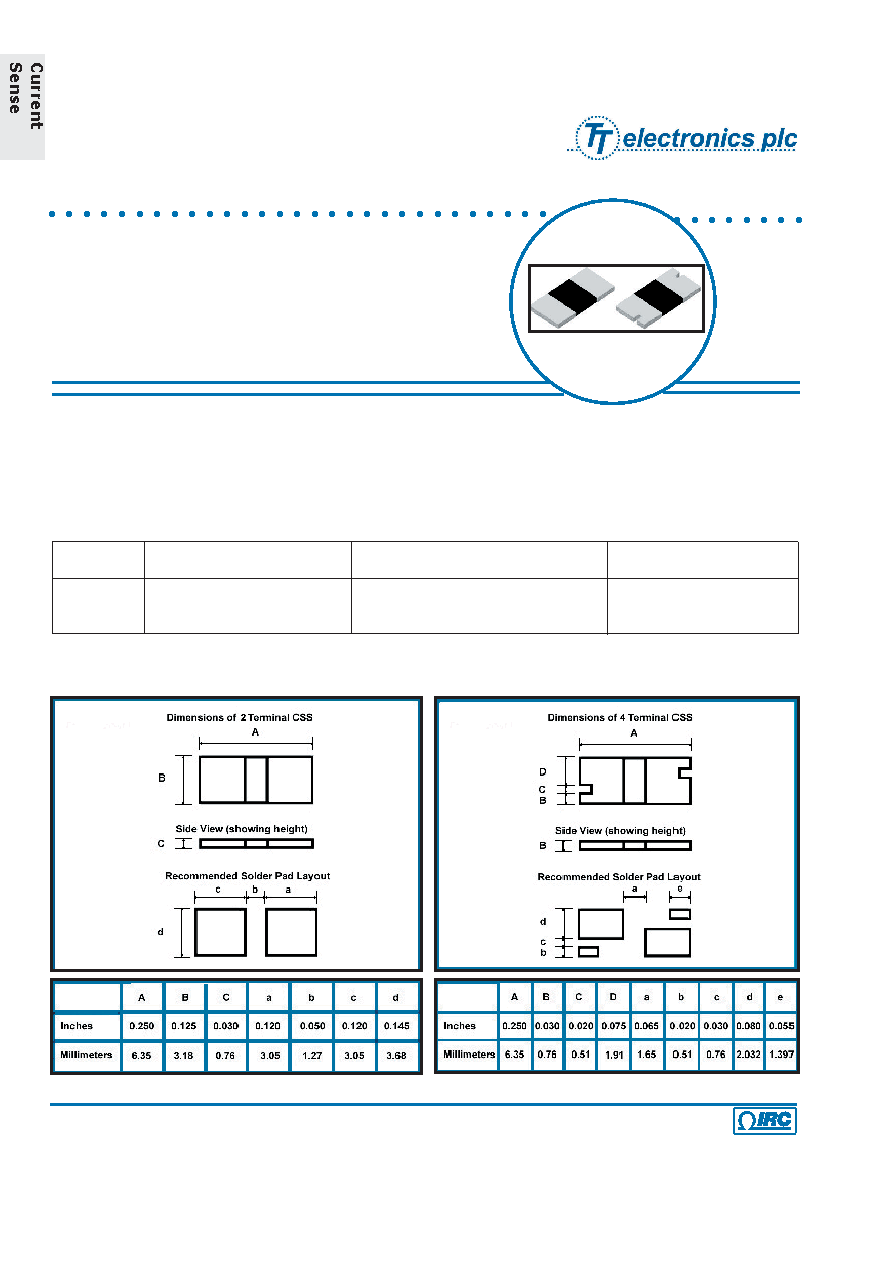

DIMENSIONS:

SPECIFICATIONS:

Power

(watts)

1@70° C

Current Rating

(amps)

Range Dependant

(45 cont. max)

Standard Resistance Values

(Ω)

0.0005Ω, 0.001Ω, 0.0015Ω &

0.002Ω, 0.003Ω

*contact factory for other values

Tolerance

(±%)

5%, 1%*

*Product performance within 1% distribution centered on nominal. Test nominal set by a Tegam 1750 at 25°C as calibrated to the test system’s

capability.

CSS SERIES

CURRENT SENSE SMT CHIP RESISTOR

WIREWOUND AND FILM TECHNOLOGIES DIVISION

736 Greenway Road • Boone, North Carolina 28607-1860 • Tel: 828-264-8861 • Fax: 828-264-8866 • www.irctt.com

OBSOLETE
