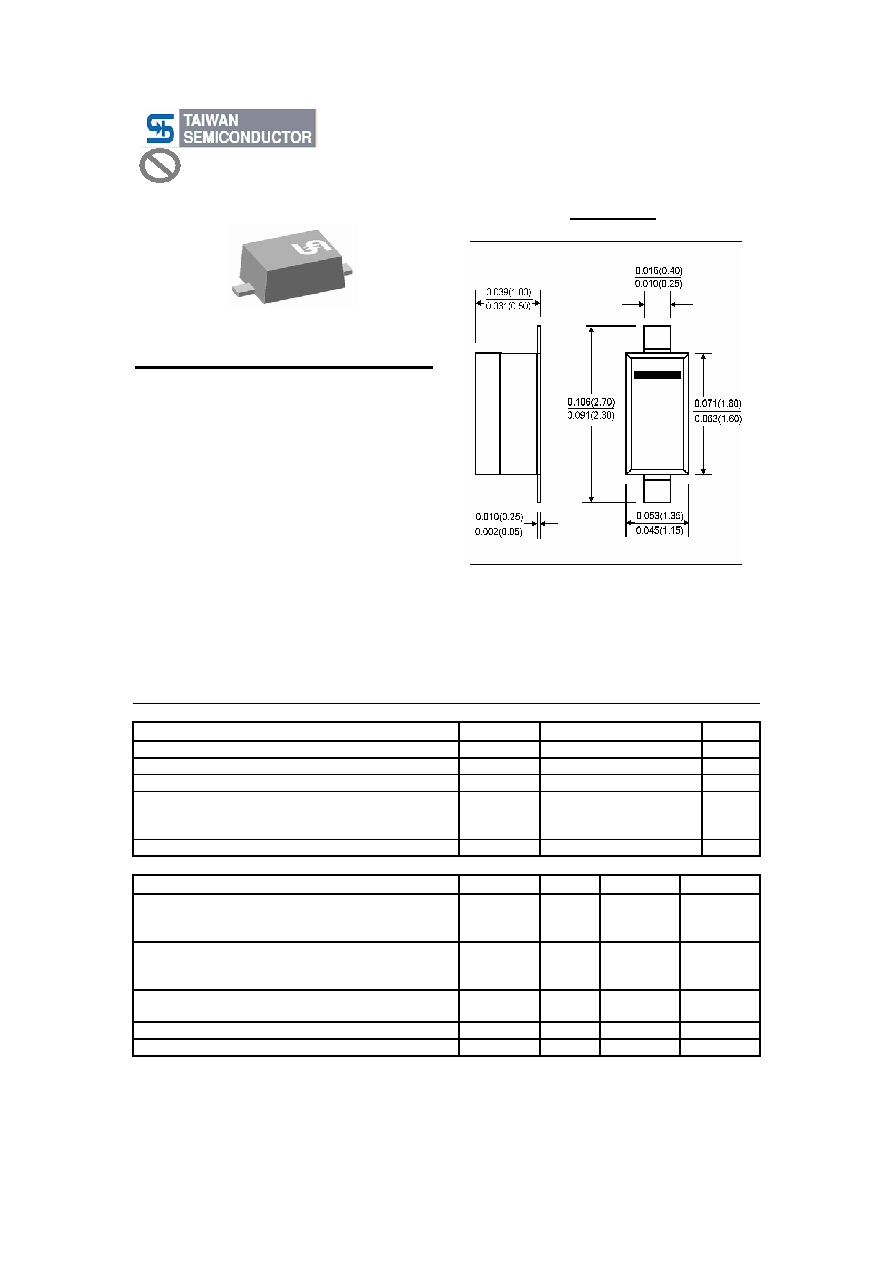

BAV19WS/BAV20WS/BAV21WS

0.2W Surface Mount Flat Lead

High Voltage Switching Diode

SOD-323F

Features

Flat Lead SOD-323F small outline plastic

package

Surface device type mounting

Moisture sensitivity level 1

Clip bonding construction, good thermal

capability

RoHS compliant

Matte Tin (Sn) lead finish

Band indicates cathode

Dimensions in inches and (millimeters)

Maximum Ratings and Electrical Characteristics

Rating at 25

oCambient temperature unless otherwise specified.

Maximum Ratings

Type Number

Symbol

Value

Units

Power Dissipation

Pd

200

mW

Repetitive Peak Reverse Voltage

VRRM

250

V

Average Rectified Forward Current

IF(AV)

200

mA

Non-Repetitive Peak Forward Surge Current

@Pulse Width=1.0 Second

@ Pulse Width=1.0usecond

IFSM

4.0

1.0

A

Operating and Storage Temperature Range

TJ, TSTG

-65 to + 150

OC

Electrical Characteristics

Type Number

Symbol

Min

Max

Units

Breakdown Voltage

BAV19WS @ 100uA

BAV20WS @ 100uA

BAV21WS @ 100uA

BV

120

200

250

V

Reverse Leakage Current

BAV19WS

BAV20WS

BAV21WS

IR

100

nA

Forward Voltage (Note 3)

@ IF=100mA

@ IF=200mA

VF

1.0

1.25

V

Junction Capacitance

VR=0, f=1.0MHz

Cj

-

5.0

pF

Reverse Recovery Time (Note 1)

trr

-

50

nS

Note: 1 Reverse Recovery Test Conditions: IF=IR=30mA, Irr=3mA, RL=100

Ω.

Version: A07
