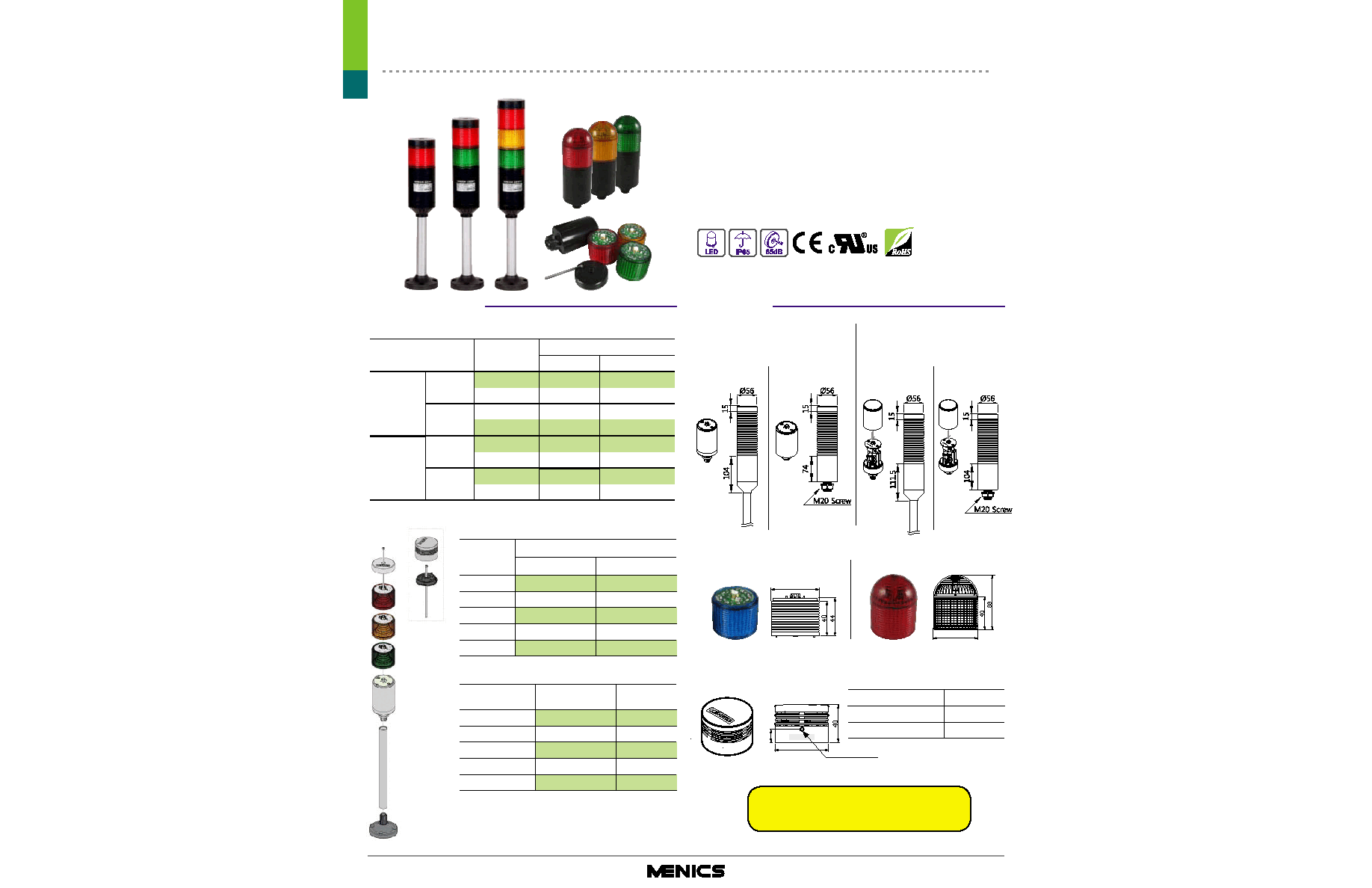

TOWER LIGHTS

PTE Ø56mmLEDModularStyleSteady&FlashingwithBuzzer

Order Information

Dimensions

LED modular components

Bright & even light distribution through prism-cut lenses

Fast & easy assembly with inter-locking construction

3 base body options

Optional 85dB Buzzer (fixed or adjustable volume)

NEMA 4x / IP65 rated

RoHS compliant

•

Body Units

Body Type

Voltage

Part Number

Steady

Steady & Flashing

Lead Wire

Connection

Pole

Mounting

AC 90~240V

PTE-A-FF

PTE-AF-FF

DC/AC 24V

PTE-A-02

PTE-AF-02

Surface

Mounting

AC 90~240V

PTE-S-FF

PTE-SF-FF

DC/AC 24V

PTE-S-02

PTE-SF-02

Terminal

Connection

Pole

Mounting

AC 90~240V

PTE-TP-FF

PTE-TPF-FF

DC/AC 24V

PTE-TP-02

PTE-TPF-02

Surface

Mounting

AC 90~240V

PTE-TC-FF

PTE-TCF-FF

DC/AC 24V

PTE-TC-02

PTE-TCF-02

LED Modules

LED Color

Part Number

Standard Module

Dome Head Module

RED

PTE-02R

PTD-02R

Yellow

PTE-02Y

PTD-02Y

Green

PTE-02G

PTD-02G

Blue

PTE-02B

PTD-02B

*Clear

PTE-02C

PTD-02C

*Clear Module cannot be used with Buzzer.

Buzzer Kits (Optional)

Buzzer Style

Part Number

Fixed Sound Level

MPZ-56F

Adjustable Sound Level

MPZ-56G

*Note: Max. number of tier including Buzzer is 5.

Standard Modules

Dome Head Modules

Ø56

Locking Bolts

Number of LED

Stacks

Part Number

Size

1 Stack

B-PTE-1

M4, 65mm

2 Stacks

B-PTE-2

M4, 105mm

3 Stacks

B-PTE-3

M4, 145mm

4 Stacks

B-PTE-4

M4, 185mm

5 Stacks

B-PTE-5

M4, 225mm

*Note: Do NOT count Buzzer as a stack.

Buzzer Kit

Locking Bolt

Body Unit

LED Modules

Mounting

Accessories

PTE-A-□□

PTE-AF-□□

PTE-S-□□

PTE-SF-□□

PTE-TP-□□

PTE-TPF-□□

unit: mm

See

Page 13-14

for Mounting Options and Accessories.

Buzzer Kits

Ø56

14.8

Sound Level Adjuster

Lead Wire Connection

Terminal Connection

PTE-TC-□□

PTE-TCF-□□

Pole Mounting

Surface Mounting

Pole Mounting

Surface Mounting
