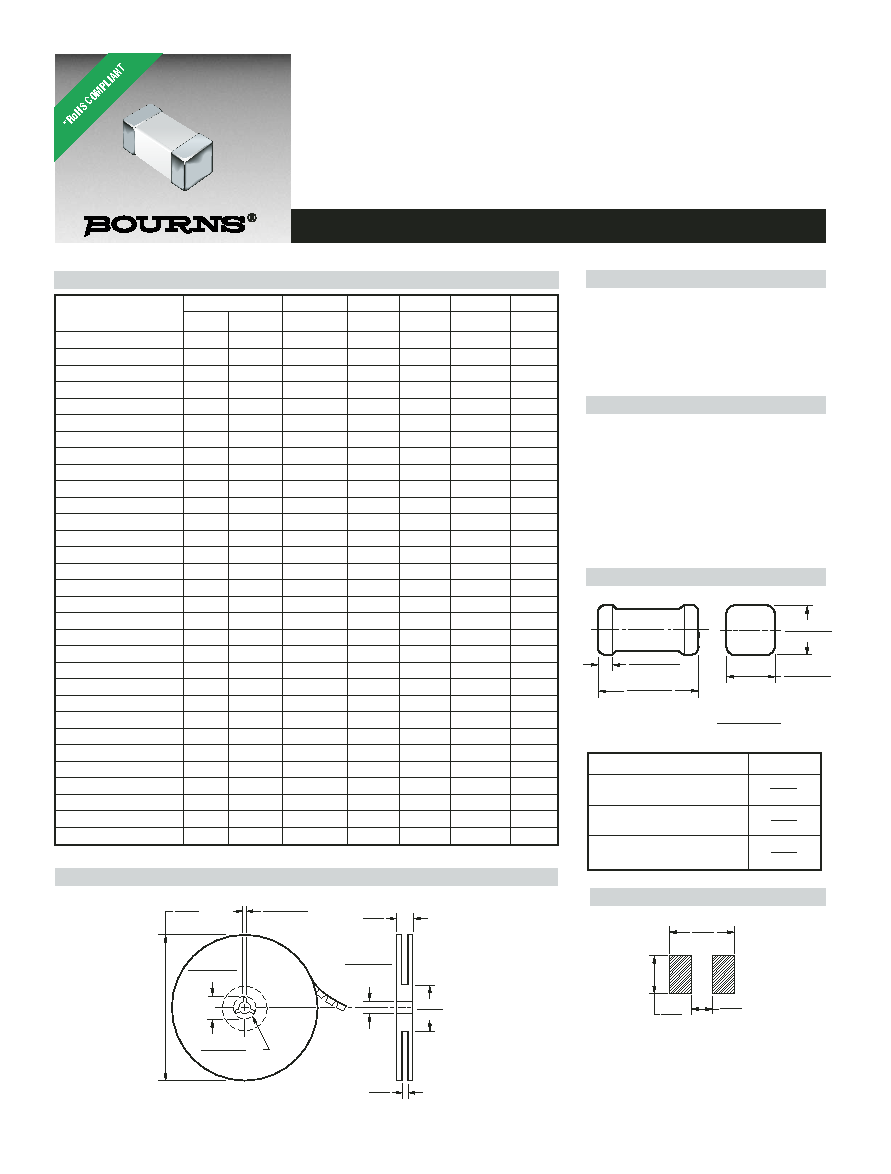

1 / 2 page  Bourns Part No. Inductance Q typ. Test Freq. SRF MHz DCR I rms nH Tol. % (@ 100 MHz) L MHz min. mohm max. mA max. CE201210-1N5D 1.5 ± 0.3 nH 21 100 4000 100 300 CE201210-1N8D 1.8 ± 0.3 nH 18 100 4000 100 300 CE201210-2N2D 2.2 ± 0.3 nH 18 100 4000 100 300 CE201210-2N7D 2.7 ± 0.3 nH 19 100 4000 100 300 CE201210-3N3J 3.3 ± 5 16 100 4000 130 300 CE201210-3N9J 3.9 ± 5 18 100 4000 150 300 CE201210-4N7J 4.7 ± 5 18 100 3500 200 300 CE201210-5N6J 5.6 ± 5 20 100 3200 230 300 CE201210-6N8J 6.8 ± 5 20 100 2800 250 300 CE201210-8N2J 8.2 ± 5 21 100 2400 280 300 CE201210-10NJ 10 ± 5 20 100 2100 300 300 CE201210-12NJ 12 ± 5 21 100 1900 350 300 CE201210-15NJ 15 ± 5 22 100 1600 400 300 CE201210-18NJ 18 ± 5 24 100 1500 450 300 CE201210-22NJ 22 ± 5 23 100 1400 500 300 CE201210-27NJ 27 ± 5 23 100 1300 550 300 CE201210-33NJ 33 ± 5 24 100 1200 600 300 CE201210-39NJ 39 ± 5 23 100 1000 650 300 CE201210-47NJ 47 ± 5 23 100 900 700 300 CE201210-56NJ 56 ± 5 23 100 800 750 300 CE201210-68NJ 68 ± 5 25 100 700 800 300 CE201210-82NJ 82 ± 5 24 100 600 900 300 CE201210-R10J 100 ± 5 23 100 600 900 300 CE201210-R12J 120 ± 5 22 50 500 950 300 CE201210-R15J 150 ± 5 22 50 500 1000 300 CE201210-R18J 180 ± 5 23 50 400 1100 300 CE201210-R22J 220 ± 5 20 50 350 1200 300 CE201210-R27J 270 ± 5 20 50 300 1300 300 CE201210-R33J 330 ± 5 22 50 250 1400 300 CE201210-R39J 390 ± 5 17 50 250 1300 300 CE201210-R47J 470 ± 5 17 50 200 1500 300 9.0 (.354) 12.0 (.472) 2.0 ± 0.8 (.079 ± .031) 60.0 (2.362) 178.0 (7.00) DIA. 13.5 ± 0.5 (.531 ± .020) DIA. 13.0 ± 0.5 (.512 ± .020) DIA. 21.0 ± 0.8 (.827 ± .031) Packaging Specifications CE201210 Series - Multi-Layer Chip Inductors Features ■ 0805 size ■ Available in E12 Series ■ High frequency ■ Nickel barrier ■ Lead free Applications ■ Mobil phones ■ Cellular phones ■ CTV, VCR, HIC, FDD ■ Automotive electronics Electrical Specifications Product Dimensions Recommended Layout 2.0 ± 0.2 (.079 ± .008) A ± 0.20 (A ± 0.008) 0.5 ± 0.3 (0.02 ± 0.008) 1.0 ± 0.2 (.039 ± 0.08) General Specifications Temperature Rise ...................30 ˚C max. at rated current Operating Temperature .-55 °C to +125 °C Storage Temperature..-55 °C to +125 °C Reflow Soldering ...230 °C, 50 sec. max. Resistance to Soldering Heat ...............................260 ˚C, 10 seconds Materials Base Material .............................Ceramic Terminal.....................................Ag/Ni/Sn Packaging: 0.85 mm product height ................................4,000 pcs. per reel 1.00 mm product height ................................4,000 pcs. per reel 1.25 mm product height ................................2,000 pcs. per reel 1.0 (.039) 1.0 (.039) 3.0 (.118) DIMENSIONS: MM (INCHES) Model Dimension A CE201210-1N5D through CE201210-82NJ CE201210-R10J through CE201210-R39J CE201210-R47J 0.85 (0.033) 1.00 (0.039) 1.25 (0.050) *RoHS Directive 2002/95/EC Jan 27 2003 including Annex Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications. |
