SCOPE: This specification applies to

– CSMXX0A1- Header

SPECIFICATIONS:

Number of poles: 2

– 25

Sides configuration: Not stackable

Pitch: 5 mm

Voltage: 300V

Current: 12A

Wire section: 0.05

– 2.5 mm2

Available approvals: UL, VDE, IMQ, CSA

Insertion force per pole: max. 2 N

Withdrawal force per pole: min. 1,2 N

PCB thickness: max. 2.4 mm

PBC hole diameter: 1.4 mm

Operating temperature range: - 40°C to +105°C

Contact resistance: <15 mOhm

Insulation resistance: >1 GOhm

Terminal contact: Nickel and tin on copper alloy

Insulating housing material: PA polyamide

Color: Green (Standard)

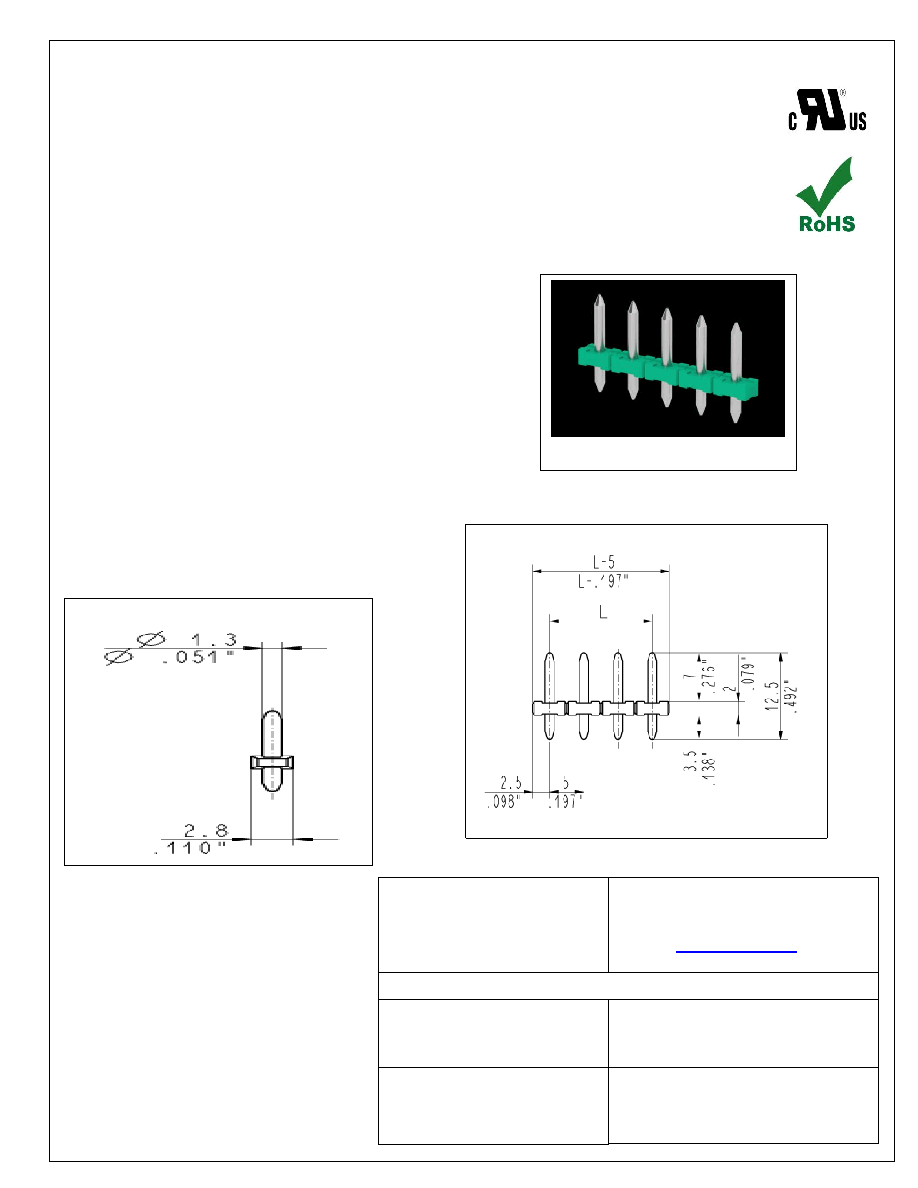

DIMENSIONS:

THE INFORMATION DISCLOSED HEREIN WAS ORIGINATED BY AND

IS THE PROPERTY OF BLOCKMASTER ELECTRONICS INC. AND

EXCEPT FOR USE EXPRESSLY GRANTED TO THE UNITED STATES

GOVERNMENT BLOCKMASTER ELECTRONICS INC.RESERVES ALL

PATENT PROPRIETARY DESIGN, USE, SALE, MANUFACTURING AND

PRODUCTION RIGHTS THERETO. THIS DOES NOT APPLY TO

VENDOR.

Date:

6/11/2017

Header

Drawing Number:

CSMXX0A1

All dimensions are in MM unless otherwise specified

BlockMaster Electronics

1400 Howard Street

Elk Grove Village, IL. 60007

Toll Free: 800-595-8881 FAX: 847-956-1690

www.blockmaster.com

BlockMaster

Confidential and

Proprietary

Mates with:

CSF series

CXF series
