2006-02-20

SCD55100A, SCD55101A, SCD55102A, SCD55103A, SCD55104A

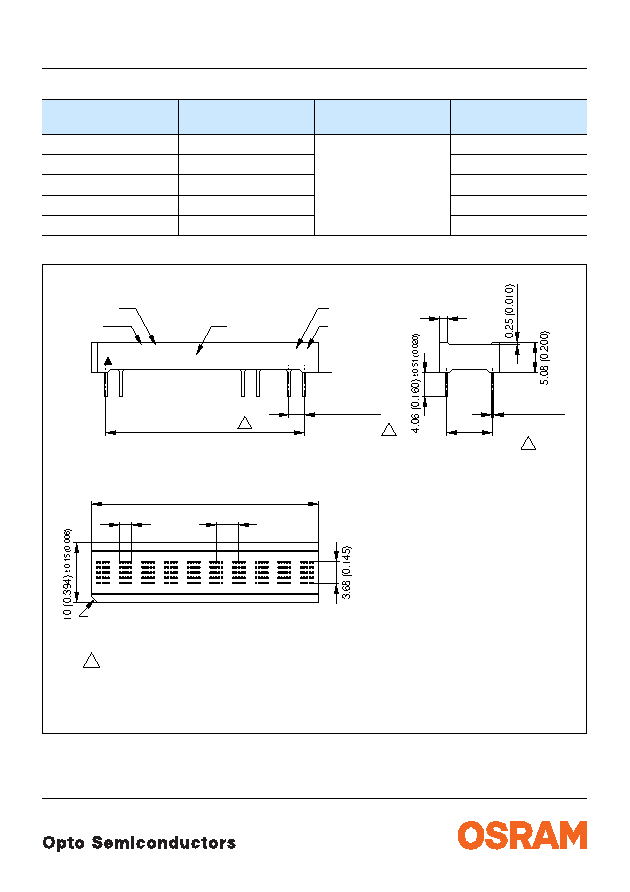

Package Outlines

Dimensions in mm (inch)

Ordering Information

Type

Color of Emission

Character Height

mm (inch)

Ordering Code

SCD55104A

standard red

3.68 (0.145)

Q68100A0988

SCD55101A

yellow

Q68100A0989

SCD55102A

high efficiency red

Q68100A0990

SCD55103A

green

Q68100A0991

SCD55104A

high efficiency green

Q68100A0992

IDOD5211

2.03 (0.080)

3.81 (0.150)

38.1 (1.500) max.

7.62 (0.300) ±0.51 (0.020)

0.3 (0.012) typ.

1.27 (0.050) typ.

Indicator

33.02 (1.300) ref.

Seating Plane

2.54 (0.100) typ.

±0.25 (0.010)

Tol. non accum. 1

SCD5510XA

OSRAM

YYWW

EIA Date Code

Intensity Code

Hue Code

Dimension is at Seating Plane.

2. Display matrix and pins centered on package outline.

3. Display matrix centered to pin array.

4. Tolerance: ±.XXX (0.010)

Color Code

Part No

5. Lead dim .018 wide x .012 THK
