28 / 60 page
IP175A LF
Preliminary Data Sheet
4.8
Initial value set by LED pins
Most configuration pins are shared with LED pin in IP175A LF. These multi-function pins are input during
reset period and are LED output after reset. IP175A LF reads initial value via pins during the reset period.
An initial value is set to 1 (0) by connecting a pin to vcc (gnd) through a 10k
Ω (1kΩ) resistor as shown on
the following figure.

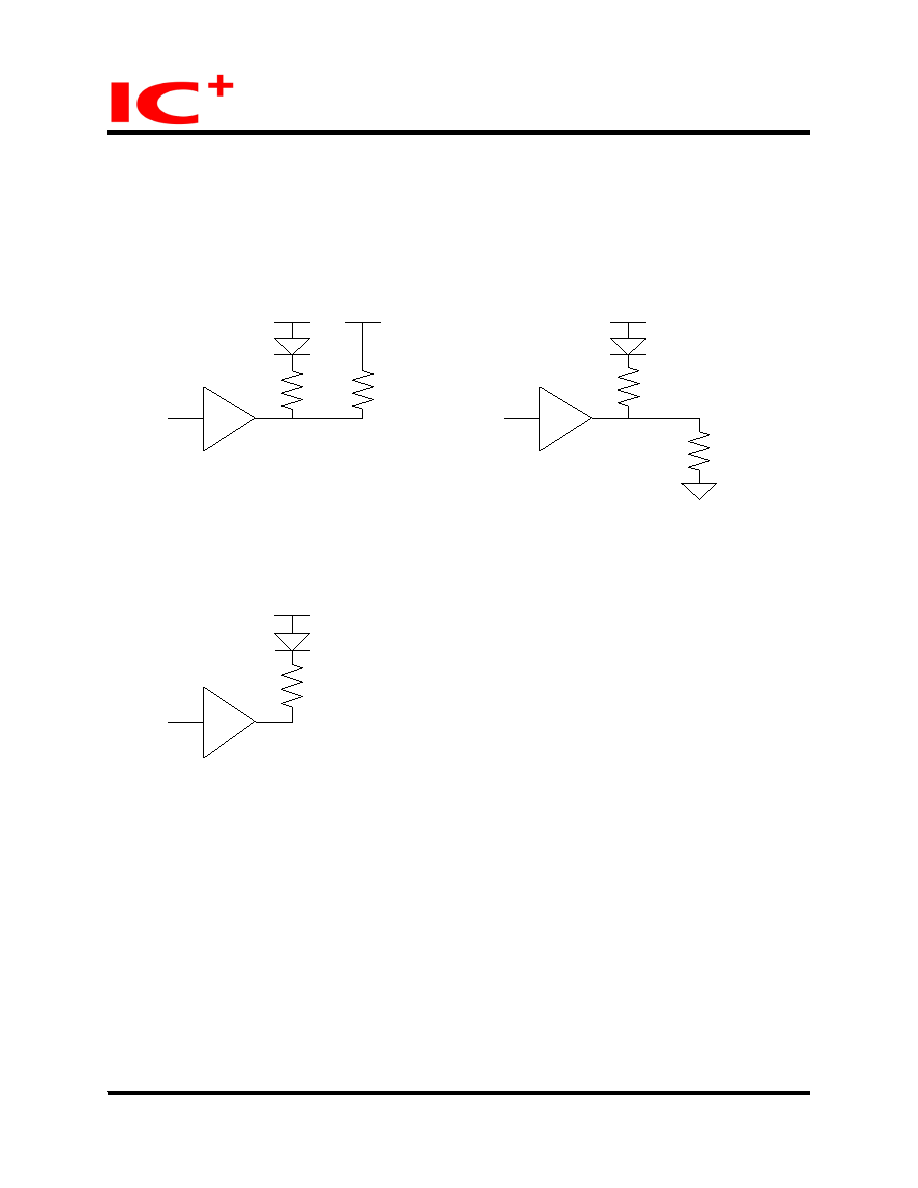

The application circuit is shown below.
LED pin
VCC
VCC
220
1k
LED pin
VCC
220
1k
to set initial value = 1
to set initial value = 0
with pull up 1k ohm resister to VCC
with pull down 1k ohm resister to GND
LED pin
VCC
220
to use default value
(use no resistor to leave it open)
28/60
February 20, 2006
Copyright © 2004, IC Plus Corp.
IP175A LF-DS-R08
