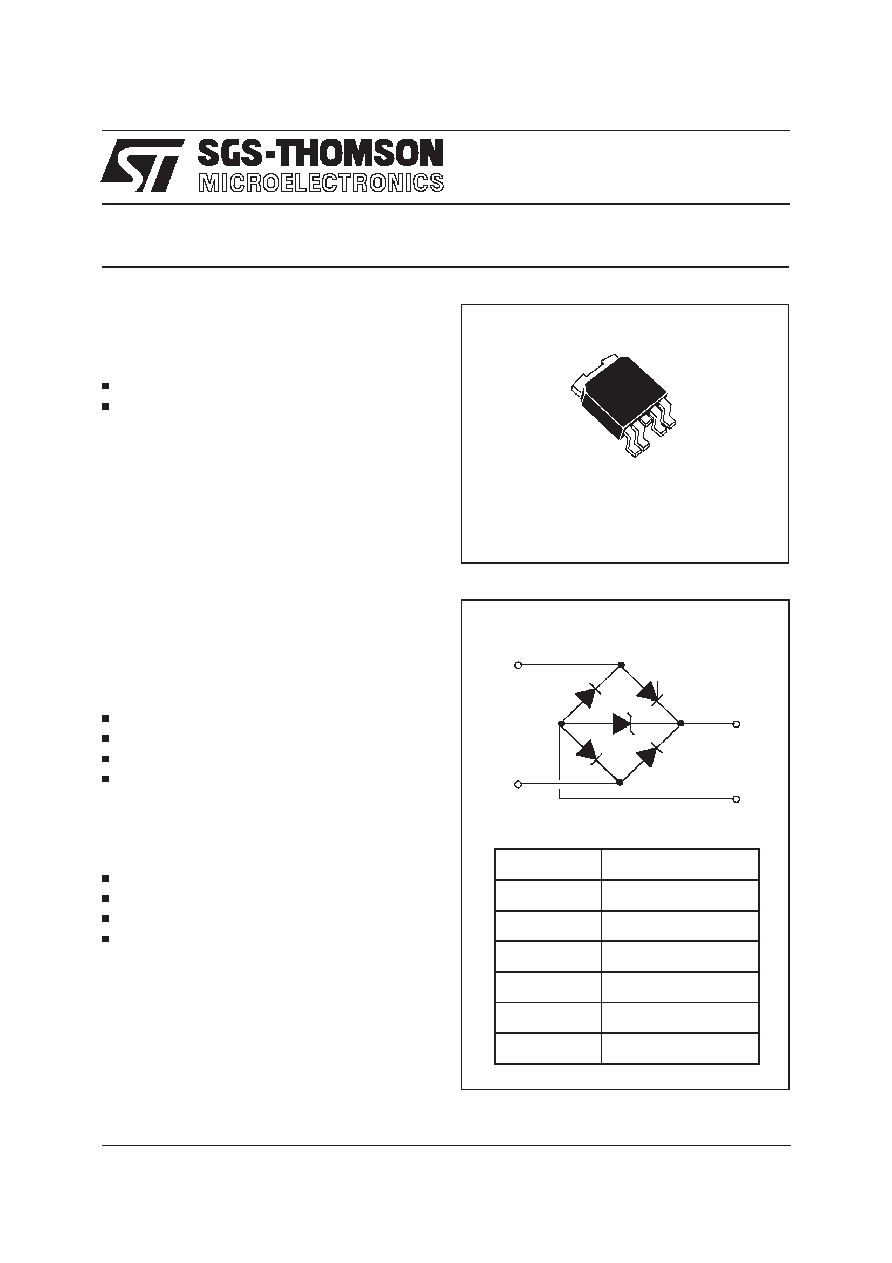

ADB18PS

®

February 1998 - Ed: 2

Peak pulse power dissipation 100 W (8/20

µs)

Stand-off voltage : 18 V

Maximum DC current : 0.5 A

µs)

FEATURES

PPAK-5L

1

TAB

2

3

4

5

PIN-OUT CONFIGURATION

1

5

2

4

Protection combined with rectification

High reliability conferedby monolithic construction

Space saving

Cost effective solution

BENEFITS

AUTOPROTECTED

DIODE BRIDGE

Application Specific Discretes

A.S.D.

TM

Any electronic equipment needing a diode bridge

and protection against transient overvoltage :

Caller Id

Handset

MAIN APPLICATIONS

The ADB18PS combines a diode bridge and a

clamping protection function.

Integrated monolithically within a SMD package,

this device allows space saving and greater

reliability.

It provides both rectification and protection for low

power equipment directly supplied by mains.

DESCRIPTION

Pin

Description

1

DC output

2

AC input

3

Not accessible

4

AC input

5

DC output

TAB

Not to be connected

1/3
