MLX90609
Angular Rate Sensor (Standard version)
390109060901
Page 11 of 22
Data Sheet
Rev 007
January/08

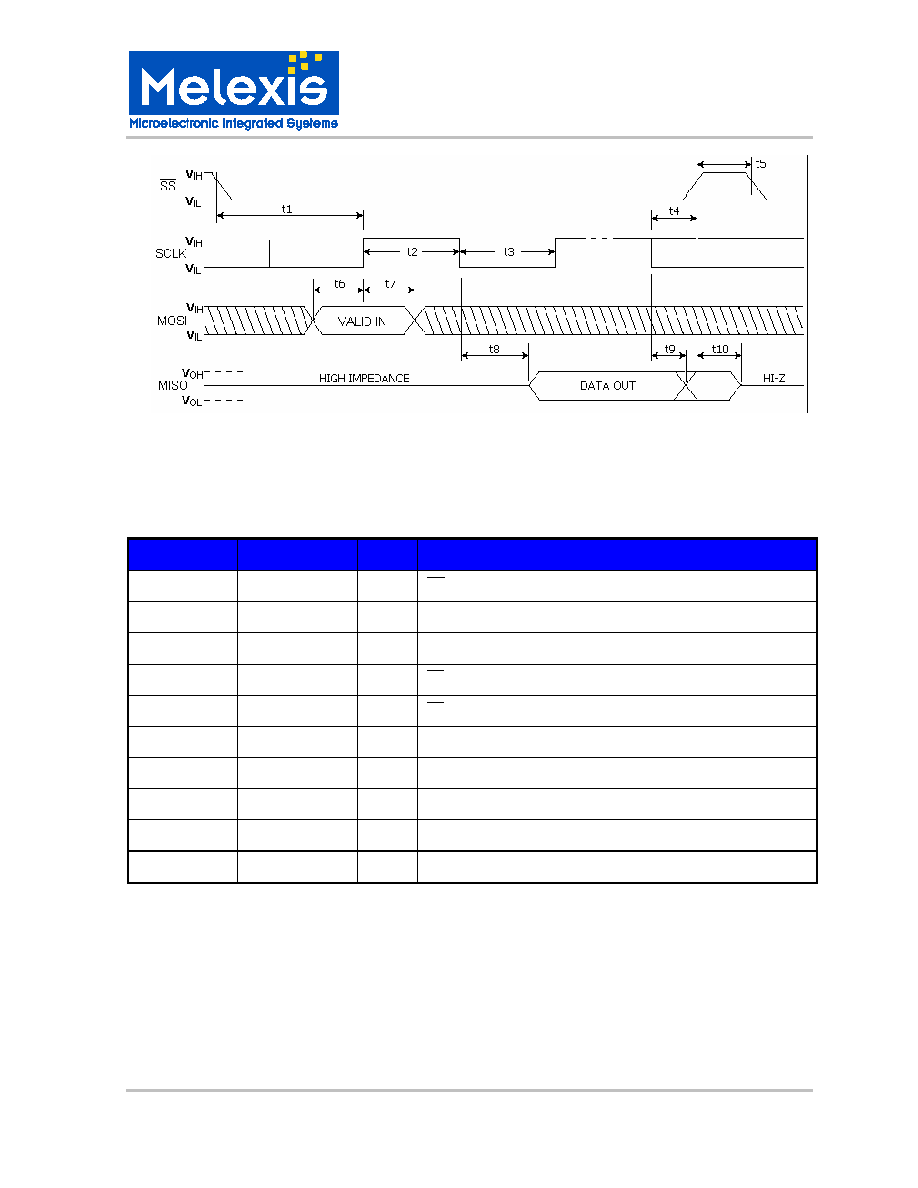

Figure 5-4.
Synchronous Data Timing
Parameter
Limit
Units
Test Conditions/Comments
t1
Minimum 30
ns
SS to SCLK Rising Edge Setup Time
t2
Minimum 80
ns
SCLK High Duration
t3
Minimum 80
ns
SCLK Low Duration
t4
Minimum 0
ns
SS Hold Time
t5
Minimum 50
ns
SS High Duration
t6
Minimum 80
ns
Data In Setup Time
t7
Minimum 50
ns
Data In Hold Time
t8
Maximum 50
ns
Output Valid
t9
Minimum 0
ns
Output Hold Time
t10
Maximum 40
ns
Output Disable Time
Table 5. SPI Timing Characteristics (see Figure 5-4Figure 5-4)
