W83310S-R2/W83310G-R2
-6-
8.

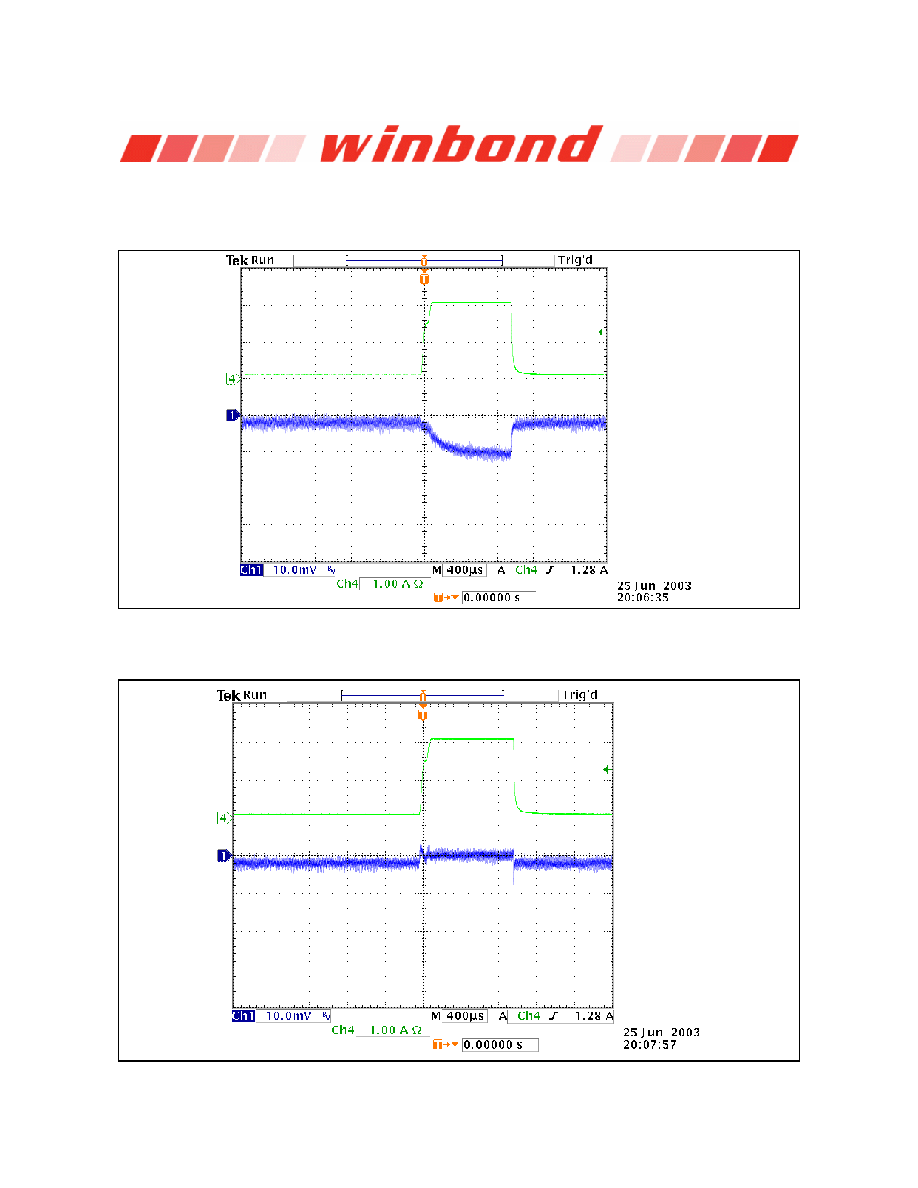

TYPICAL OPERATING WAVEFORM
Load regulation with test condition - VCTRL=3.3V; VIN=2.5V; VOUT=1.25V; 2.0Amp 1ms duty pulse
driving current.
ΔV ≈ 9mV.
Load regulation with test condition - VCTRL=3.3V; VIN=2.5V; VOUT=1.25V; 2.0Amp 1ms duty pulse
sinking current.
ΔV ≈ 4mV.
