KGL4115HW-R 데이터시트(PDF) 6 Page - OKI electronic componets |
|
|
|||||||||||||||||||||||||||||
KGL4115HW-R 데이터시트(HTML) 6 Page - OKI electronic componets |
|

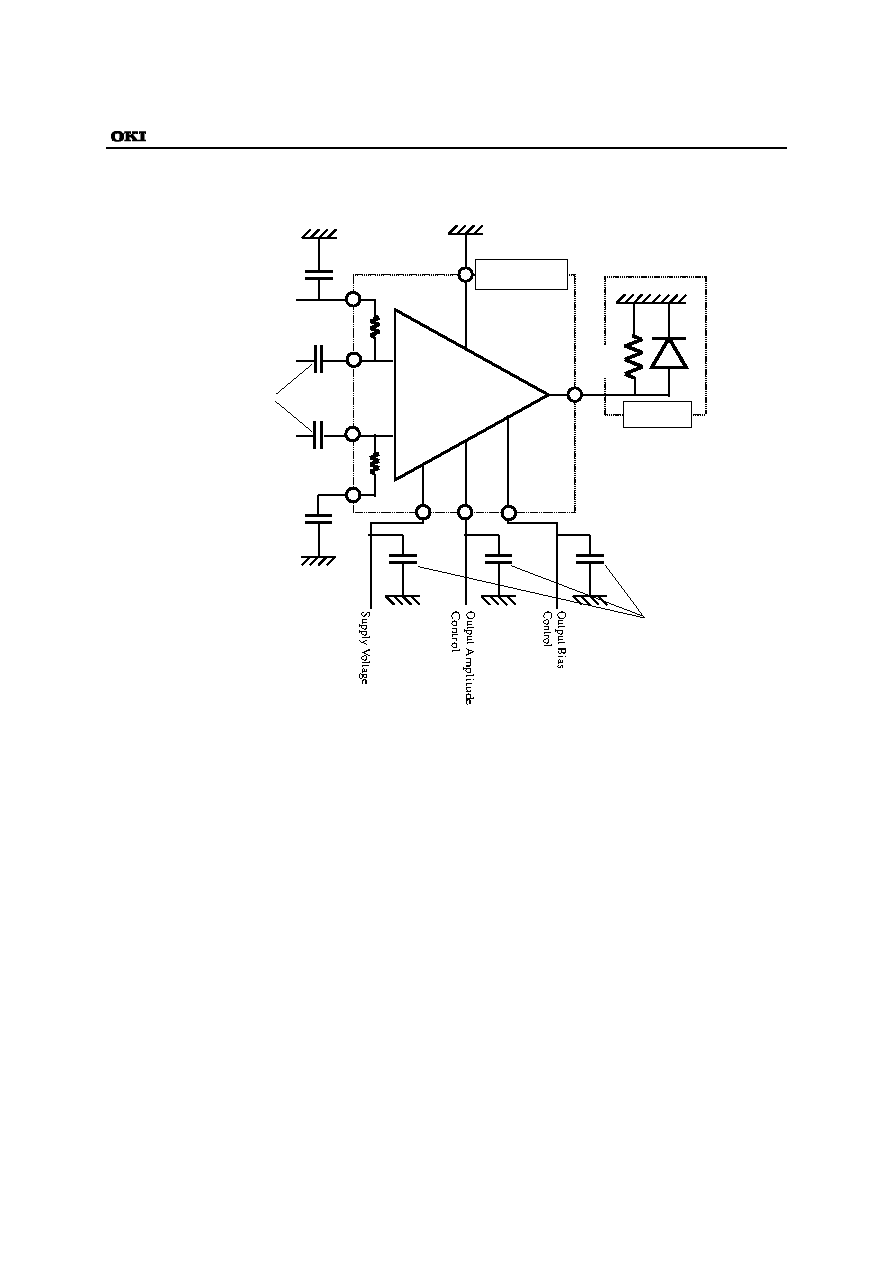

6 / 7 page ![]() ODHKGL4115HW-R-02 Electronic Components KGL4115HW-R 6 TYPICAL APPLICATION APPLICATION NOTE 1. For stable operation; 1-1. To prevent a dependence of “X-Point” on the supply voltage VS, (1) Use an external voltage source of –3.8V for “VB2”, or (2) Control the voltage of “VB1”, so that the voltage difference “VB1–VB2” is constant. 1-2. To prevent a dependence of “Output amplitude” on the supply voltage VS, Control the voltage of “VC1”, so that the voltage difference “VC1–VS” is constant. 1-3. To prevent a dependence of “Output bias control voltage” on supply voltage VS, Control the voltage of “VC2”, so that the voltage difference “VC2–VS” is constant. 2. Power-up/shut-down sequence; For power-up, supply control voltages (VB1, (VB2), VC1, VC2) at first, then Vs. For shut-down, Vs at first, then control voltages. Customer does not need to care about the sequence for the control voltages (VB1,(VB2),VC1,VC2). 3. Under “no signal input” condition, the operation may not be stable. Inverted Data Input X-Point Control Data Input IN VB1 VS VC1 VC2 OUT GND Chip Capacitor ≥ 0.1µF VB2 KGL4115HW-R EAM 50 Chip Capacitor ≥ 0.1µF Blocking Capacitor Ex. 0.1 µF INB Chip Capacitor ≥ 0.1µF |
|
|
