Power Inductors <SMD Type: CDMC Series>

Type: CDMC8D28

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

①

②

9.5 Max.

:Electrode

1

0.01 Min.

3.0 Max.

1.7±0.3

1.7±0.3

2

10.5

5.0

◆

Product Description

・

9.5×8.7mm Max. (L×W), 3.0mm Max. Height.

・

Inductance range: 0.18～3.9μH

・

Rated current range: 6.4～25.8A

・

In addition to the standard versions of inductors shown here, custom inductors

are available to meet your exact requirements.

◆

Feature

・

Magnetically shielded construction.

・

Metal powder molded type, super high current inductors.

・

High current inductor for Server, Notebook PC ,CPU etc as DC-DC Converter inductors.

・

RoHS Compliance.

◆

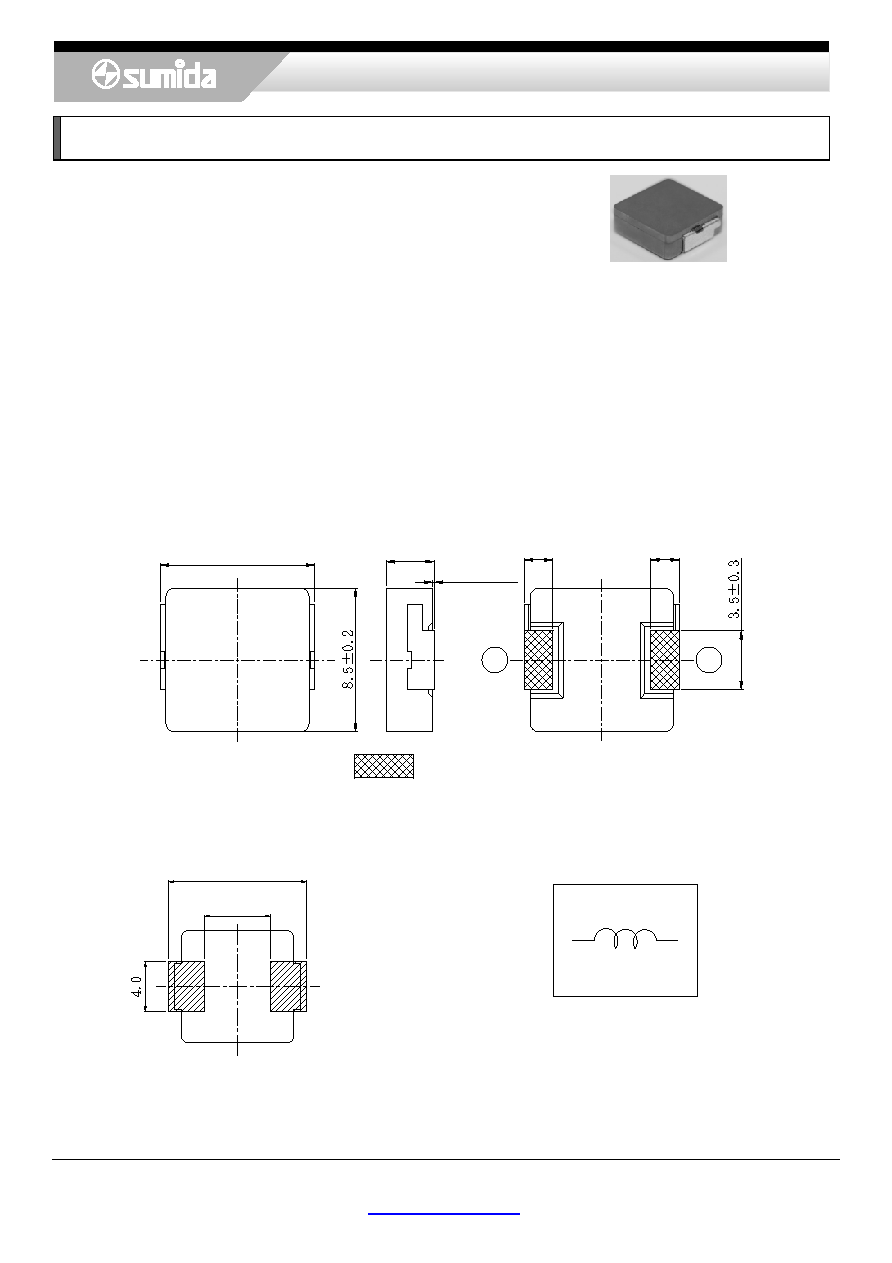

Dimensions (mm)

◆

Land Pattern (mm)

◆

Schematics (Bottom)
