BL-R4532L 데이터시트(PDF) 2 Page - BRIGHT LED ELECTRONICS CORP

부품명 BL-R4532L
상세설명  GaAsP/GaP Hi-Eff Red Low power consumption.
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  BRIGHT [BRIGHT LED ELECTRONICS CORP]
홈페이지  http://www.brightled.co.kr
Logo BRIGHT - BRIGHT LED ELECTRONICS CORP

BL-R4532L 데이터시트(HTML) 2 Page - BRIGHT LED ELECTRONICS CORP

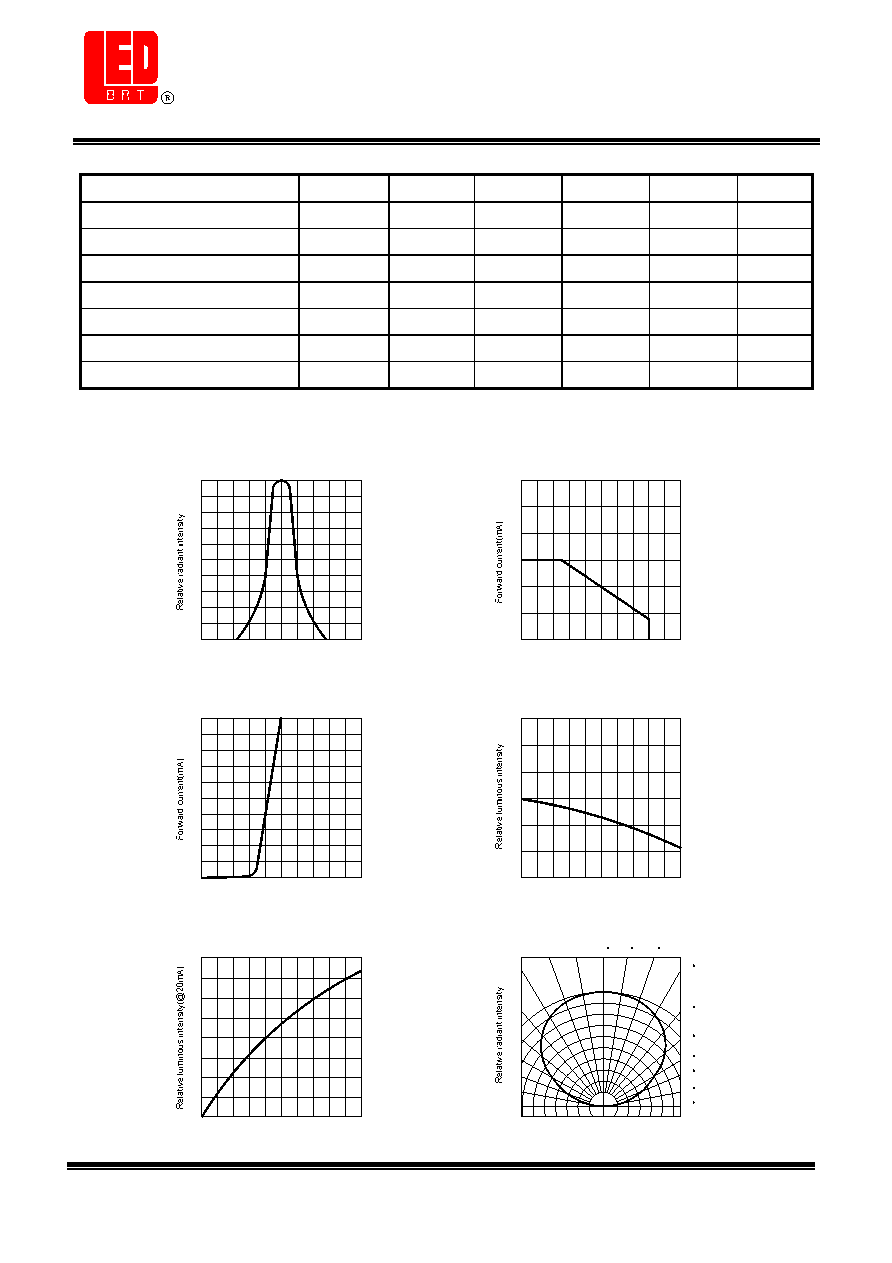

  BL-R4532L Datasheet HTML 1Page - BRIGHT LED ELECTRONICS CORP BL-R4532L Datasheet HTML 2Page - BRIGHT LED ELECTRONICS CORP
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image
B
BR
RIIG
GH
HT
T L
LE
ED
D E
EL
LE
EC
CT
TR
RO
ON
NIIC
CS
S C
CO
OR
RP
P..
B
BL
L--R
R4
45
53
32
2L
L--A
AT
T
Ver.1.0 Page 2 of 2
