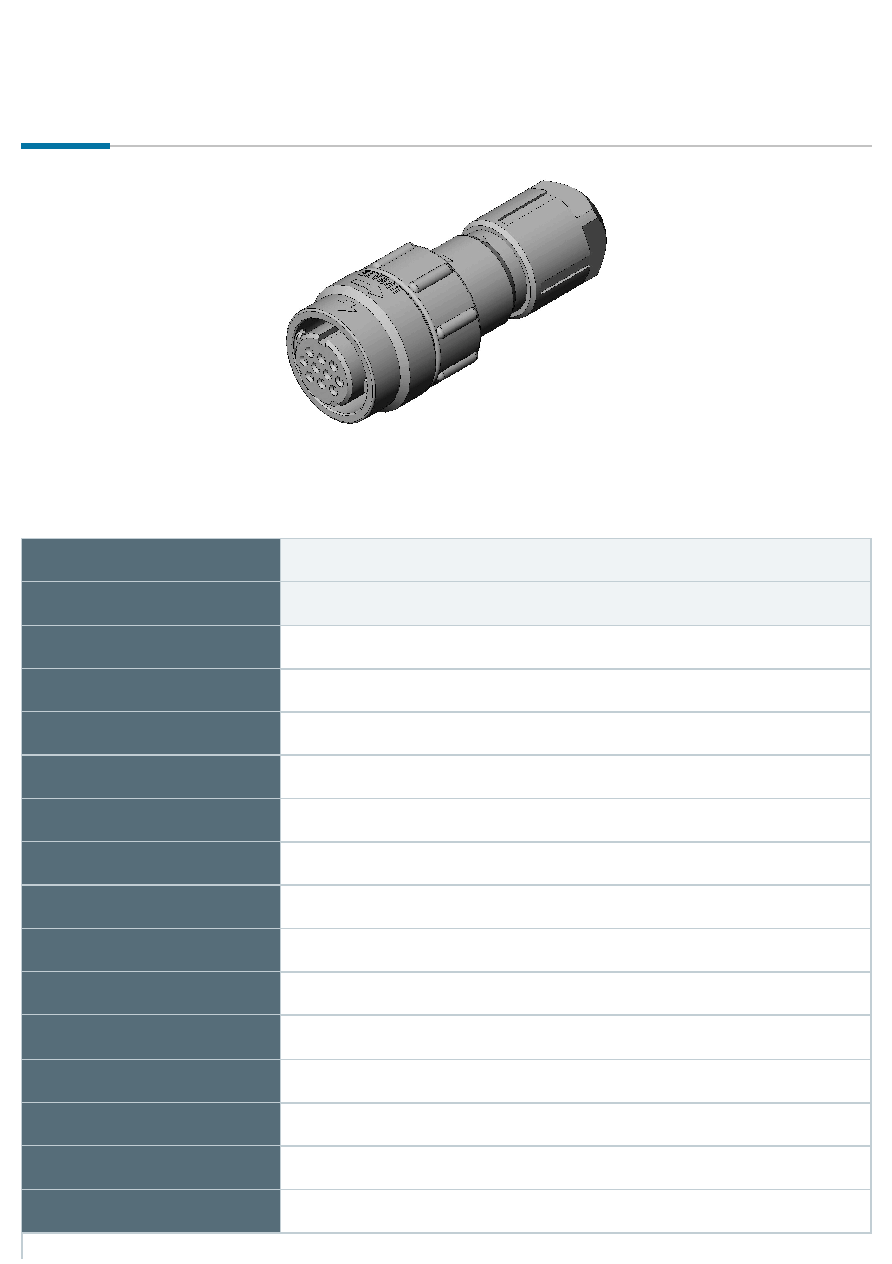

1 / 4 page

JN2DS10SL2-R

Features

Small circular connector, With bushing (Gray), 10 pos., Plug

Part Number

JN2DS10SL2-R

Status

Active

Number of Positions

10 pos.

Rated Current

3A

Rated Voltage

Waterproof/ Non-waterproof

Waterproof (when mated)

Applications

Industrial equipment interface　　

Connector Type

Plug

Connector Style

Straight

Contact Type

Socket (Sold separately)

Wire Termination Method

Crimp or Soldering

Applicable Wire Size (AWG)

Coupling Style

One-touch locking

Contact Size

#22

Shell Size

S

Contact Arrangement Code

Product Details
