BYT30PI 데이터시트(PDF) 2 Page - STMicroelectronics

부품명 BYT30PI
상세설명  FAST RECOVERY RECTIFIER DIODE
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

BYT30PI 데이터시트(HTML) 2 Page - STMicroelectronics

  BYT30PI Datasheet HTML 1Page - STMicroelectronics BYT30PI Datasheet HTML 2Page - STMicroelectronics BYT30PI Datasheet HTML 3Page - STMicroelectronics BYT30PI Datasheet HTML 4Page - STMicroelectronics BYT30PI Datasheet HTML 5Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out

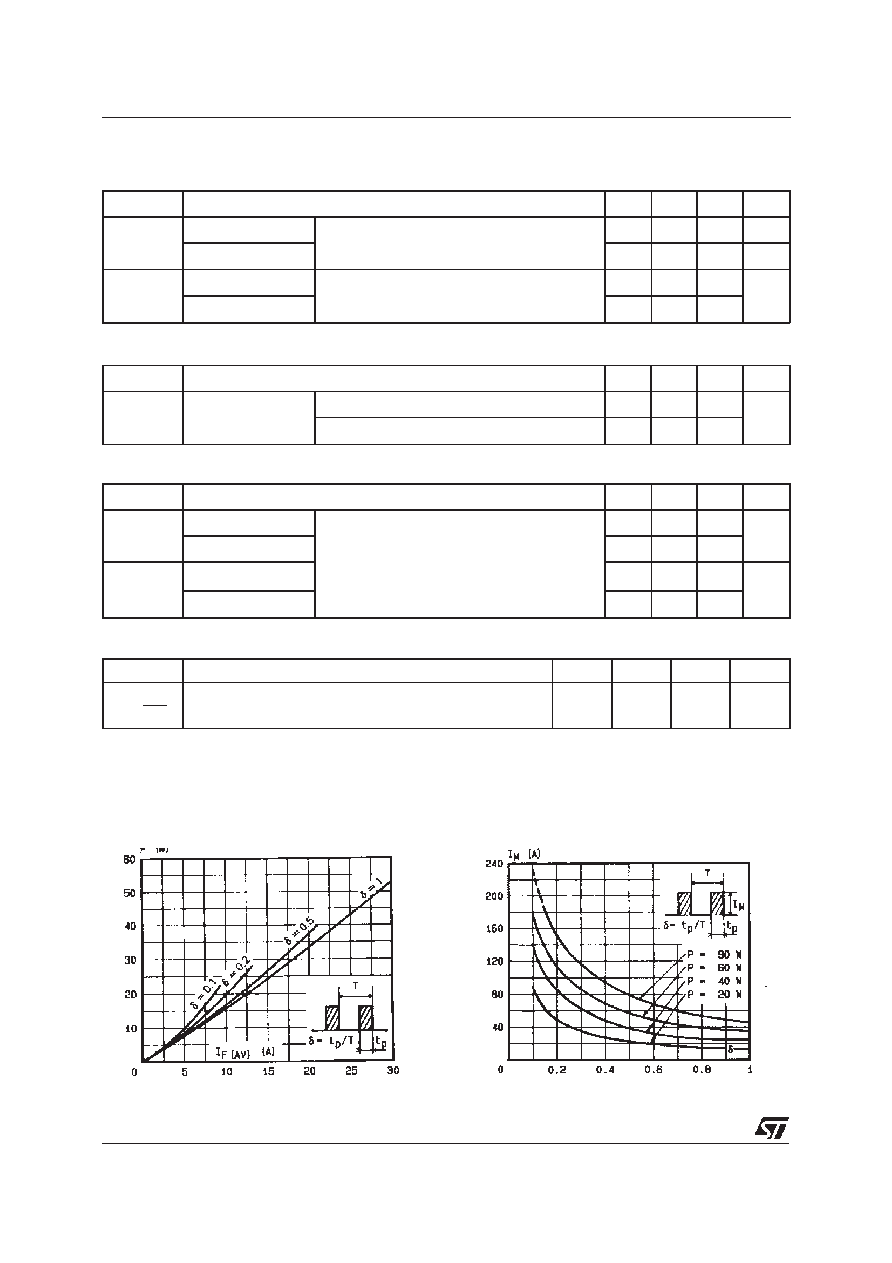

 2 / 5 page
background image
Synbol
Test Conditions
Min.
Typ.
Max.
Unit
IR
Tj =25
°C
VR =VRRM
100
µA
Tj = 100
°C
5mA
VF
Tj =25
°C
IF = 30A
1.9
V
Tj = 100
°C
1.8
STATIC CHARACTERISTICS
ELECTRICAL CHARACTERISTICS
Symbol
Test Conditions
Min.
Typ.
Max.
Unit
trr
Tj =25
°CIF =1A
diF/dt = - 15A/
µsVR = 30V
165
ns
IF = 0.5A
IR =1A
Irr = 0.25A
70
RECOVERY CHARACTERISTICS
Symbol
Test Conditions
Min.
Typ.
Max.
Unit
tIRM
diF/dt = - 120A/
µs
VCC = 200 V
IF = 30A
Lp
≤ 0.05µHTj = 100°C
See figure 11
200
ns
diF/dt = - 240A/
µs
120
IRM
diF/dt = -120A/
µs
19.5
A
diF/dt = - 240A/
µs
22
TURN-OFF SWITCHING CHARACTERISTICS (Without Series Inductance)
Symbol
Test Conditions
Min.
Typ.
Max.
Unit
C=
VRP
VCC
Tj = 100
°CVCC = 200V
IF =IF(AV)
diF/dt = - 30A/
µsLp =5µH
See figure 12
4.5
TURN-OFF OVERVOLTAGE COEFFICIENT (With Series Inductance)
To evaluate the conduction losses use the following equations:
VF = 1.47 + 0.010 IF
P = 1.47 x IF(AV) + 0.010 IF2(RMS)
Figure 1. Low frequency power losses versus
average current
Figure 2. Peak current versus form factor
2/5
BYT 30PI-1000



Html Pages

1 2 3 4 5
