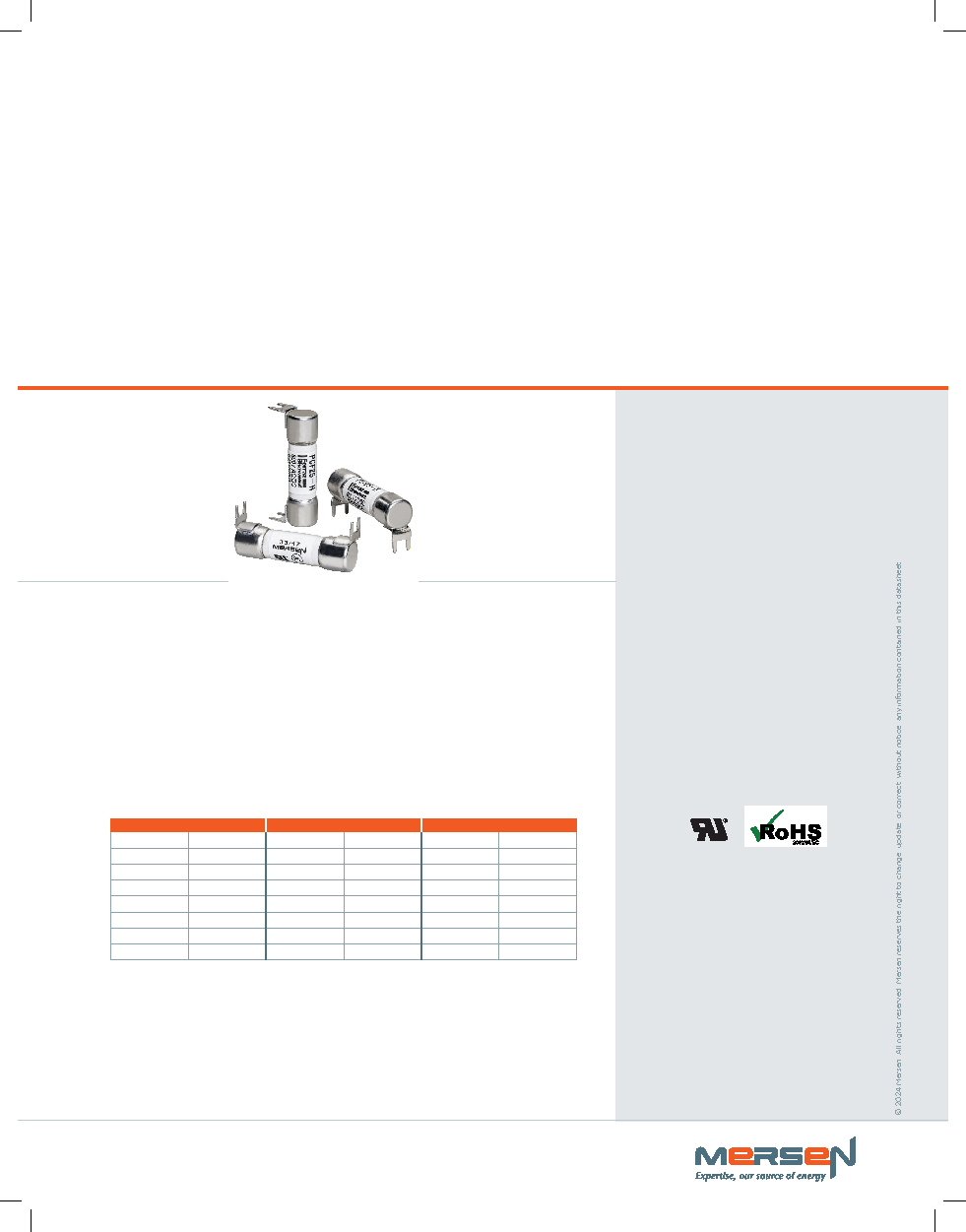

MERSEN.COM

MF 11

RATINGS:

• Volts: 600VAC / DC

• Amps: 1 to 30A

• I.R.: 100kA I.R.

• L/R: ≤10ms

HIGHLIGHTS:

• Fast-acting

• PC board mount

• Three mounting styles

APPLICATIONS:

• Protection of main frame

power boards, circuit breakers,

components

APPROVALS:

• UL Recognized Components File

E60314

Mersen’s PCF series of fast-acting direct-mountable fuses addresses

the increasing need for electrical protection at the PC board as

current and voltage requirements push higher. These fuses help

printed circuit board manufacturers reduce parts by eliminating clips

and fuse blocks and allowing automated assembly. PCF fuses can

be used for the protection of main frame power boards, small circuit

breakers with low-interrupting ratings and other critical components.

PCF fuses bring greatly-increased ampere, voltage and interrupting

ratings to the board itself and are UL Component Recognized.

CATALOG NUMBERS (AMPS)

Slot Mount

Double Hole Mount

Surface Mount

PCF1-R

PCF8-R

PCF1-H

PCF8-H

PCF1-S

PCF8-S

PCF2-R

PCF10-R

PCF2-H

PCF10-H

PCF2-S

PCF10-S

PCF3-R

PCF12-R

PCF3-H

PCF12-H

PCF3-S

PCF12-S

PCF4-R

PCF15-R

PCF4-H

PCF15-H

PCF4-S

PCF15-S

PCF5-R

PCF20-R

PCF5-H

PCF20-H

PCF5-S

PCF20-S

PCF6-R

PCF25-R

PCF6-H

PCF25-H

PCF6-S

PCF25-S

PCF7-R

PCF30-R

PCF7-H

PCF30-H

PCF7-S

PCF30-S

PCF30/50-H

PCF

Fast-Acting PC Mount Fuses

MIDGE T, PC MOUNT & MINIATURE FUSES

FAST-ACTING FUSES FOR DIRECT MOUNTING ON

PRINTED CIRCUIT BOARDS
