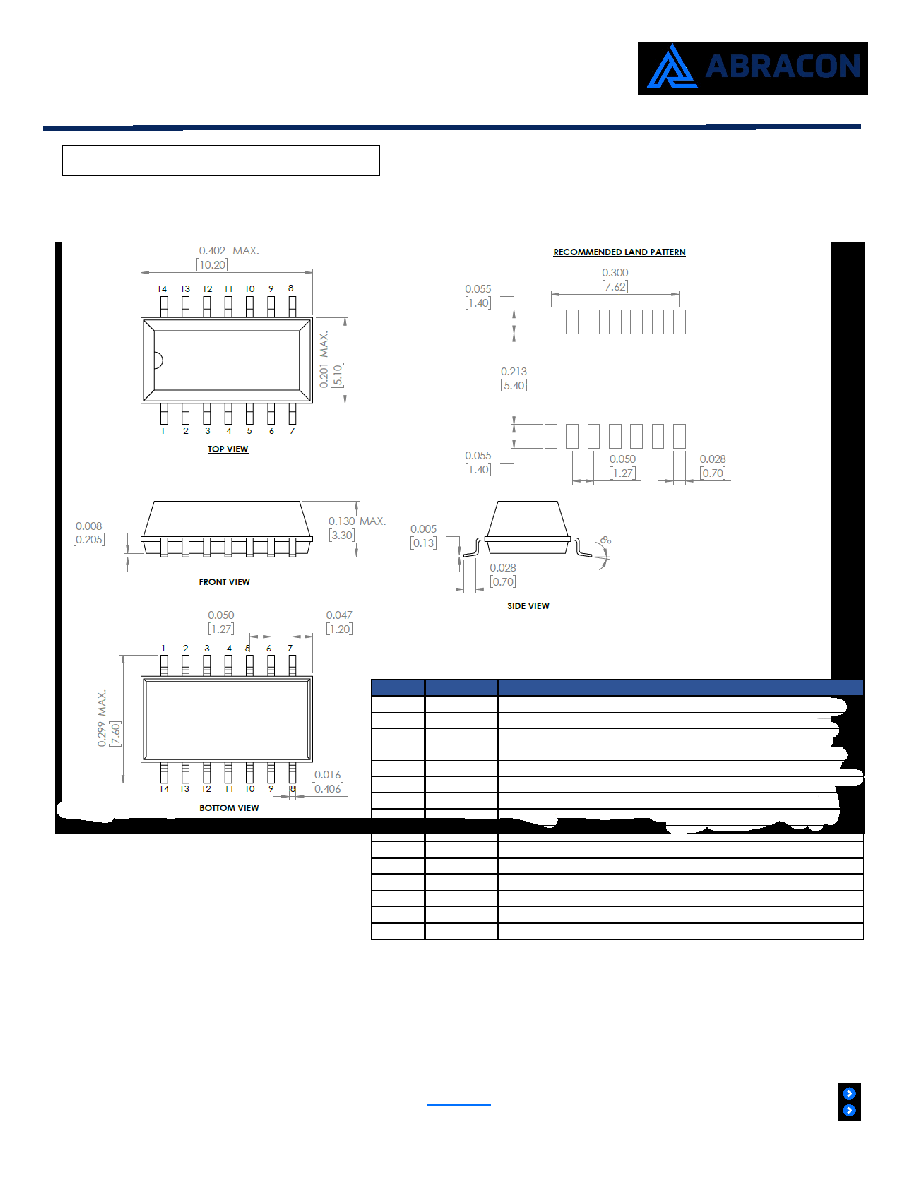

AB-RTC-TC-32.768kHz-2
Real Time Clock Module with I2C Bus
Revision: A 8/4/2025
Page 6
Disclaimer
lign
Check Inventory
R
Sl
lign
Request Samples
Pad # Function
Description
1
T1
Do not connect
2
SCL
I2C clock signal
3
FOUT
Frequency output. Controlled by FOE. Frequency can be set by
FSEL bits.
4
NC
No connect or connect to VDD or GND
5
T2
Do not connect
6
VDD
Power supply
7
FOE
FOUT output control pin. “1” - enable FOUT, “0”- FOUT Hi-Z
8
T5
Do not connect
9
T4
Do not connect
10
/INT
Interrupt Output, Open-Drain
11
GND
Ground
12
T3
Do not connect
13
SDA
I2C data signal
14
NC
No connect or connect to VDD or GND
Mechanical Dimensions
Dimensions: inches[mm]
