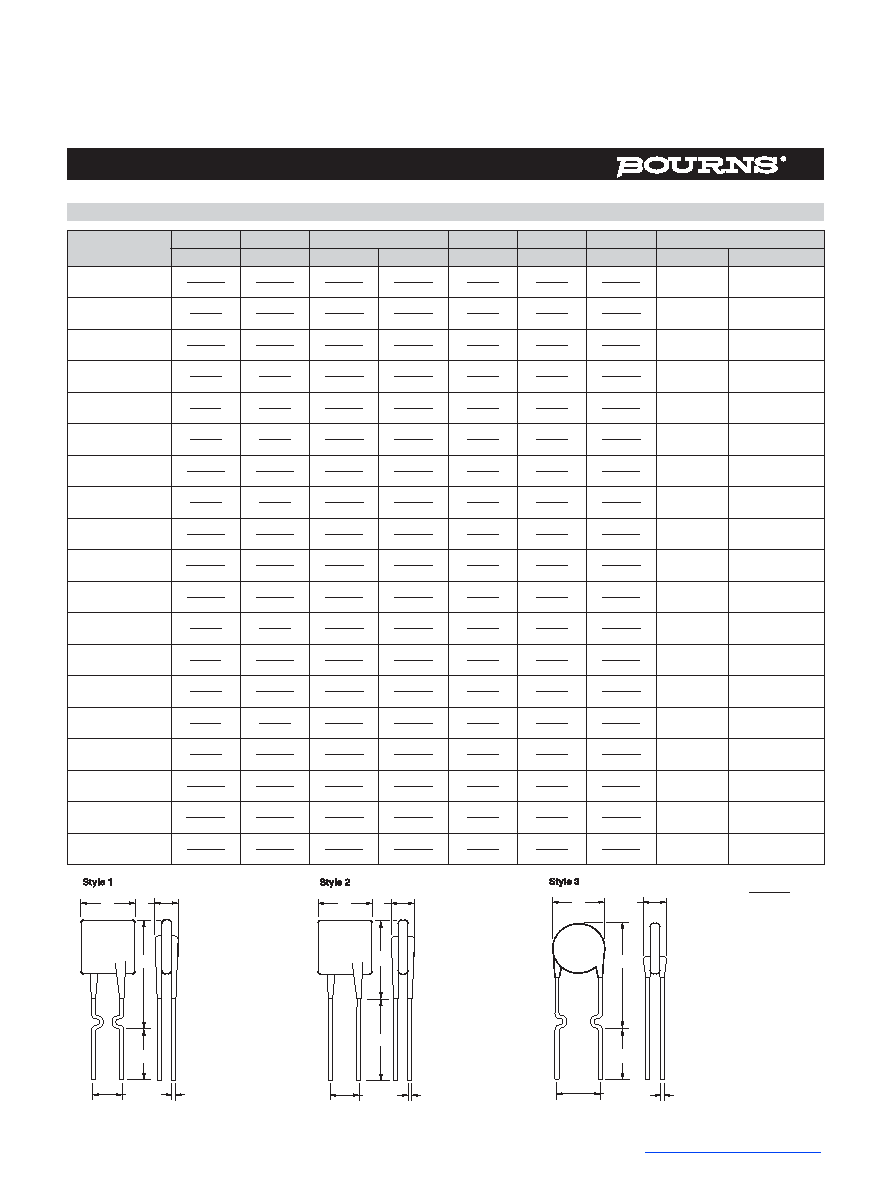

MF-RHT Series - High Temperature PTC Resettable Fuses

Product Dimensions

Model

A

B

C

D

E

F

Physical Characteristics

Max.

Max.

Nom.

Tol. ±

Min.

Max.

Nom.

Style

Material

MF-RHT050

7.40

(0.291)

12.7

(0.500)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.51

(0.020)

3

Sn/CuFe

MF-RHT070

6.86

(0.27)

10.8

(0.425)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.51

(0.020)

1

Sn/CuFe

MF-RHT100

9.70

(0.382)

13.6

(0.535)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.51

(0.020)

3

Sn/CuFe

MF-RHT200

9.4

(0.37)

14.0

(0.55)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.51

(0.020)

3

Sn/CuFe

MF-RHT200/32

9.4

(0.37)

14.0

(0.55)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.51

(0.020)

3

Sn/CuFe

MF-RHT300

8.80

(0.35)

13.8

(0.55)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT400

10.0

(0.394)

15.0

(0.591)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT450

10.4

(0.41)

15.6

(0.61)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT500

11.2

(0.441)

18.9

(0.744)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT550

11.2

(0.441)

18.9

(0.744)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT600

11.2

(0.441)

21.0

(0.827)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT650

12.7

(0.50)

22.2

(0.88)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT700

14.0

(0.55)

21.9

(0.862)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT750

14.0

(0.55)

21.9

(0.862)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT800

16.5

(0.65)

22.5

(0.88)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT900

16.5

(0.65)

25.7

(1.012)

5.1

(0.201)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT1000

17.5

(0.689)

26.7

(1.051)

10.2

(0.402)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT1100

21.0

(0.827)

26.1

(1.028)

10.2

(0.402)

0.7

(0.028)

7.6

(0.30)

3.0

(0.12)

0.81

(0.032)

2

Sn/Cu

MF-RHT1300

23.5

(0.925)

28.7

(1.130)

10.2

(0.402)

0.7

(0.028)

7.6

(0.30)

3.6

(0.14)

1.0

(0.040)

2

Sn/Cu

Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www.bourns.com/docs/legal/disclaimer.pdf.

A

E

B

D

C

E

B

D

A

CF

F

F

A

E

B

D

C

DIMENSIONS:

MM

(INCHES)

A

E

B

D

C

E

B

D

A

CF

F

F

A

E

B

D

C

A

E

B

D

C

E

B

D

A

CF

F

F

A

E

B

D

C

NOTE: Straight lead

option (-17) is also

available, e.g. MF-

RHT070-2-17. (Refer

to “How to Order”

section.)

NOTE: Kinked lead

option (-14) is also

available, e.g. MF-

RHT700-2-14. (Refer

to “How to Order”

section.)

NOTE: Straight lead

option (-17) is also

available, e.g. MF-

RHT200-2-17. (Refer

to “How to Order”

section.)
