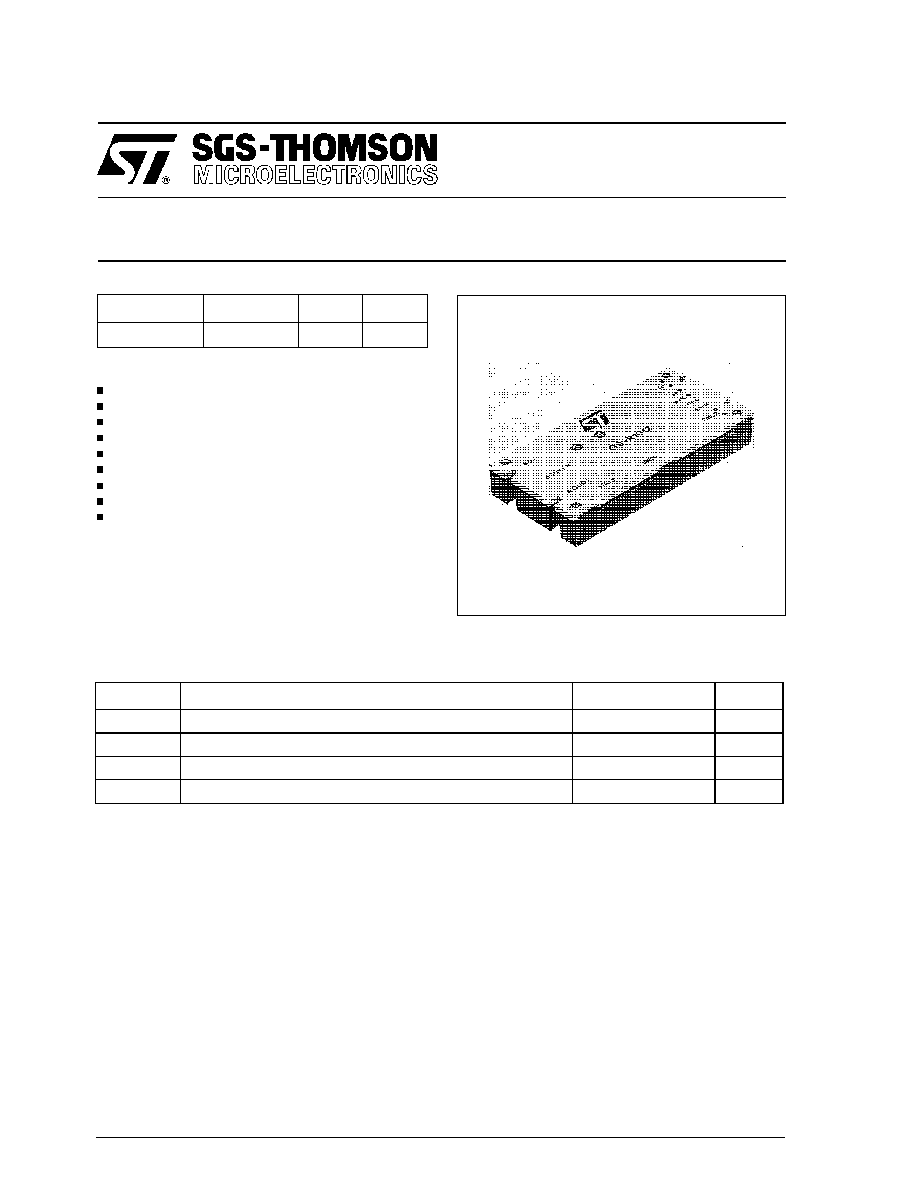

GS-R1012

120W STEP-DOWN SWITCHING REGULATOR

June 1994

1/7

Type

GS-R1012

18 to 36 V

12 V

10 A

FEATURES

Wide input voltage range (18 to 36V)

High efficiency (90% min.)

Parallel operation with current sharing

Synchronization

Remote inhibit/enable

Remote load voltage sense

Output short-circuit protection

Soft-start

PCB or chassis mountable

DESCRIPTION

The GS-R1012 is a step-down switching voltage

regulator suitable to provide 12V/10A output volt-

age from a wide input voltage range (18 to 36V).

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

Vi

DC Input Voltage

40

V

Viinh

High Inhibit voltage

28

V

Tstg

Storage Temperature Range

– 20 to +105

°C

Tcop

Operating Case Temperature Range

0 to +75

°C
