GS-R218

27W SWITCHING REGULATOR

FOR AUTOMOTIVE APPLICATION

June 1994

1/3

Type

GS-R218

10,5 to 16,0 V

18 V

1,5 A

DESCRIPTION

The GS-R218 is a switching voltage regulator that

can deliver an output current of 1,5 A at 18 V when

supplied by a car battery.

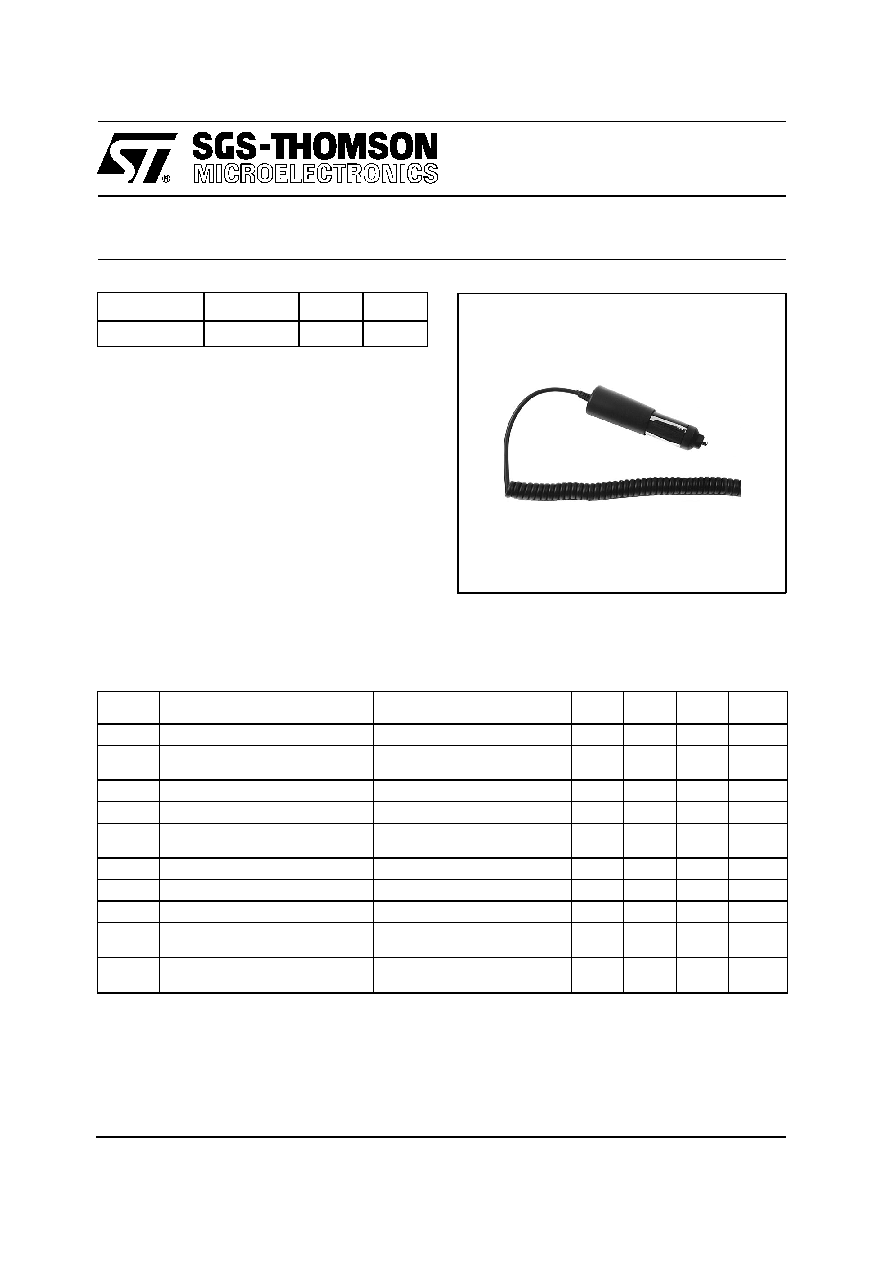

The regulator uses a cigar lighter case with a coiled

cord and it is protected against overloads and short

circuits at the output (latching overload protection:

to restart the regulator after the intervention of the

overload protection, the input voltage must be

switched OFF and ON again).

°C unless otherwise specified)

Symbol

Parameter

Test Conditions

Min

Typ

Max

Unit

Vi

Input Voltage

Vo = 18 V

Io = 0 to 1.5 A

10.5

16

V

liq

Input Quiescent

Current

Vi = 13 V

Io = 0 A

17

mA

Vo

Output Voltage

Vi = 10.5 to 16 V Io = 0 to 1.5A

16.6

18

18.7

V

Io

Output Current

Vi = 10.5 to 16V

0.0

1.5

A

Iol

Output Overload

Current

Vi = 10.5 to 16 V

1.6

A

Vor

Output Ripple Voltage

Vi = 13 V

Io = 1.5A

200

mVpp

η

Efficiency

Vi = 13 V

Io = 1.5A

90

%

fs

Switching Frequency

300

kHz

Top

Operating Ambient

Temperature Range

– 20

+60

°C

Tstg

Storage Temperature

Range

– 20

+85

°C
