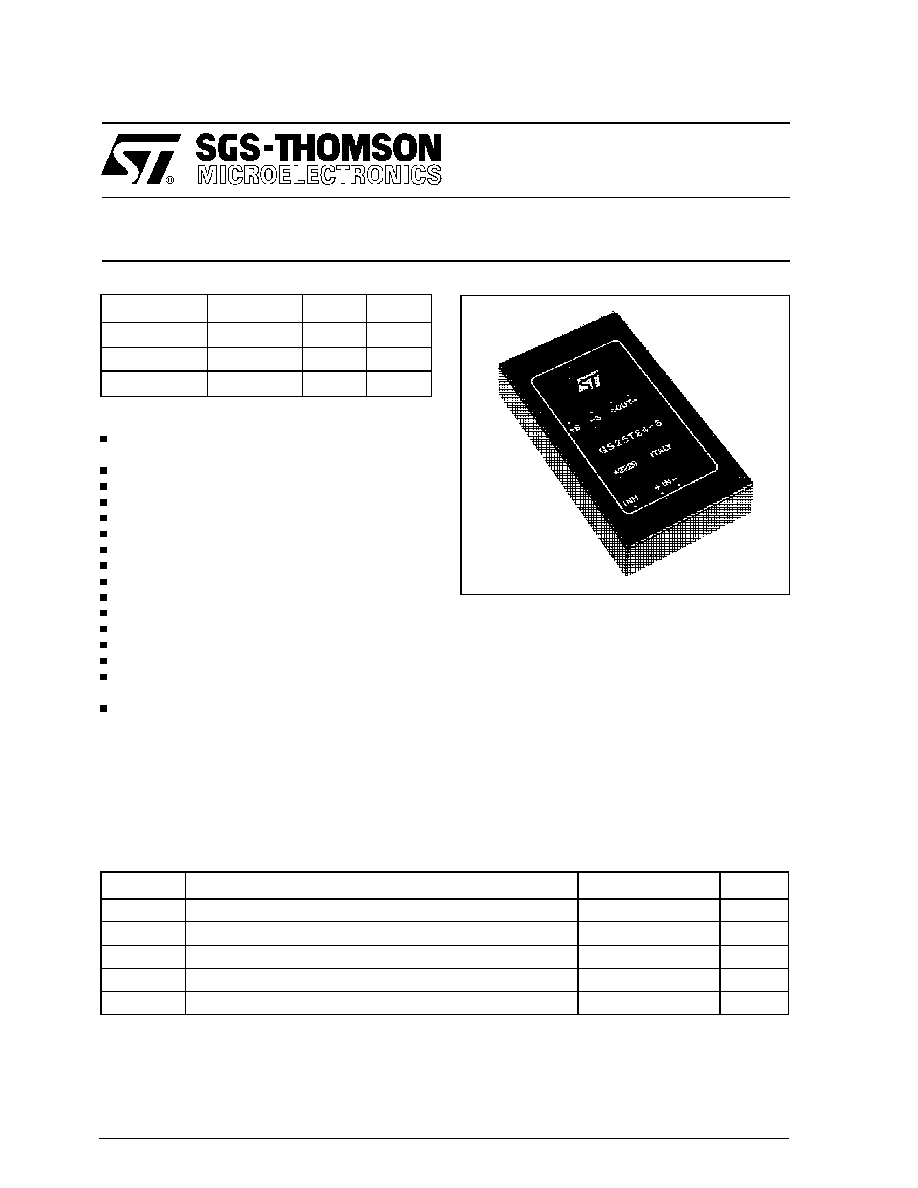

GS25/30T24 Family

25/30 W DC-DC CONVERTER FAMILY

December 1993

1/5

Type

GS25T24-5

18 to 36 V

5 V

5 A

GS30T24-12

18 to 36 V

12 V

2,5 A

GS30T24-15

18 to 36 V

15 V

2 A

FEATURES

MTBF in excess of 1M hours at +45

°C ambient

temperature

Wide input voltage range (18 to 36V)

No external component required

High efficiency (see data)

Non latching permanent short-circuit protection

Overvoltage protection

Redundant operation

Remote output voltage sense

Remote INHIBIT/ENABLE

Soft-start

Minimized reflected input current

Reverse input polarity protection

Peak input overvoltage withstand

No derating over the temperature range

output

PCB or chassis mountable

DESCRIPTION

The GS25T24-5, GS30T24-12 and GS30T24-15

are isolated DC-DC converters designed for gen-

eral purpose application.

The output power is in the range of 25W to 30W.

To ensure very long life, these converters do not

use electrolytic aluminum capacitors or optoelec-

tronic feedback systems.

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

Vi

DC Input Voltage

17 to 38V

V

Vipk

Input Transient Overvoltage (t

≤ 1sec.)

45

V

Vir

Input Reverse Voltage

50

V

Tstg

Storage Temperature Range

-55 to +105

°C

Top

Operating Temperature Range

-25 to +71

°C
